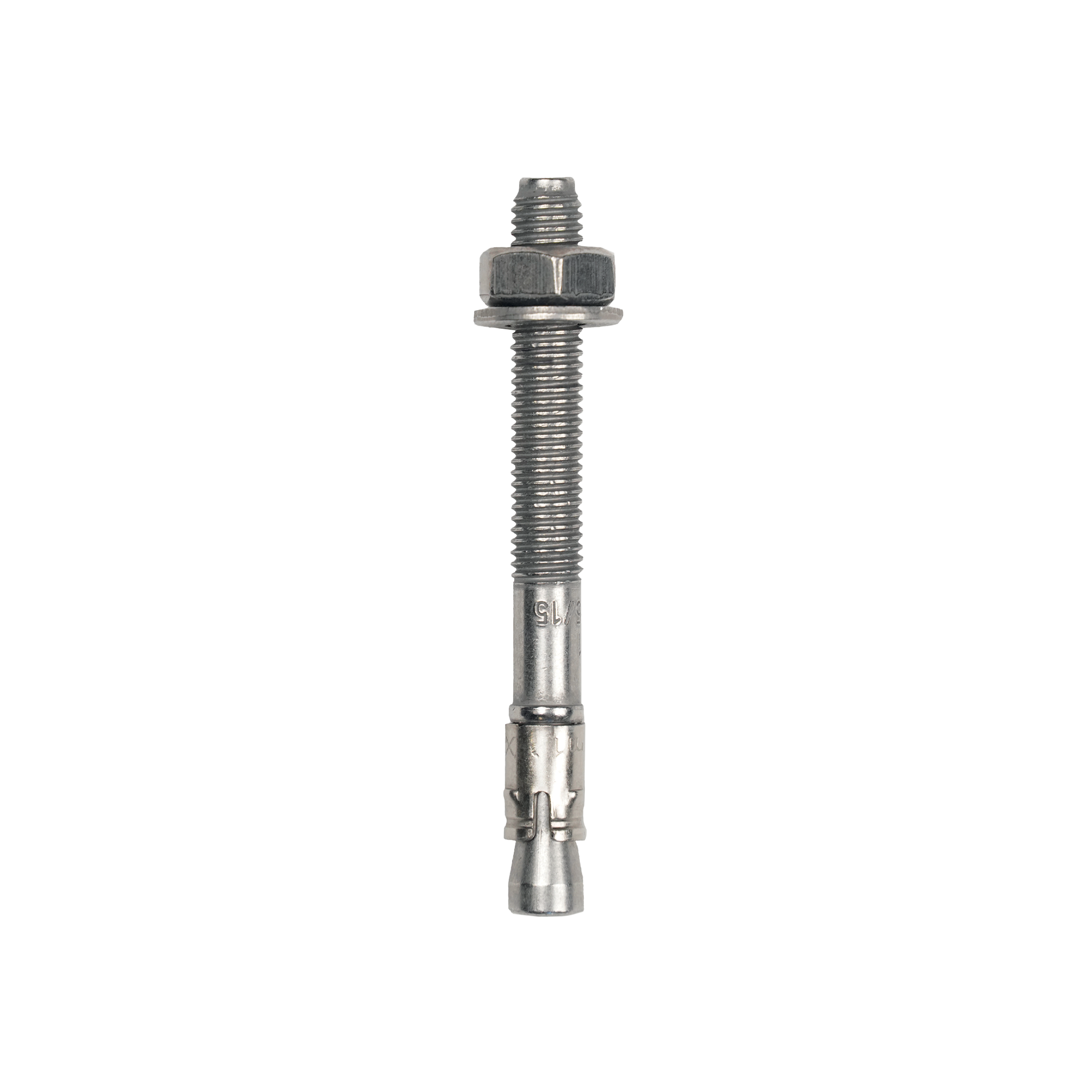

ABE CE1 HEAVY-DUTY EXPANSION ANCHOR: PERFORMANCE AND RELIABILITY
ABE
ABE, is the CE1 expansion anchor designed to meet the highest fastening requirements. With its CE Option 1 certification, ABE is the perfect solution for cracked and non-cracked concrete.
Available in many different diameters and lengths, it adapts to every application.
MAIN FEATURES OF CE1 ABE EXPANSION ANCHOR
The ABE expansion anchor offers a performance class for seismic actions C1 and C2, with options available for sizes M8, M10, M12 and M16.
Tested to withstand 1000 hours of salt spray exposure according to EN ISO 9227:2012, the ABE heavy duty anchor proves its durability even under the most extreme conditions.
ABE boasts R120 fire resistance, ensuring safety and stability in critical situations. Complete with assembled nut and washer, the Rothoblaas expansion anchor simplifies the installation process, providing a complete and reliable solution for your projects.
Suitable for compact materials and through fastening, ABE ensures controlled expansion through torque control, ensuring a secure and long-lasting hold.
Choose ABE for superior performance and reliability in every fastening situation.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
ABE
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| ABE870 | 8 | 70 | SW13 | 100 |
| ABE895 | 8 | 95 | SW13 | 100 |
| ABE8115 | 8 | 115 | SW13 | 100 |
| ABE10110 | 10 | 110 | SW17 | 50 |
| ABE10140 | 10 | 140 | SW17 | 50 |
| ABE12110 | 12 | 110 | SW19 | 50 |
| ABE12125 | 12 | 125 | SW19 | 50 |
| ABE12145 | 12 | 145 | SW19 | 25 |
| ABE12185 | 12 | 185 | SW19 | 50 |
| ABE16145 | 16 | 145 | SW24 | 25 |
