CONNECTOR FOR CONNECTION TO FIXED POINTS
OVAL

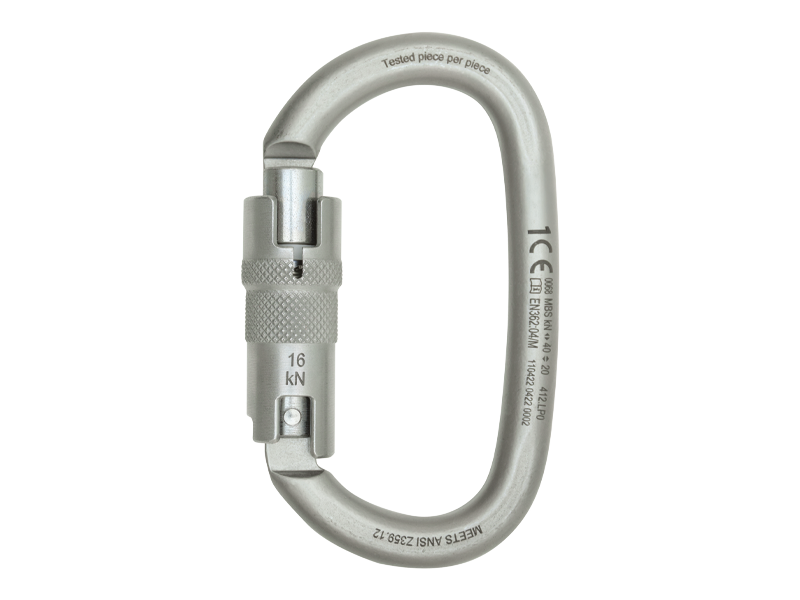

Oval connector with wide opening.
Ideal for severe conditions and for connection to structural anchor points, anchor lines, etc.
ANSI certified high-load connector.
Includes autoblock system.
Documents
Technical data sheets
|
|---|
OVAL
| CODE | description | peso netto
[Kg]
|
pcs. |
|---|---|---|---|
| OVALSTE | ↔ 40 kN ↕ 15 kN | 0.215 | 1 |
| OVALALU | ↔ 26 kN ↕ 9 kN | 0.079 | 1 |
| OVALANS | ↔ 40 kN ↕ 20 kN | 0.22 | 1 |
