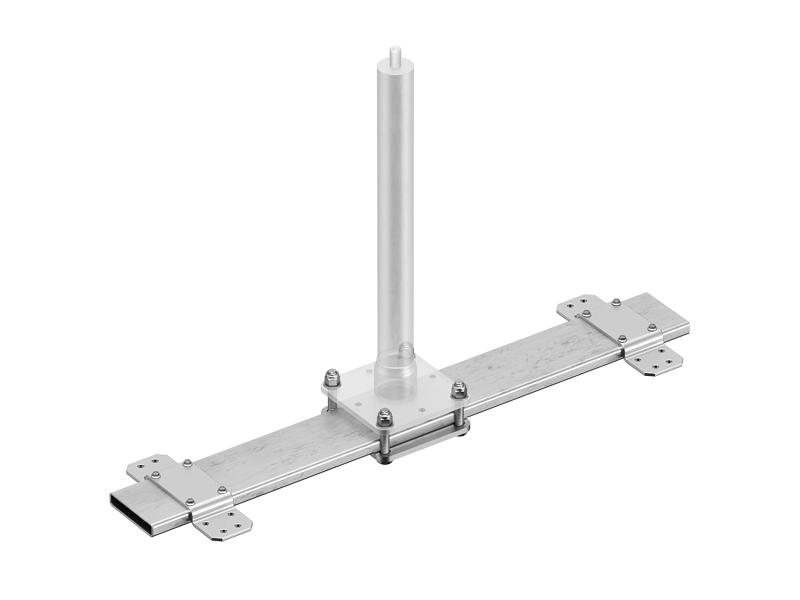

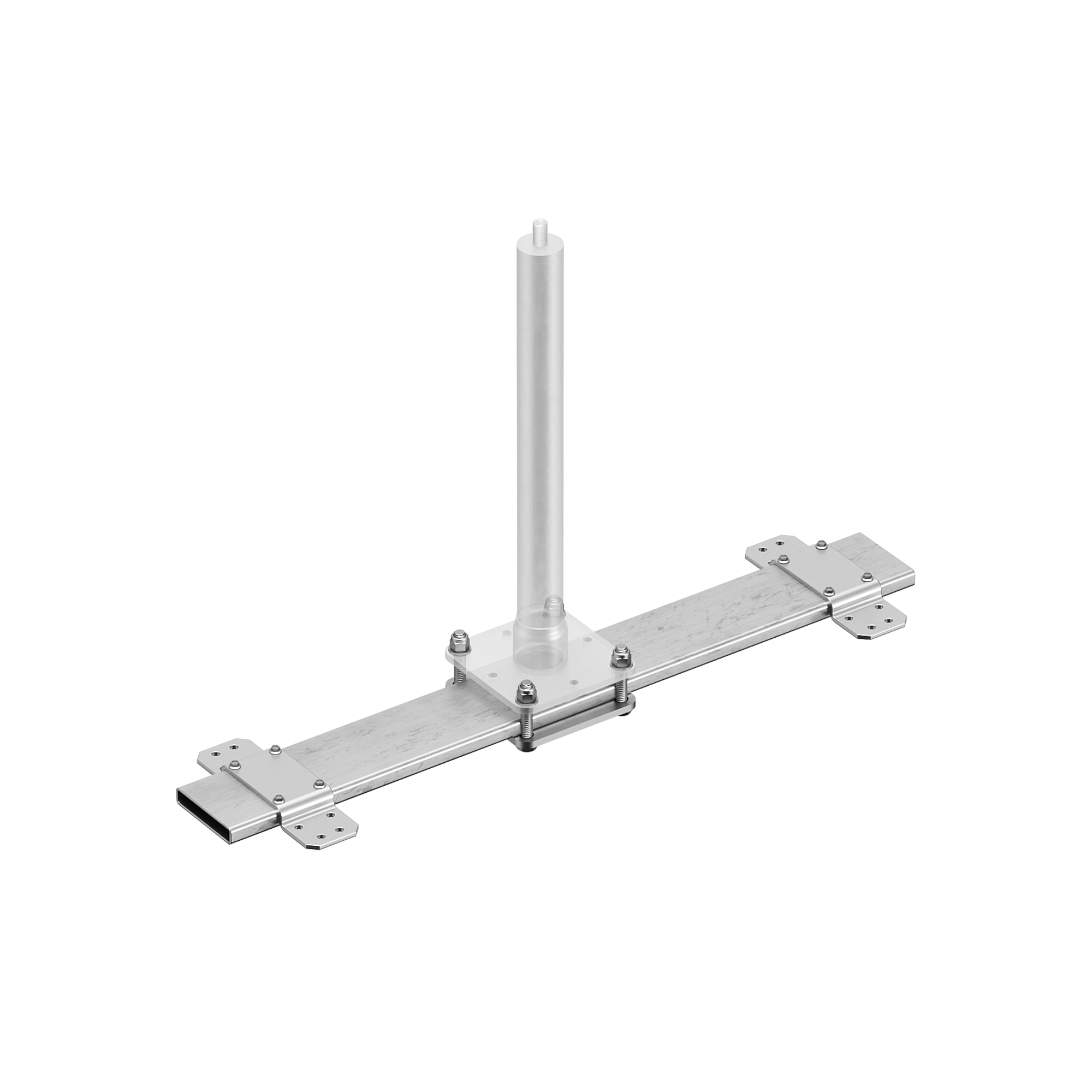

FASTENING GUIDE FOR TOWER ON RAFTER
TOWER SLOPE

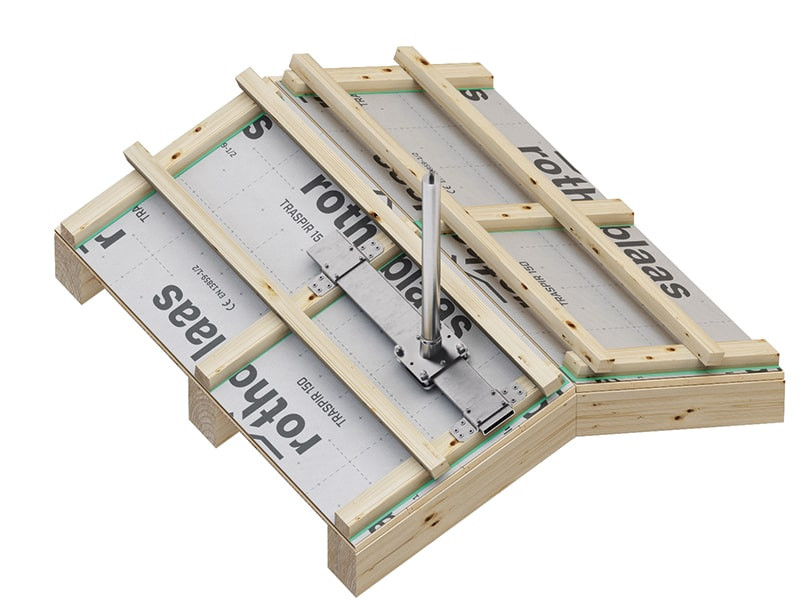

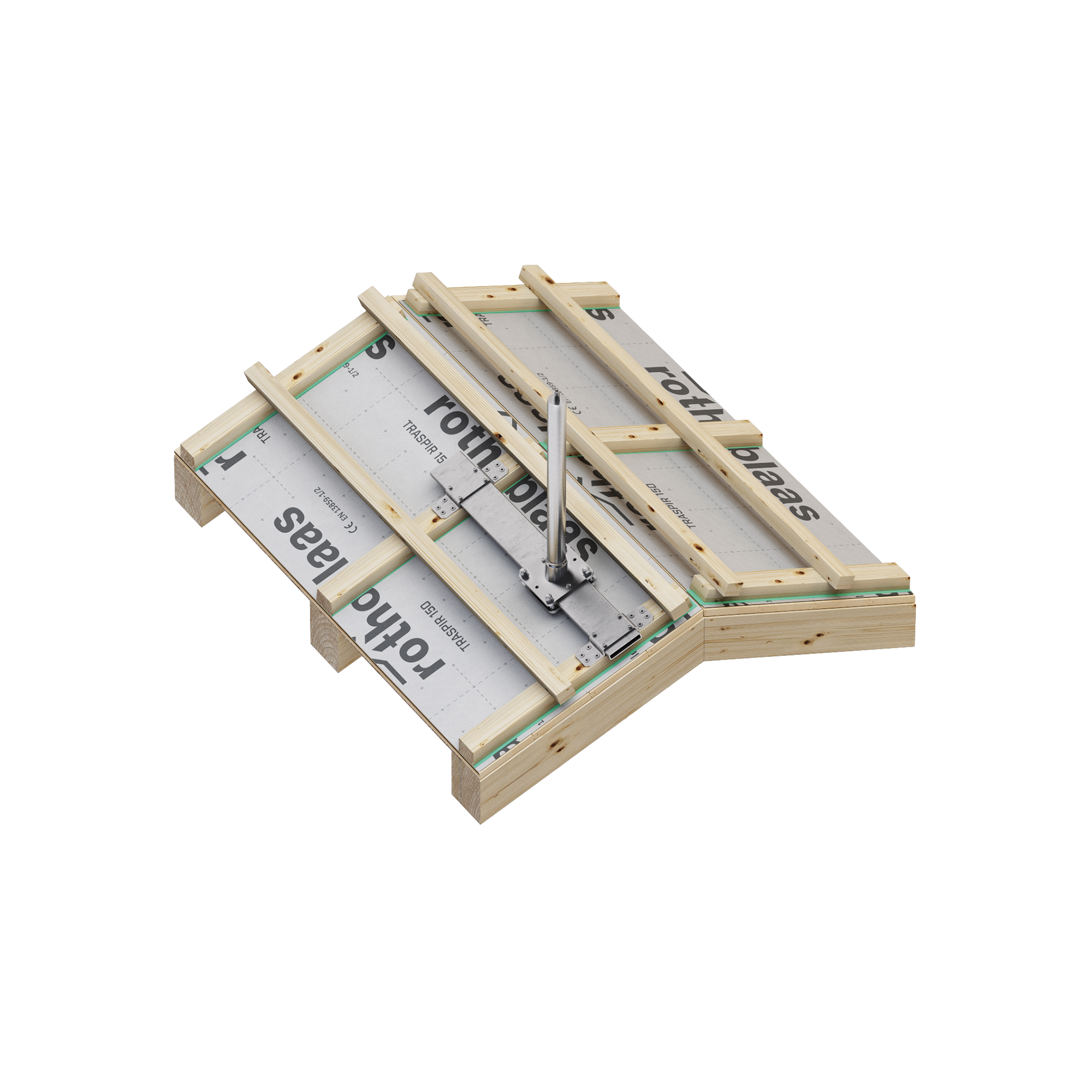

The TOWER SLOPE fastening guide allows the anchor system to be placed in any point on the roof.
Due to the range of action from 50 to 100 cm, it can cover the most common spaces between beams.
Maximum load: 4 users
Documents
Technical data sheets
|
|
|---|---|
Declaration of conformity
|
Installation manual
| Installation manual |
|---|
TOWER SLOPE
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TOWERSLOPE | S235JR zinc-plated steel | 100 | 20 | 1200 | 1 |
