HORIZONTAL FASTENING RAILING
GUARD H
The GUARD H railing is designed for installation on flat structures or floors.
Assembly is quick and easy: the components are interlocked in place or fastened with self-drilling screws, which are included in the supply. The railing is made of aluminium alloy, making it extraordinarily light during installation and transport.
GUARD H, the horizontally fastening railing for flat structures and floors.
Documents
Technical data sheets
|
|---|
Installation manual
| Installation manual |
|---|
HANDRAILS AND INTERMEDIATE RAILS
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
UPRIGHTS
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
TOE BOARD AND ACCESSORIES
| CODE | description | pcs. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBH | support for toe board H = 150 mm | 1 |
STANDARD BASES
| CODE | description | pcs. |
|---|---|---|
| RBGBASEH | bottom plate horizontal fastening painted grey GUARD H with grub screws included | 1 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|

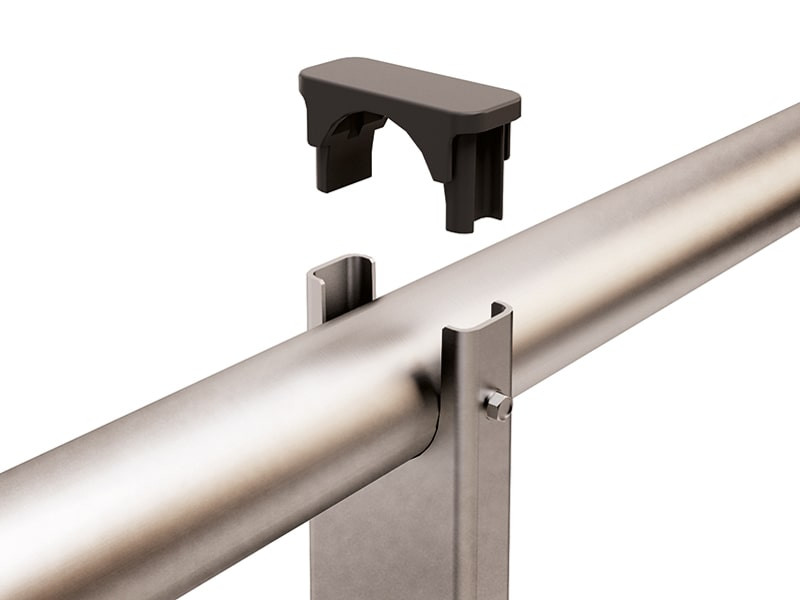

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
FASTENING SCREWS
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
