CAGED LADDERS
LADSTEP

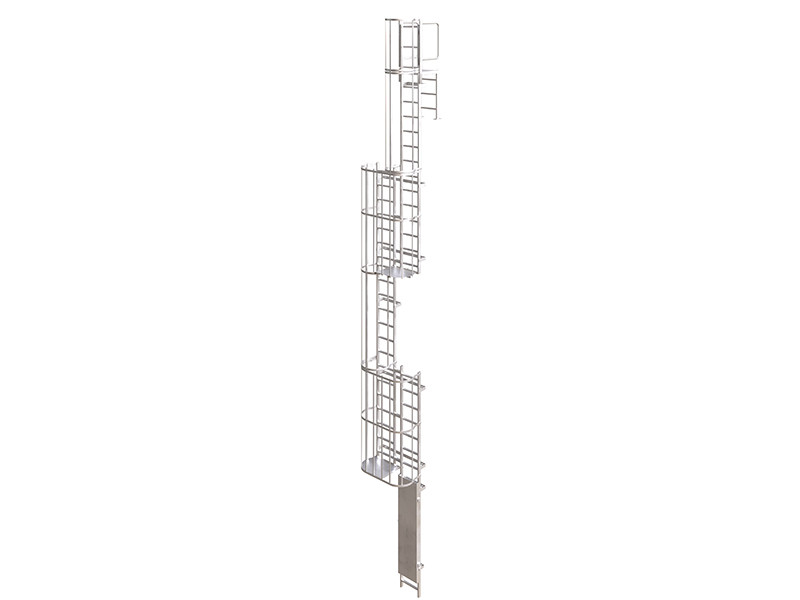

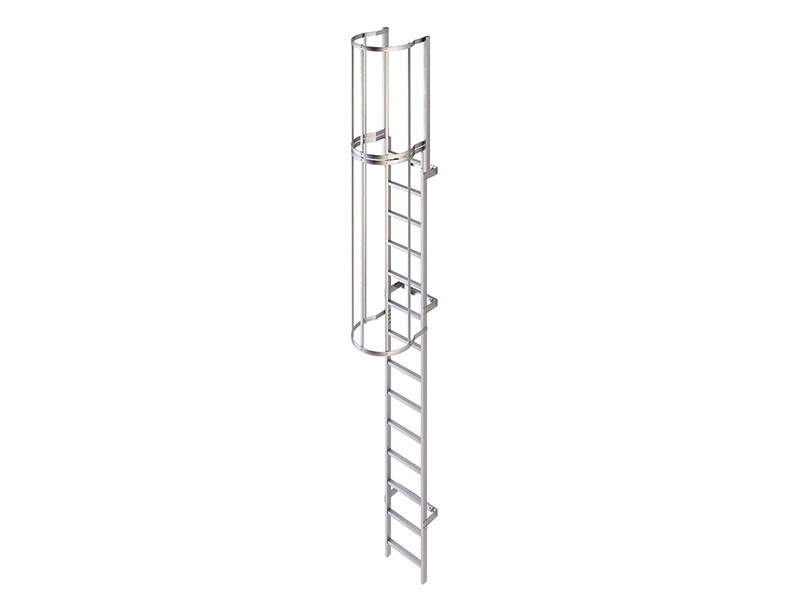

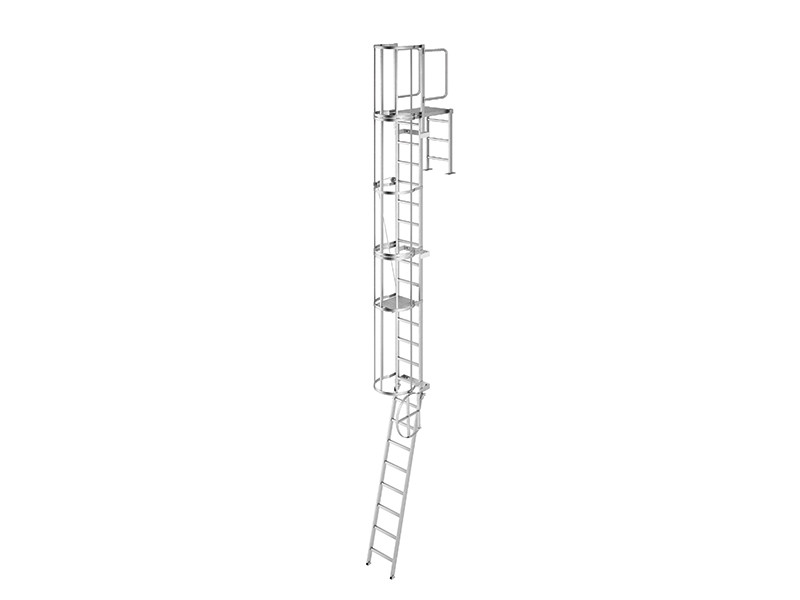

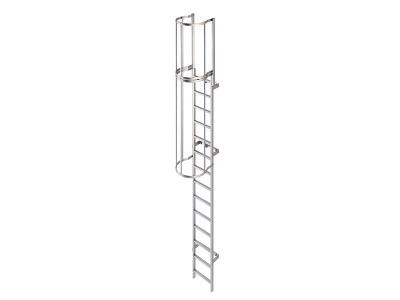

Made with aluminium alloy, the LADSTEP cage ladders offer high mechanical resistance and resist corrosion and weather. Thanks to the wide range of available components, the modular system can meet any design requirement.
LADSTEP, the caged staircase tailored to your needs.
The LADSTEP cage ladders guarantee the utmost safety for the user and give the installer the serenity that comes with a reliable product that is easy to assemble.
Documents
Technical data sheets
|
|
|---|---|
File CAD
|
MODULI SCALA
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADMOD90 | ladder module 0,90 m – 3 steps | 60 | 500 | 900 | 1 |
| LADMOD120 | ladder module 1,20 m - 4 steps | 60 | 500 | 1200 | 1 |
| LADMOD150 | ladder module 1,50 m – 5 steps | 60 | 500 | 1500 | 1 |
| LADMOD180 | ladder module 1,80 m – 6 steps | 60 | 500 | 1800 | 1 |
| LADMOD210 | ladder module 2,10 m – 7 steps | 60 | 500 | 2100 | 1 |
| LADMOD240 | ladder module 2,40 m – 8 steps | 60 | 500 | 2400 | 1 |
ASTE PER GABBIA
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADBAR90 | kit of 5 cage bars 0,90 m | 15 | 25 | 900 | 5 |
| LADBAR120 | kit of 5 cage bars 1,20 m | 15 | 25 | 1200 | 5 |
| LADBAR150 | kit of 5 cage bars 1,50 m | 15 | 25 | 1500 | 5 |
| LADBAR180 | kit of 5 cage bars 1,80 m | 15 | 25 | 1800 | 5 |
| LADBAR210 | kit of 5 cage bars 2,10 m | 15 | 25 | 2100 | 5 |
| LADBAR240 | kit of 5 cage bars 2,40 m | 15 | 25 | 2400 | 5 |
ANELLI
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADRINGIT | cage ring Leg. Decree 81/2008 | 662 | 600 | 40 | 1 |
| LADRINGEU | cage ring EN 14122 | 762 | 700 | 40 | 1 |
PROTEZIONE FINALE
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADEXT130 | Extension 1,30 m | 60 | 30 | 1300 | 1 |
| LADEXTMOB130 | interlocking extension 1,30 m fir easy access to the roof | - | - | - | 2 |
STAFFE
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADBRA150 | bracket for wall spacing 150 mm | 210 | 512 | 60 | 1 |
| LADBRA200 | bracket for wall spacing 200 mm | 260 | 512 | 60 | 1 |
| LADBRA250 | bracket for wall spacing 250 mm | 310 | 512 | 60 | 1 |
| LADBRA300 | bracket for wall spacing 300 mm | 360 | 512 | 60 | 1 |
| LADBRA350 | bracket for wall spacing 350 mm | 410 | 512 | 60 | 1 |
| LADBRA400 | bracket for wall spacing 400 mm + clearance with screws included | 460 | 512 | 60 | 1 |
| LADSTRAP400 | bracket for wall spacing 400 mm + clearance with screws included | 460 | 512 | 60 | 1 |
| LADBRA450 | bracket for wall spacing 450 mm + clearance with screws included | 510 | 512 | 60 | 1 |
| LADSTRAP450 | bracket for wall spacing 450 mm + clearance with screws included | 510 | 512 | 60 | 1 |
| LADBRA500 | bracket for wall spacing 500 mm + clearance with screws included | 560 | 512 | 60 | 1 |
| LADSTRAP500 | bracket for wall spacing 500 mm + clearance with screws included | 560 | 512 | 60 | 1 |
| LADBRA550 | bracket for wall spacing 550 mm + clearance with screws included | 610 | 512 | 60 | 1 |
| LADSTRAP550 | bracket for wall spacing 550 mm + clearance with screws included | 610 | 512 | 60 | 1 |
| LADBRA600 | bracket for wall spacing 600 mm + clearance with screws included | 660 | 512 | 60 | 1 |
| LADSTRAP600 | bracket for wall spacing 600 mm + clearance with screws included | 660 | 512 | 60 | 1 |
| LADBRAMET | fastening kit for bracket on metal sheet – rivets diameter for fastening 4,8 mm – rivets not included | - | 520 | 210 | 1 |
GIUNZIONI
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADJUN | ladder joint | 55 | 25 | 150 | 1 |
TAPPI
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LADMODCAP | cap for upper upright closure | 60 | 30 | 20 | 1 |
| LADBARCAP | cap for bar closure | 15 | 25 | 15 | 1 |
TARGHETTA
| CODE | description | L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| LADPLATEIT | label Leg. Decree 81/2008 + IT manual | - | 50 | 1 |
| LADPLATEEU | label EN 14122-4+ EN manual | - | 50 | 1 |
FISSAGGI
| CODE | description | pcs. |
|---|---|---|
| MMSA26319 | stainless steel screw DIN 7504 A2 K 6,3 mm x 19 mm | 50 |
| MMSA26325 | stainless steel screw DIN 7504 A2 K 6,3 mm x 25 mm | 50 |
MODULO SCALA SDOPPIAMENTO
| CODE | description | pcs. |
|---|---|---|
| LADDOULAD | double ladder for splitting 2100 mm | 1 |
ASTE PER GABBIA SDOPPIAMENTO
| CODE | description | pcs. |
|---|---|---|
| LADDOUBAR | kit of 8 splitting rods | 1 |
ANELLI PER SDOPPIAMENTO
| CODE | description | pcs. |
|---|---|---|
| LADDOURINGIT | splitting rod Legislative Decree 81/2008 | 1 |
| LADDOURINGEU | splitting rod EN 14122 | 1 |
STAFFE SDOPPIAMENTO
| CODE | description | pcs. |
|---|---|---|
| LADDOUBRA150 | bracket for double ladder wall distance 150 mm | 1 |
| LADDOUBRA300 | bracket for double ladder wall distance 300 mm | 1 |
PEDANE SDOPPIAMENTO
| CODE | description | pcs. |
|---|---|---|
| LADDOUBORIT | right-hand platform Legislative Decree 81/2008 | 1 |
| LADDOUBOREU | right-hand platform EN 14122 | 1 |
| LADDOUBOLIT | left-hand platform Legislative Decree 81/2008 | 1 |
| LADDOUBOLEU | left-hand platform EN 14122 | 1 |
MANIGLIONI
| CODE | description | pcs. |
|---|---|---|
| LADHANDS | kit of 2 lading handles 450 mm | 2 |
PROLUNGA AD INCASTRO
| CODE | description | pcs. |
|---|---|---|
| LADEXTMOB130 | interlocking extension 1,30 m fir easy access to the roof | 2 |
PEDANE DI SBARCO
| CODE | description | pcs. |
|---|---|---|
| LADLAND500 | 500 x 500 mm final landing platform, non – slip | 1 |
| LADLAND750 | 500 x 750 mm final landing platform, non – slip | 1 |
KIT PROTEZIONE
| CODE | description | pcs. |
|---|---|---|
| LADPROT750 | 750 mm platform protection kit complete with 4 handrails, 2 aluminium toeboards | 1 |
GRADINI DI USCITA
| CODE | description | pcs. |
|---|---|---|
| LADEXSTEP150 | safety exit, wall disance 150 mm, (fasteners included) | 1 |
| LADEXSTEP200 | safety exit, wall disance 200 mm, (fasteners included) | 1 |
| LADEXSTEP250 | safety exit, wall disance 250 mm, (fasteners included) | 1 |
PEDANE RIBALTABILI
| CODE | description | pcs. |
|---|---|---|
| LADBOARIT | folding or resting platform for ladder sub-division (with lifting and lowering system) Leg. Decree81/2008 | 1 |
| LADBOAREU | folding or resting platform for ladder sub-division (with lifting and lowering system) EN 14122-4 | 1 |
| LADREST | folding resting platform for ladder with lifeline | 1 |
CHIUSURE DI SICUREZZA
| CODE | description | pcs. |
|---|---|---|
| LADTRAPIT | safety closure prepared for padlock (not included) Leg.Decree 81/2008 | 1 |
| LADTRAPEU | safety closure prepared for padlock (not included) EN 14122-4 | 1 |
GANCI PER SCALA SEPARATA
| CODE | description | pcs. |
|---|---|---|
| LADHOOK | fastening hooks for separate ladder | 2 |
PIEDINI
| CODE | description | pcs. |
|---|---|---|
| LADFEREG | kit of 2 adjustable support feets wit holes for fastening to the ground | 2 |
| LADFEHIN | kit of 2 hinged support feets | 2 |
PORTA ANTINTRUSIONE
| CODE | description | pcs. |
|---|---|---|
| LADCARPRO | Anti-instrusion metal sheet door prepared for padlocking (padlock not included) | 1 |
| LADCARPRODIST | set of 4 spacers for anti-instrusion door 65 mm | 1 |
CANCELLETTO
| CODE | description | pcs. |
|---|---|---|
| LADGATE | exit gate for fixed ladder | 1 |
