ANCHOR POINT FOR SMALL STRUCTURES
SLIM

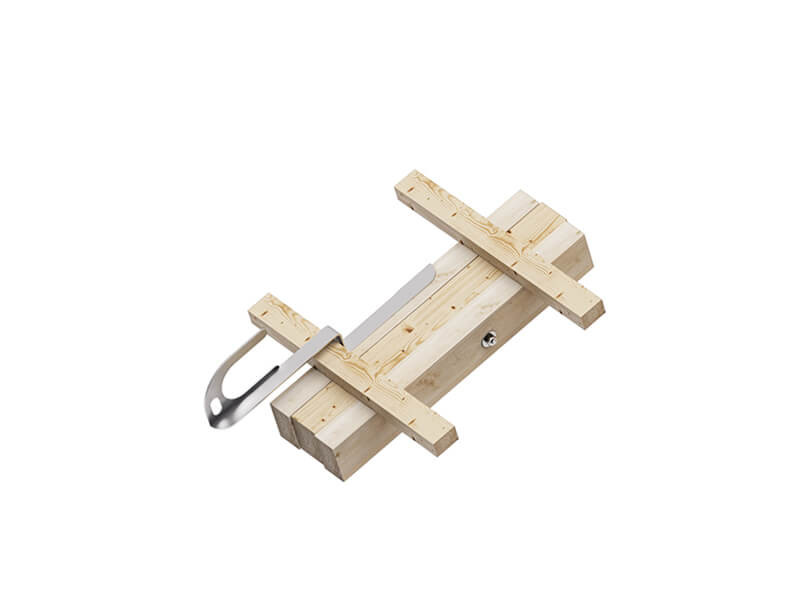

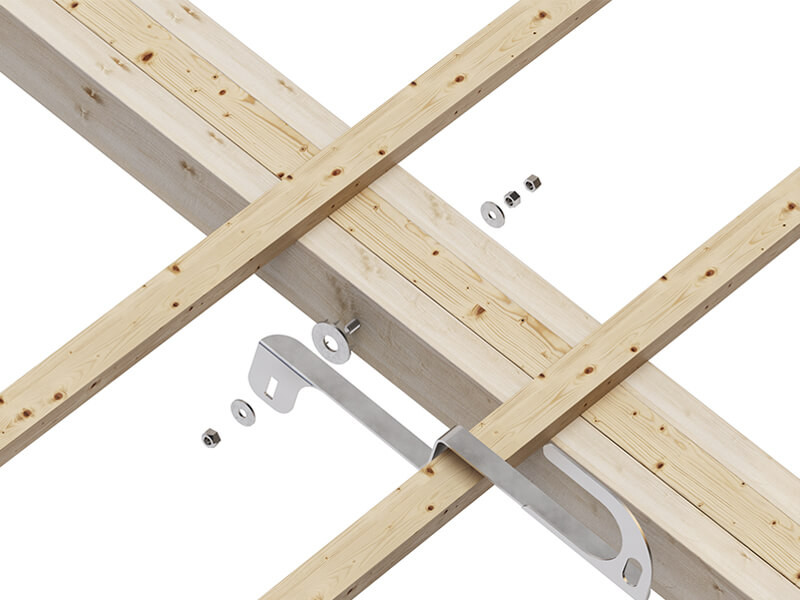

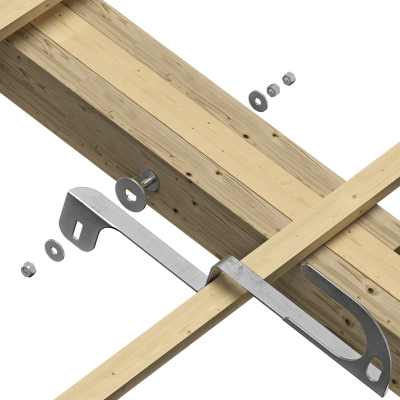

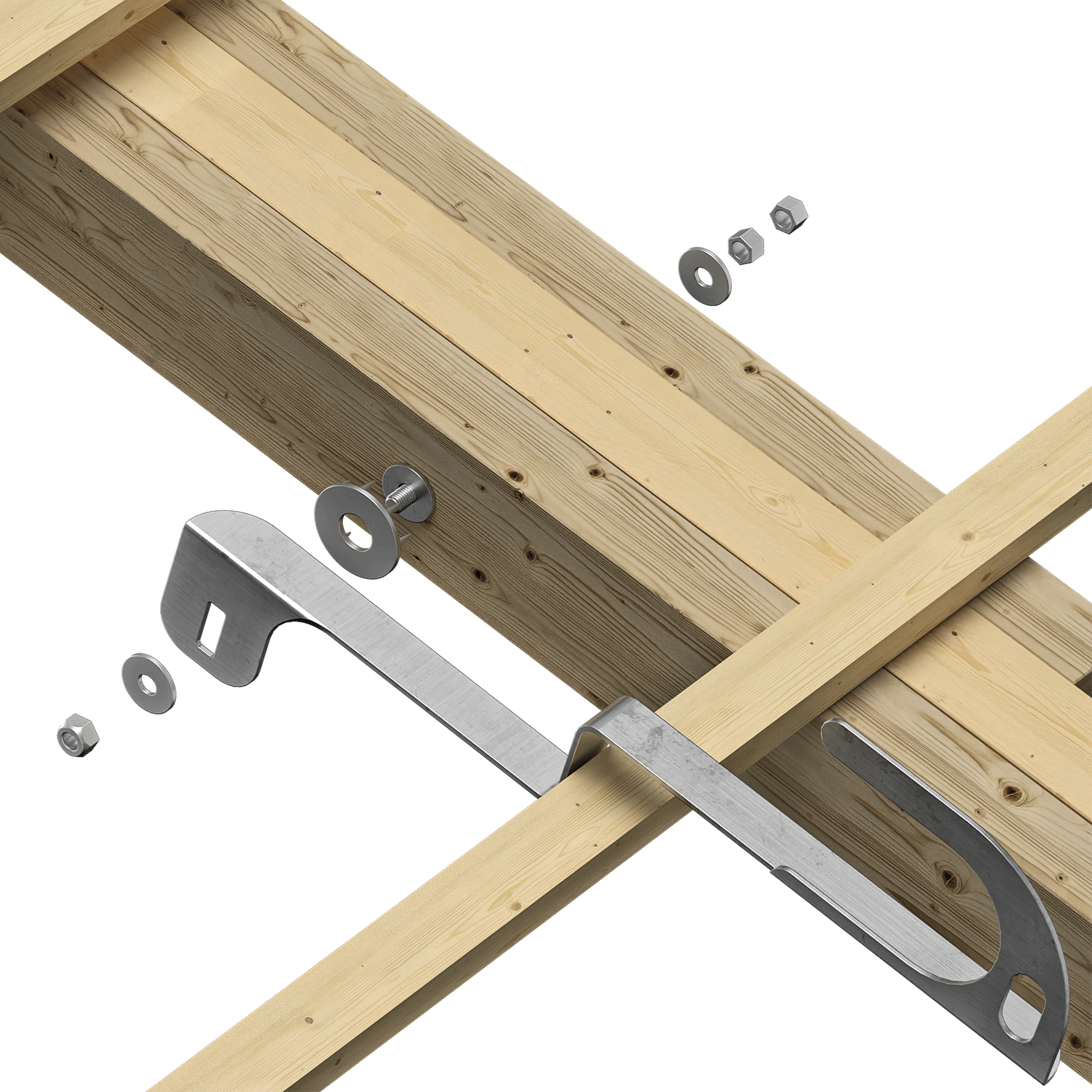

The SLIM anchor point is the ideal solution for installation on small timber beams, starting from a minimum of 36 x 68 mm up to unlimited widths. Made of stainless steel, it can be used on inclined roofs, both as a single point and as a hook for ladders.
Discover SLIM, the great anchor point dedicated to smaller timber structures.

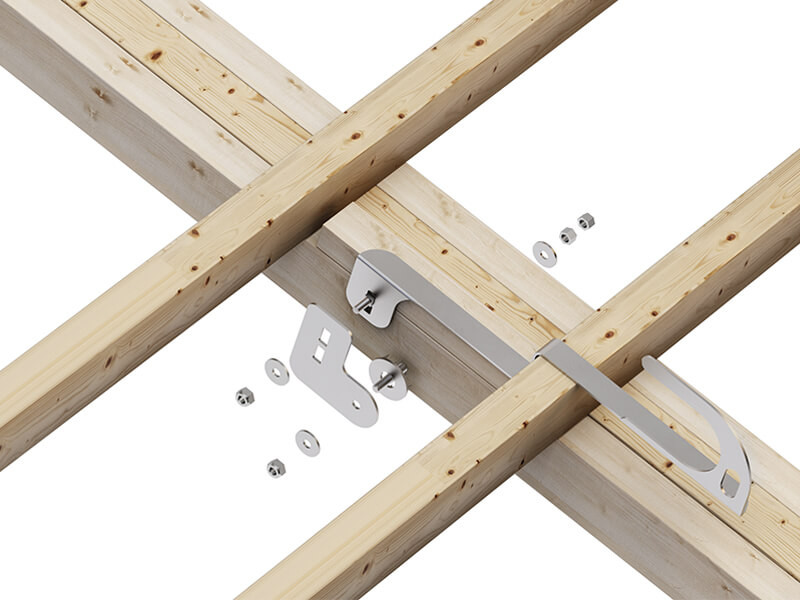

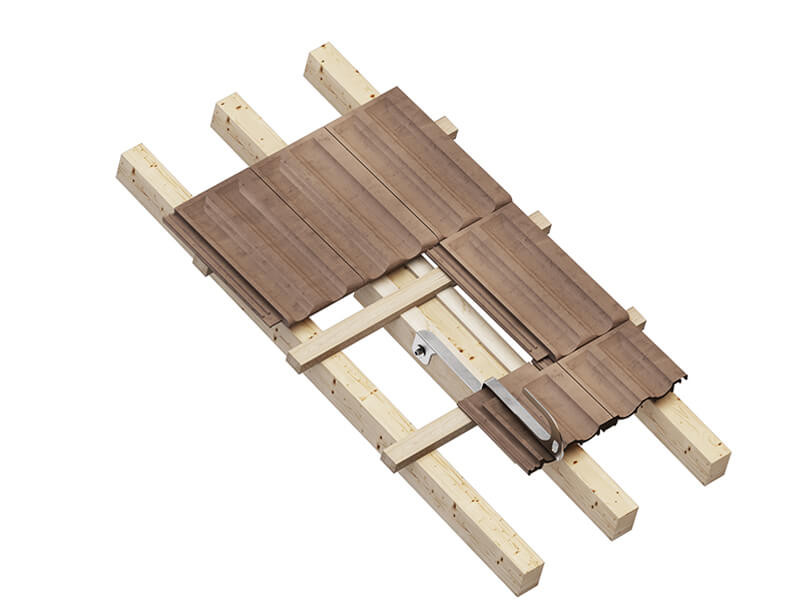

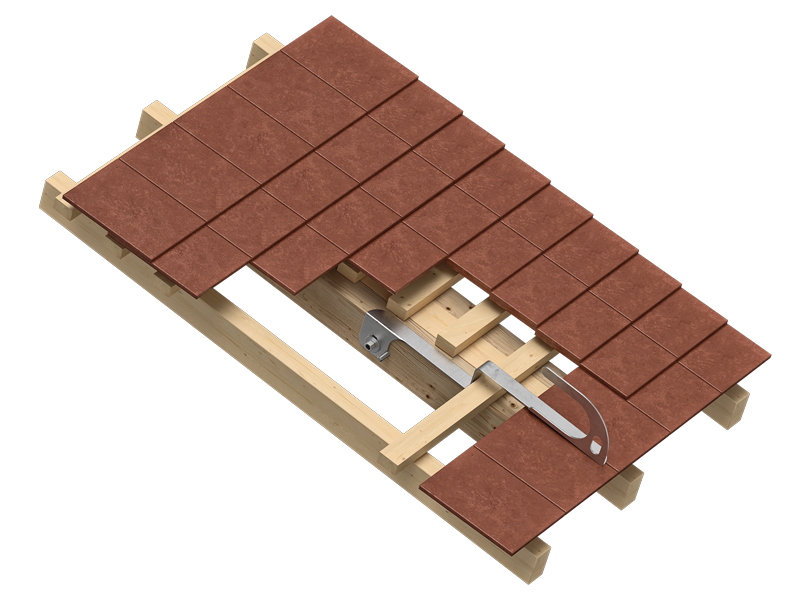

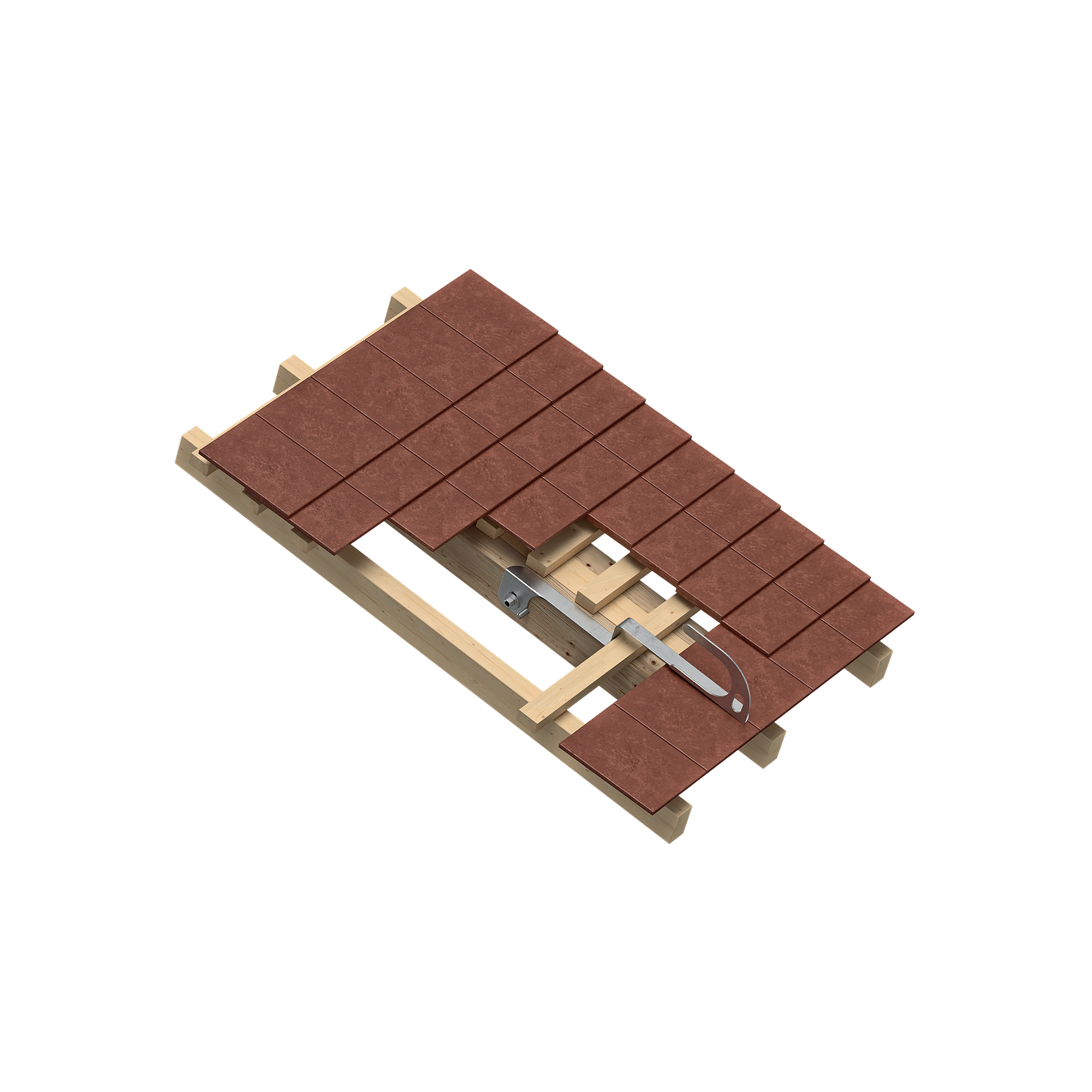

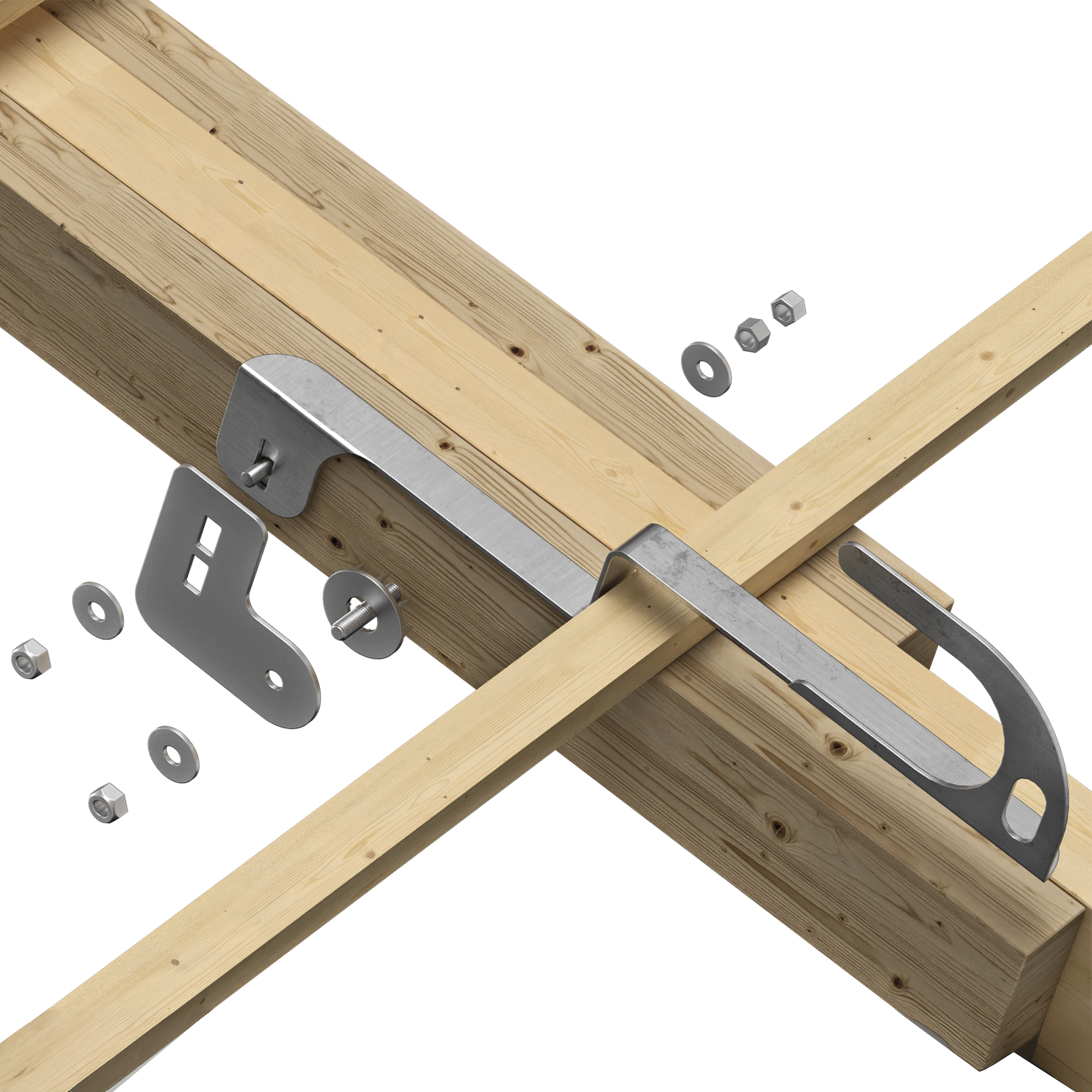

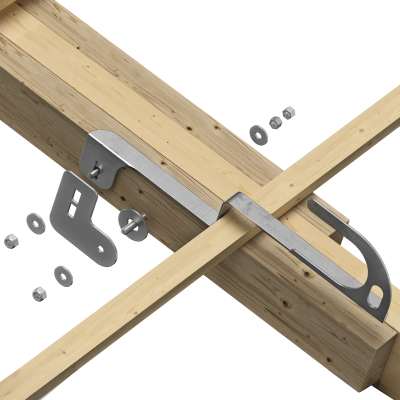

SLIM is the anchor point that guarantees safety at work on sloping timber roofs. Thanks to the the BEFSLIM2 adaptor, the SLIM device can also be installed on substructures with offsetting of 60 to 140 mm between the element to which it is fastened and the roof exit point.
Once installed, it can also be used as a hook for ladders, to prevent the mobile ladder from shifting and sliding, ensuring the operator’s safe access to the roof. Maximum load: 1 user
Features
| Application | SINGLE POINT |
|---|---|
| Substructure | TIMBER |
| Field of use | MIN. TIMBER STRUCTURE 114MM (38 + 38 + 38) x 68MM |
| Number of workers | 1 |
| Material | STAINLESS STEEL 1.4016 / AISI430 |
Documents
Technical data sheets
|
|
|---|---|
Declaration of performance (DOP)
|
|
Declaration of conformity
|
|
Safety regulations, instructions for installation and use
|
|
Declaration of Installation and inspection
|
Installation manual
| Installation manual |
|---|
SLIM
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| SLIM | stainless steel 1.4016 – AISI430 | 30 | 173 | 500 | 5 |
