ANCHOR POINT
LOOP

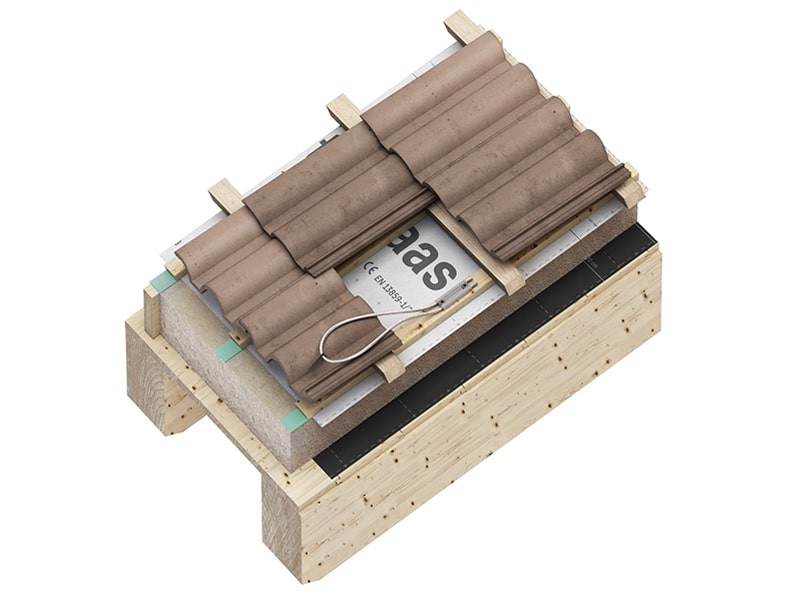

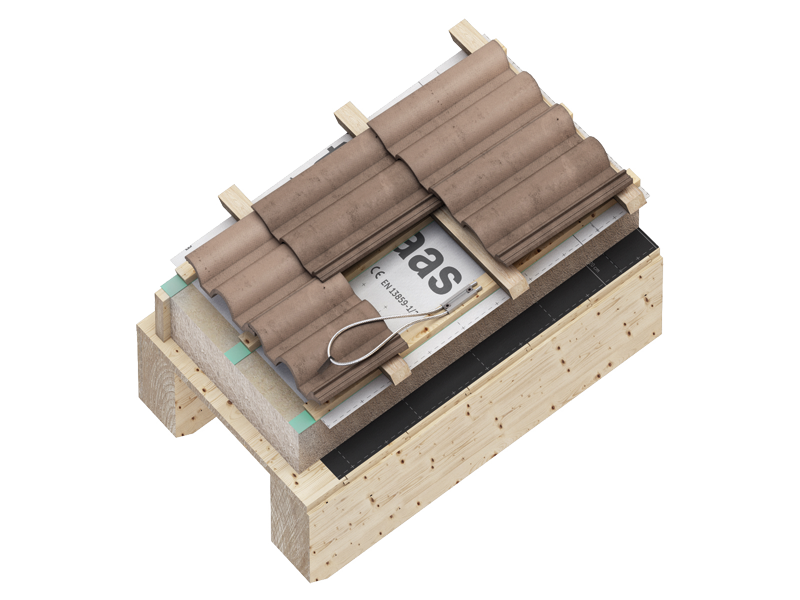

The LOOP and LOOP XL anchor points are the ideal system for installation on roofs in historic centres: extremely discreet, they are practically invisible once installed. Suitable for timber, concrete and masonry structures, they can be installed simply and quickly.
LOOP and LOOP XL, the anchor points that guarantee safety at work on roofs while respecting the architecture of old town centres.

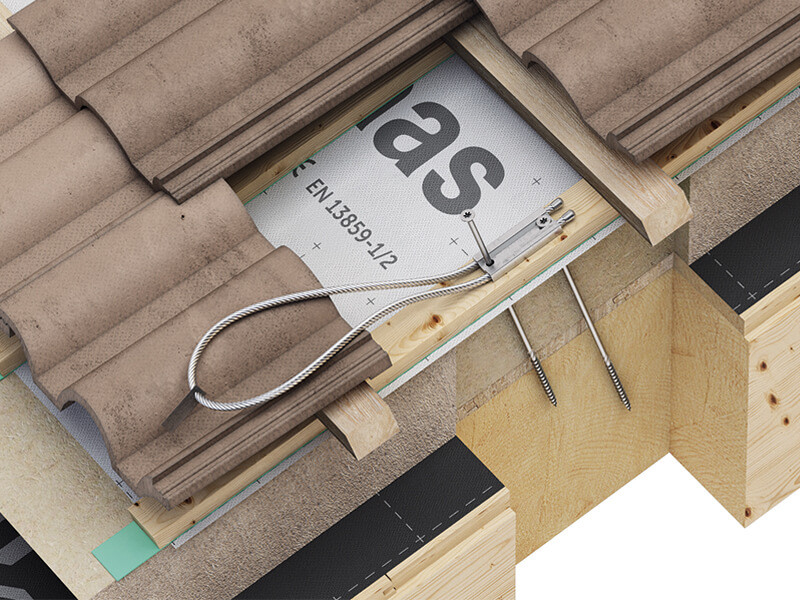

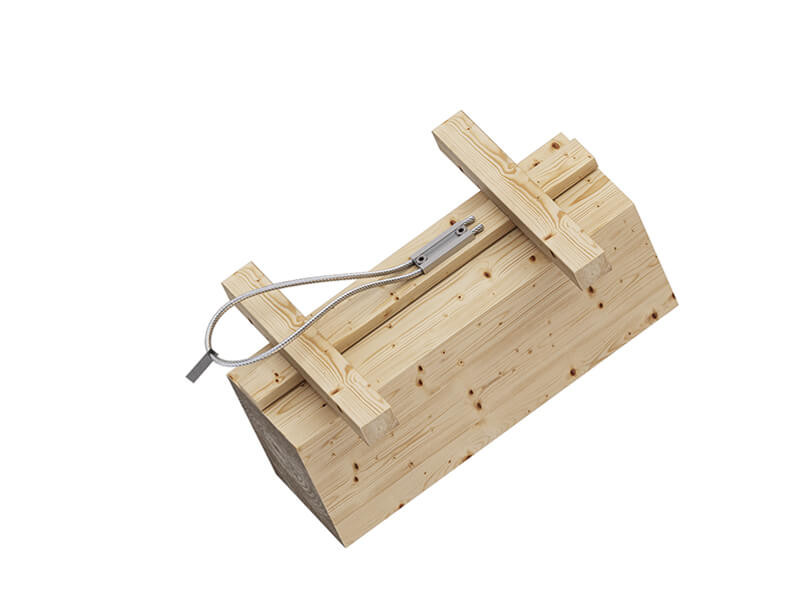

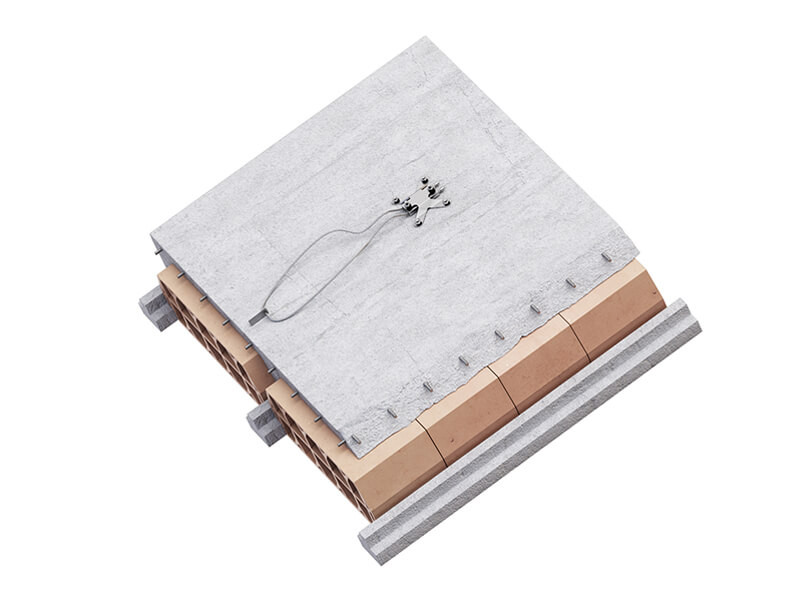

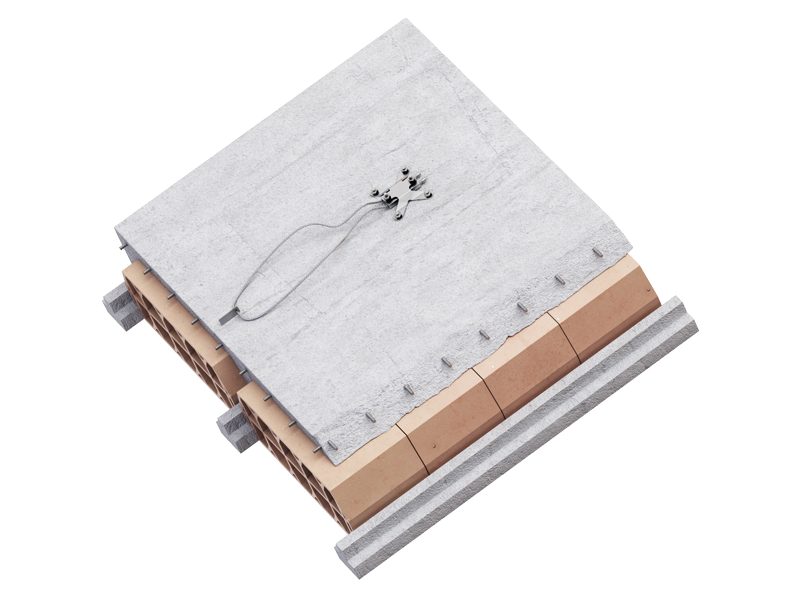

LOOP and LOOP XL are extremely discreet anchor points from the aesthetic point of view, the ideal solution for the roofs of historic centres typical of European urban settings. Suitable for timber and concrete structures, thanks to the KRAKEN device they can also be installed on masonry structures with a concrete slab of at least 40 mm. The installation requires only two screws and can be completed quickly.
Maximum load: 1 user
Documents
Technical data sheets
|
|
|---|---|
Declaration of conformity
|
|
Safety regulations, instructions for installation and use
|
|
Declaration of Installation and inspection
|
|
Test report summary
|
|
Installation manual (KRAKEN)
|
Installation manual
| Installation manual |
|---|
LOOP
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| LOOP | AISI 316 stainless steel grade 1.4401 / EN AW 6060 T6 | - | 12 | 456 | 1 |
| LOOPXL | AISI 316 stainless steel grade 1.4401 / EN AW 6060 T6 | - | 12 | 756 | 1 |

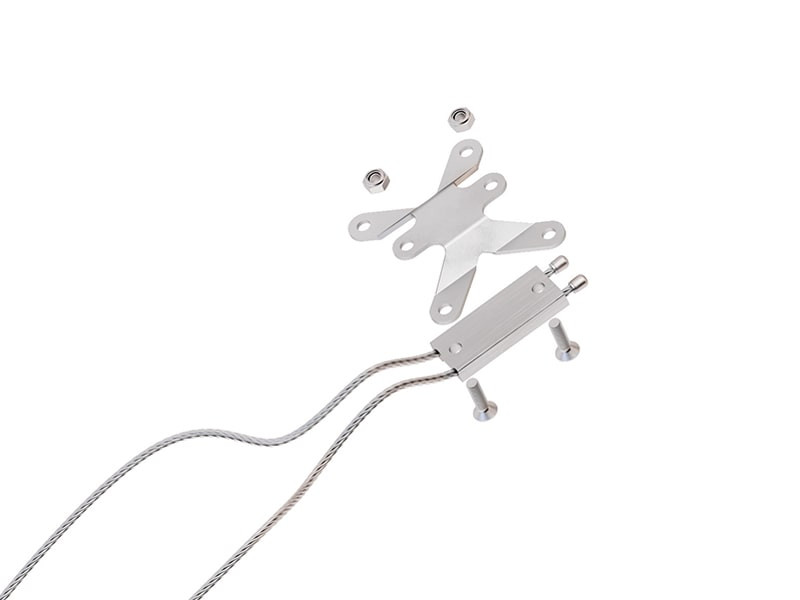

| KRAKEN | AISI 430 stainless steel grade 1.4016 IIA | 100 | 18 | 116 | 1 |
