ANCHOR POINT FOR WORK AT HEIGHT
AOSWS

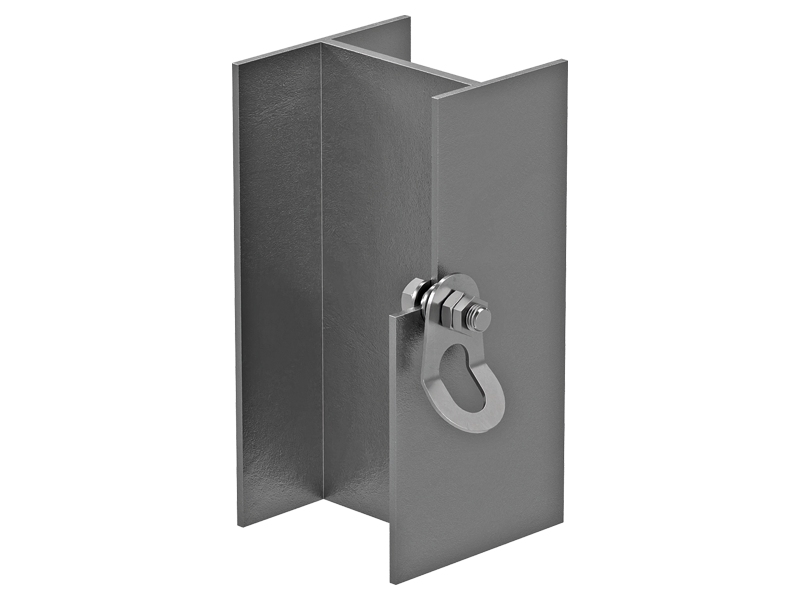

The AOSWS anchor point is universal, functional and versatile, and can be used both for safety rope in suspension work and for anchoring in fall protection, up to three users at the same time. It is certified for use on different types of substructure and with different types of substructure and with different types of fasteners.
An anchor point for all needs
If you are seeking an advanced solution for safety at height, Rothoblaas' AOSWS is the answer to your needs. This innovative anchor system offers the perfect combination of safety, reliability and compact design, providing maximum protection for anyone working at height. Available in A2 1.4301 / AISI 304 stainless steel (code AOSWS) and A4 1.4401 / AISI 316 stainless steel (code AOSWSA4).
Compact and robust anchoring systems
AOSWS has been designed with a focus on compactness, which allows installation in limited space without compromising the system strength and durability.
Type A anchor system with high-quality materials
Manufactured in two versions of high-quality stainless steel to fulfil a dual anti-corrosion requirement, AOSWS is weatherproof and offers exceptional durability even in the harshest environmental conditions.
Fall arrest anchorage points in compliance with regulations
While observing national and international safety regulations, AOSWS is designed and tested to ensure fall prevention safety for operators working at height.
Easy installation
The AOSWS anchor point is installed quickly and easily, reducing the time needed to secure the work site. Step by step instructions included enable proper installation, ensuring maximum safety.
Versatile use
Because of its flexible design, AOSWS is suitable for a wide range of applications, ensuring safety and reliability in many different work settings.
In summary
Rothoblaas' AOSWS is the ideal choice for anyone searching for a compact, reliable and safety-compliant solution for working at height. A small investment in safety for a big result in confidence and working peace of mind.
Documents
Technical data sheets
|
|
|---|---|
Declaration of conformity
|
|
Safety regulations, instructions for installation and use
|
Installation manual
| Installation manual |
|---|
AOSWS
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| AOSWS | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 |
| AOSWSA4 | AISI 316 stainless steel grade 1.4401 | - | 60 | 98 | 1 |
Specifications
FAQ - Frequently Asked Questions
What is the load capacity of the AOSWS anchor point?
You will need to consult the product data sheet for an accurate, standards-compliant answer, but AOSWS is designed to support up to three operators simultaneously, ensuring maximum safety at height.
Can the AOSWS anchor point be installed on any type of surface?

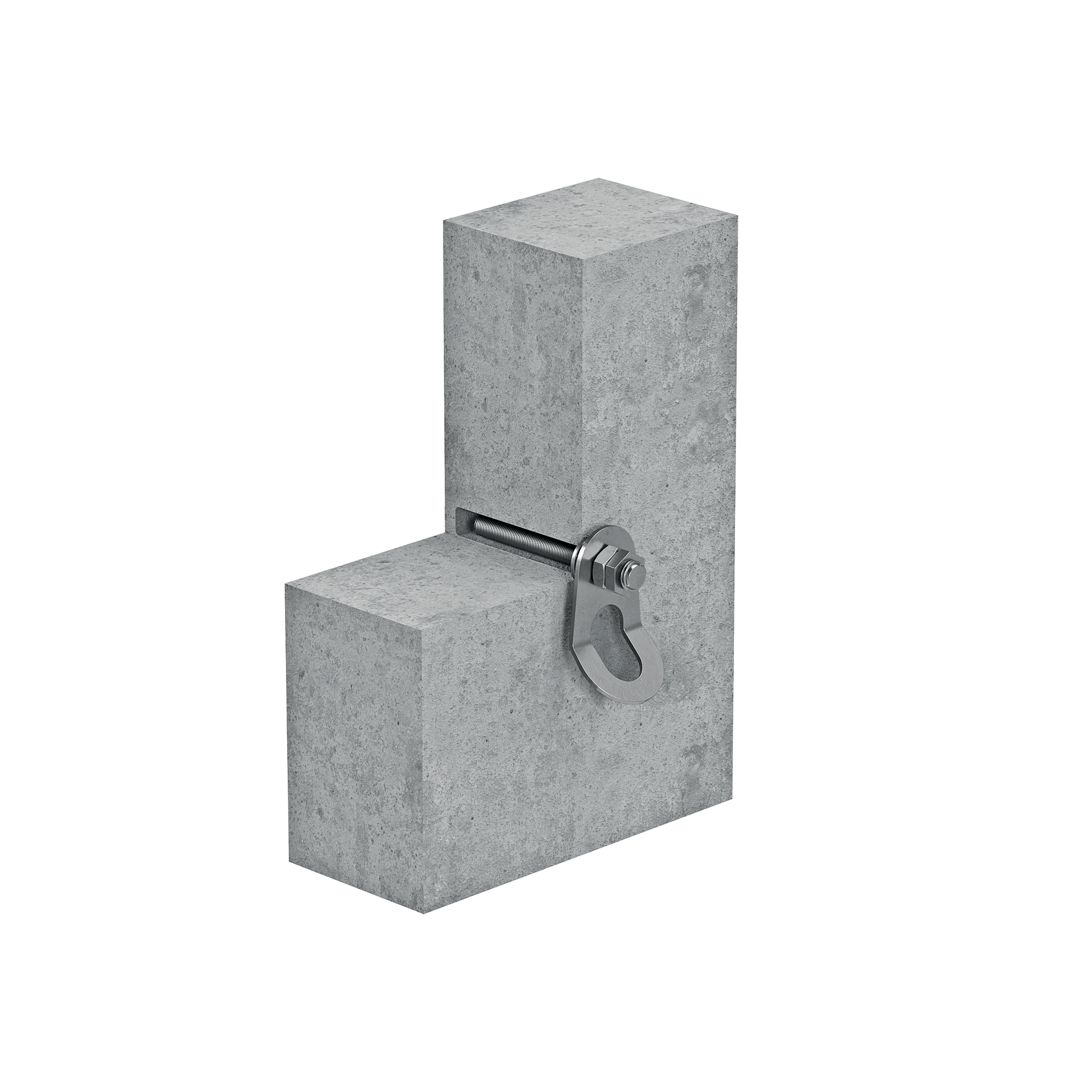

Yes, AOSWS is designed to be simply installed on a variety of surfaces, including concrete, steel. To ensure maximum effectiveness, it is important to carefully follow the installation instructions provided.
What are the ideal environmental conditions for use of the AOSWS anchor point?
AOSWS is designed to withstand a wide range of environmental conditions, including extreme climates and severe weather. Its durable construction with A2 or A4 stainless steel ensures reliable performance in a multitude of scenarios.
How long does the installation of the AOSWS anchor point take?
Installation of AOSWS is quick and easy, minimizing site downtime. The time required for installation may depend on site-specific conditions and the installer's expertise.
