ANCHOR POINT FOR ROOFS WITH FAUX TILES
AOS01 + COPPO

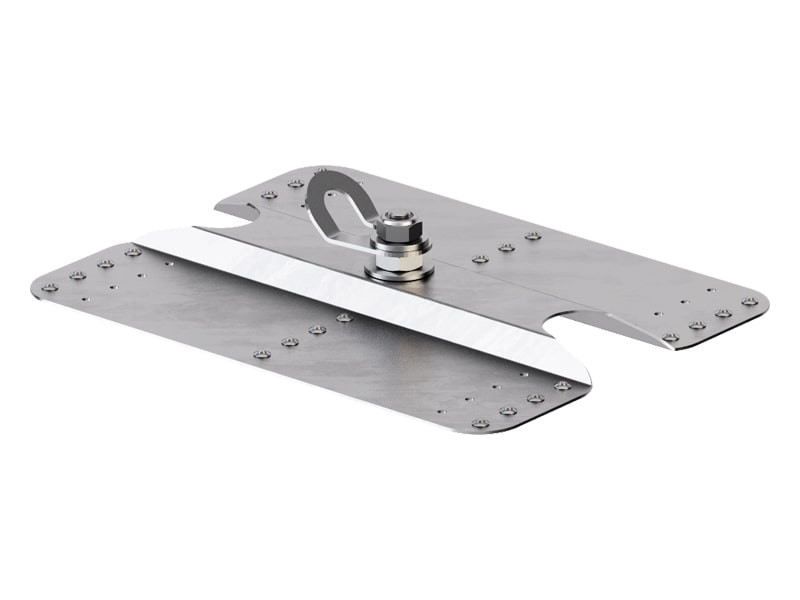

AOS01 in combination with the COPPO support is the ideal system for creating an anchor point on faux tile roofs. Thanks to the single-plate design, assembly is particularly quick.

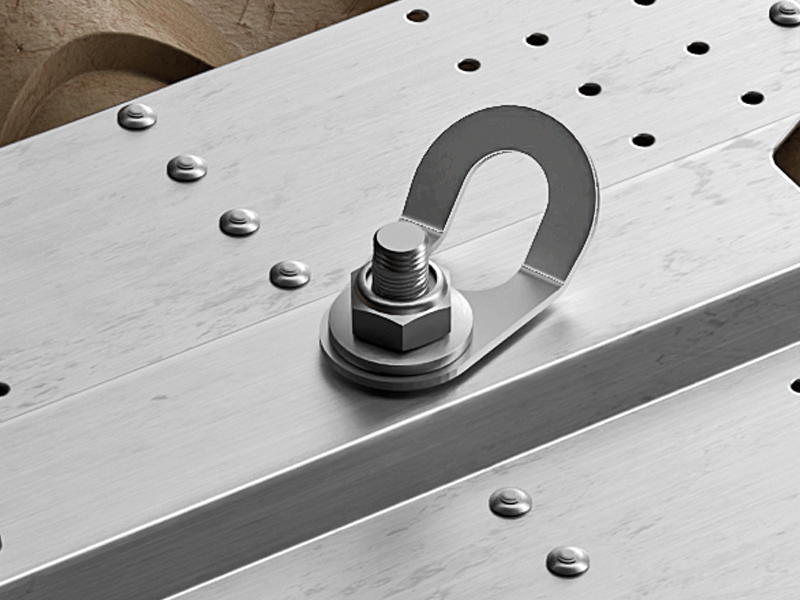

AOS01 completes the COPPO support to create an anchor point for faux tile roofs.

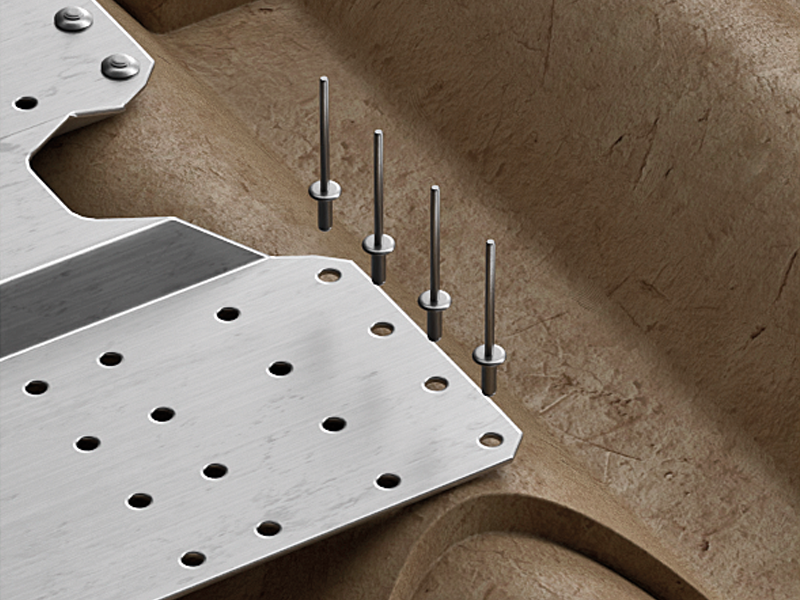

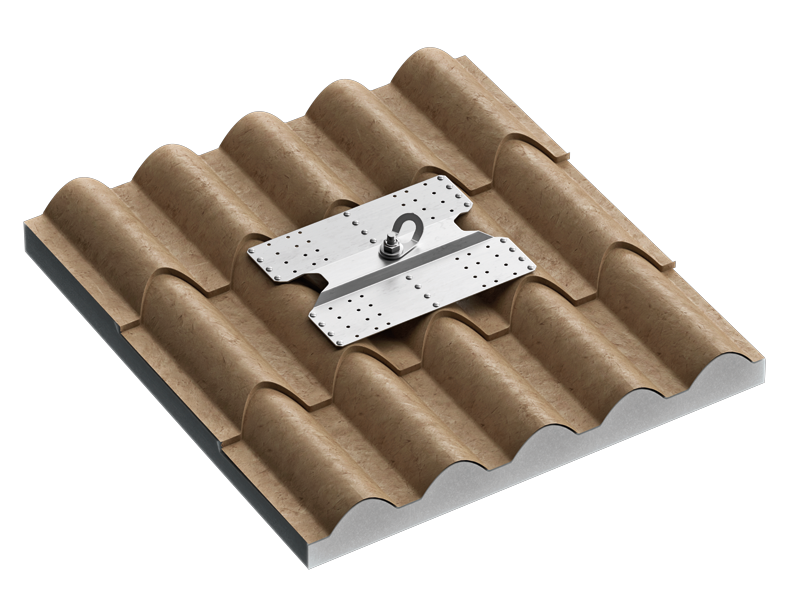

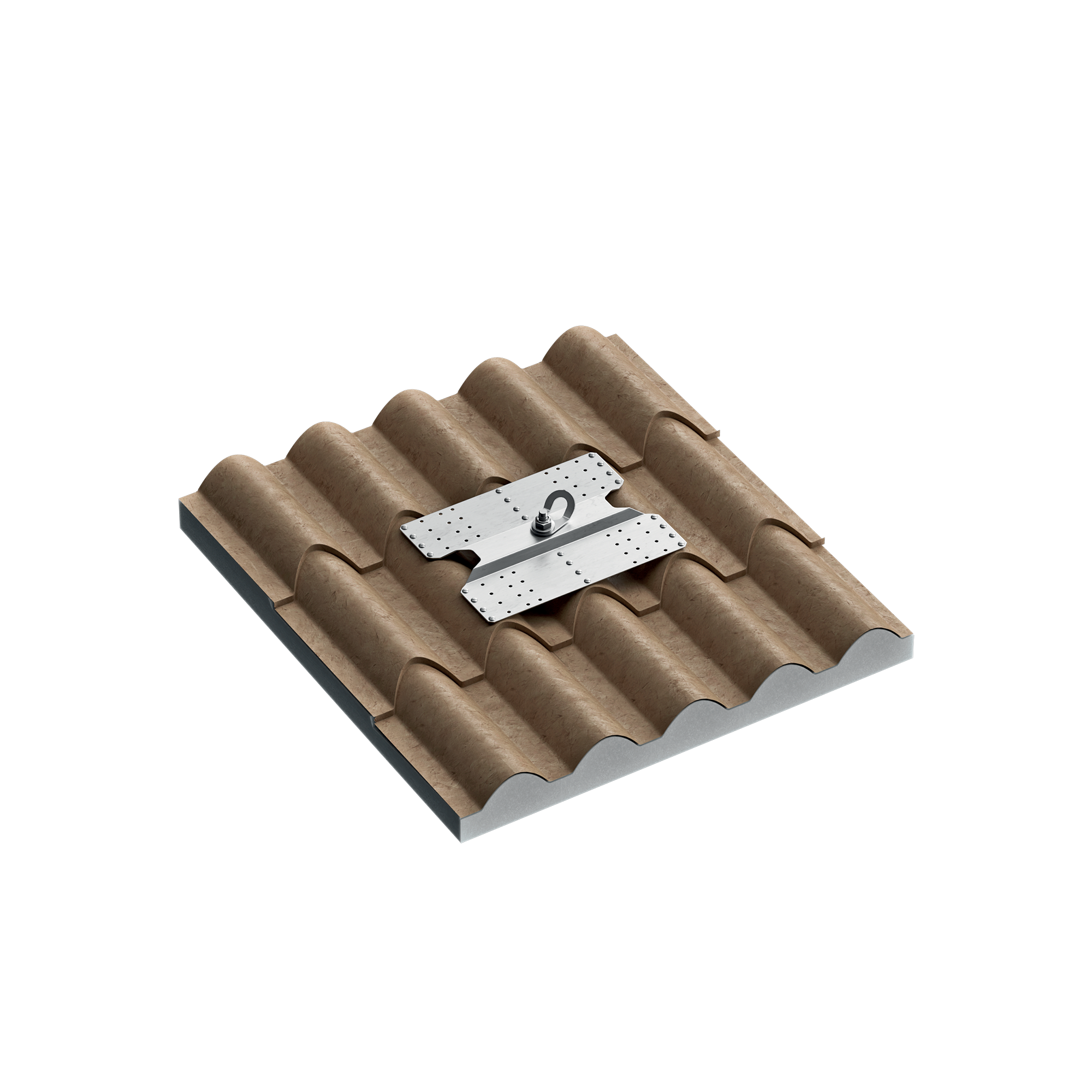

The package of anchor point includes fasteners and cellular rubber seals, to ensure waterproofing. The system withstands plane stress (360°) and is designed for installation on flat and sloping faux tile roofs.
Documents
Technical data sheets
|
|---|
COPPO
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| COPPO | AISI 304 stainless steel grade 1.4301 | 420 | 65 | 322 | 1 |
AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 | |
| AOS01A4 | New | - | - | - | - | 1 |
Made of
