VERTICAL LIFELINE WITH A4 STAINLESS STEEL ELEMENTS
VERTIGRIP A4

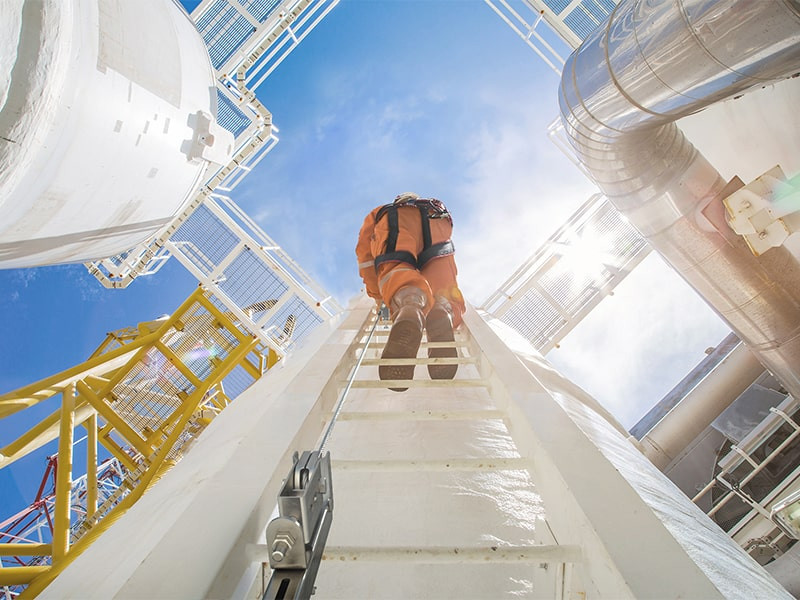

The VERTIGRIP A4 vertical lifeline guarantees excellent resistance to corrosion in marine and industrial environments, due to its AISI 316 stainless steel elements. It includes a guided type fall arrester on rope with integrated energy absorber, which allows a controlled ascent and descent in safe conditions.
Vertical lifeline with VERTIGRIP A4 stainless steel elements: safety and corrosion resistance.

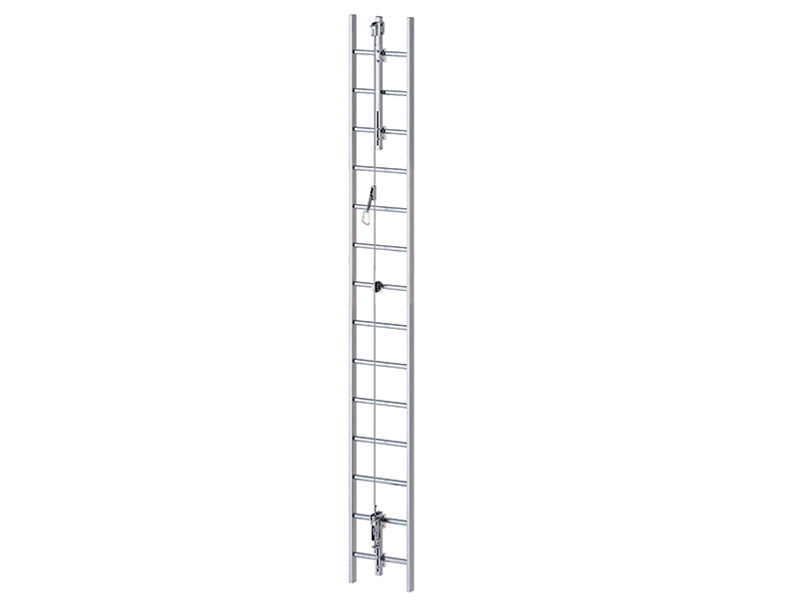

The VERTIGRIP A4 vertical lifeline can be installed on pitched timber, steel or concrete walls at an angle of up to 15° from the vertical, or directly on ladders.
Documents
Technical data sheets
|
|
|---|---|
Certificates
|
|
Declaration of conformity
|
|
Safety regulations, instructions for installation and use VERTIGRIP
|
|
Safety regulations, instructions for installation and use VERTSLIDE
|
|
Declaration of Installation and inspection
|
Installation manual
| Installation manual |
|---|
COMPONENTI PRINCIPALI PER LINEA VITA VERTICALE
| CODE | description | material | peso netto
[Kg]
|
pcs. | |
|---|---|---|---|---|---|
| VERTSPEARA4 | set for A4 VLL | AISI 316 stainless steel grade 1.4401 | 2.6 | 1 | |
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | 0.26 | 1 | |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 EN AW 7075 T6 Aluminium | 0.4 | 1 | |
| VERTSLIDEPAS | removable sliding through fall arrest device with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 | 0.1 | 1 | |
| VERTOP09A4 | upper anchor system (0,9 m) for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 | 4.5 | 1 | |
| VERTOP17A4 | upper anchor system (1,7 m) for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 | 9.46 | 1 | |
| VERTBASEA4 | lower anchor system for vertical lifeline on A4 ladder | AISI 304 stainless steel grade 1.4301 | 1.85 | 1 | |
| VERTINTA4 | intermediate anchor system for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 – ABS | 2 | 1 | |
| VERTINTPAS1A4 | New | fixed pass-through intermediate element for vertical A4 lifeline | AISI 316 stainless steel grade 1.4401 | - | - |
| VERTINTPAS2A4 | New | removable pass-through intermediate element for vertical A4 lifeline | AISI 316 stainless steel grade 1.4401 | - | - |
SUPPORTI PER LINEA VITA VERTICALE SU STRUTTURA
| CODE | description | material | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 2 | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 1 | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 – ABS | 1 | 1 |
VERTICAL LIFELINE ACCESSORIES
| CODE | description | material | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| CODE | description | pcs. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
