LIFELINE ON SUPPORT FOR TIMBER, CONCRETE AND STEEL ROOFS
PATROL + TOWER

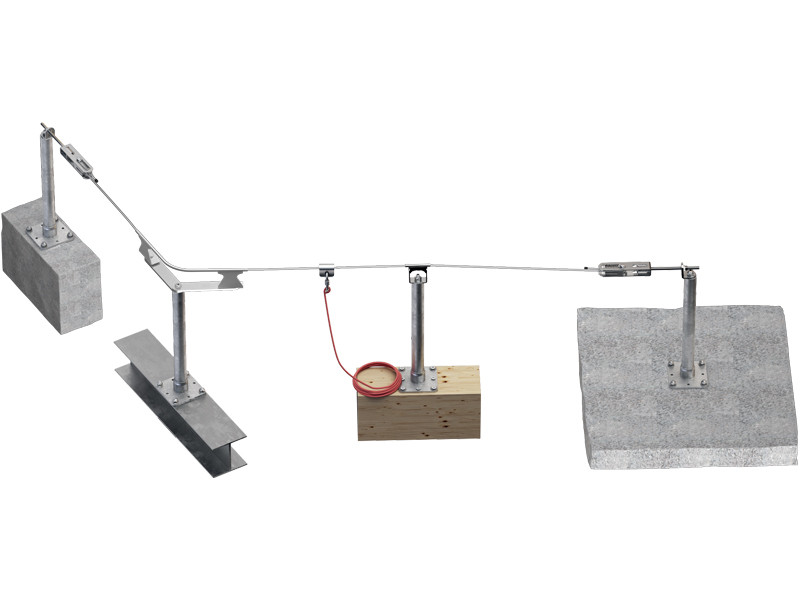

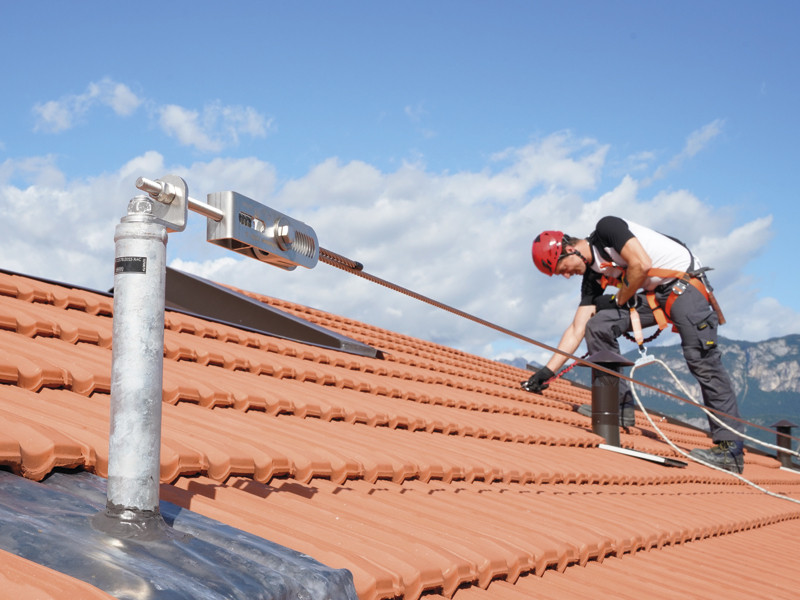

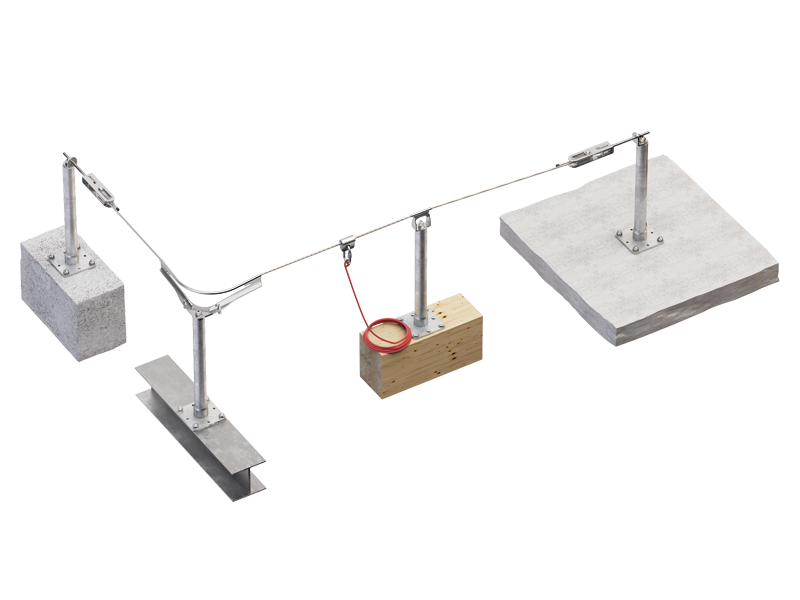

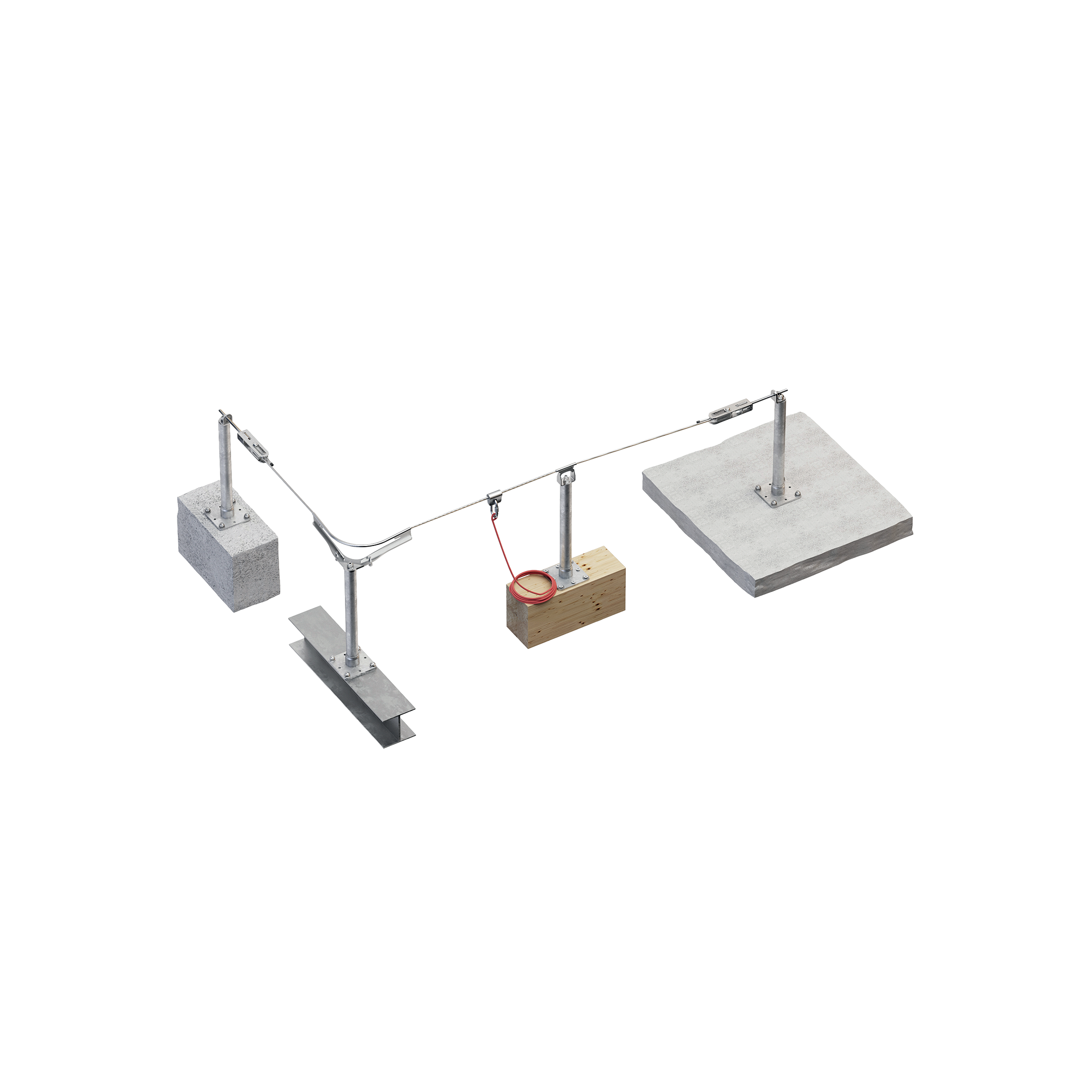

The lifeline made with PATROL system and TOWER support easily meets a variety of project requirements. Its installation is versatile, suitable for different types of structures and aesthetically pleasing.
PATROL lifeline system with TOWER support: versatile, adaptable, aesthetically pleasing.

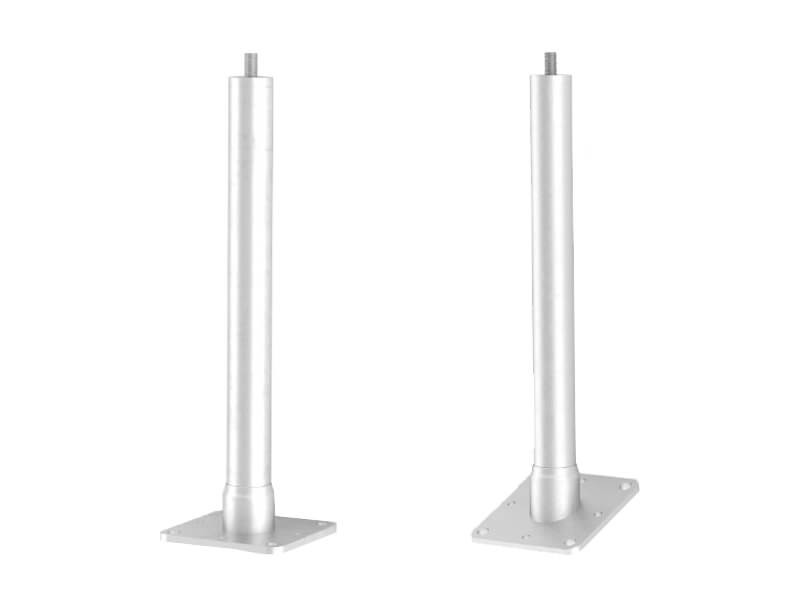

The TOWER lifeline support has a markedly elastic-plastic behaviour, which makes it possible to reduce the load on the fastenings and on the structure in the event of an operator falling. Support height between 300 and 600 mm to adapt to different roofing thickness. It can be installed on steel, concrete or timber substrates.
The TOWER support, cylindrical in shape and small in size, ensures an aesthetically pleasing appearance in every context while minimising the visual impact on the roof. The TOWER lifeline system withstands both plane stress (360°) and extraction forces, and can be installed on flat, sloping roofs and ceilings in the construction of overhead lifelines.
It is a controlled deformation device that guarantees a reduction of the load on fastening systems and structure if the operator falls.
Documents
Technical data sheets
|
|
|---|---|
Declaration of Installation and inspection
|
Made of
