TEMPORARY HORIZONTAL ANCHORING DEVICE
HOLD-SYSTEM®

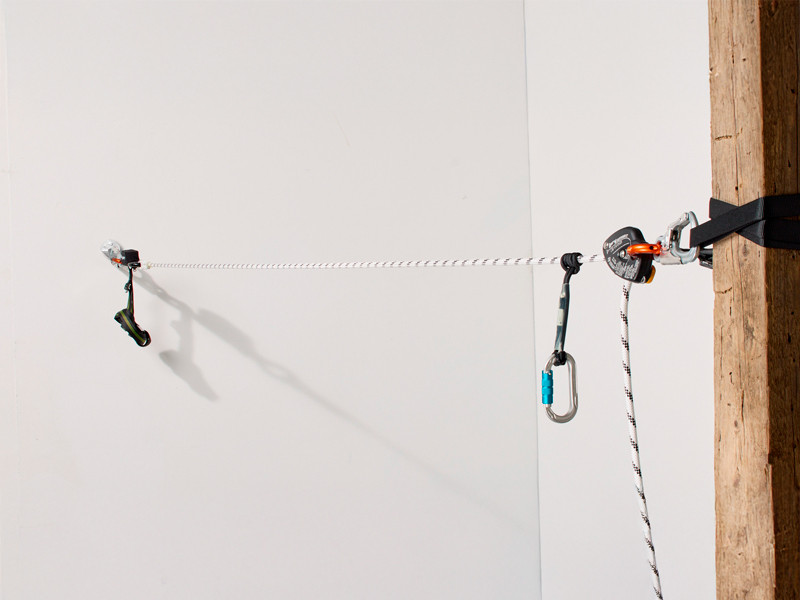

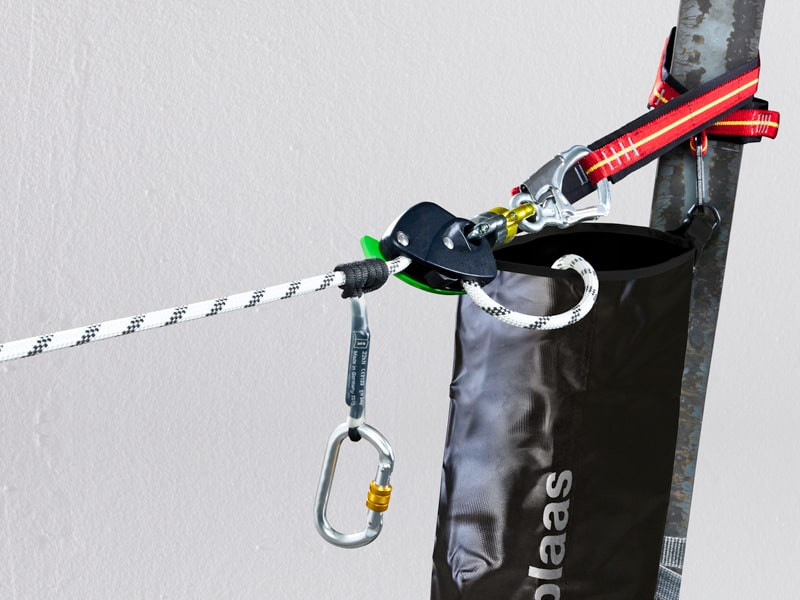

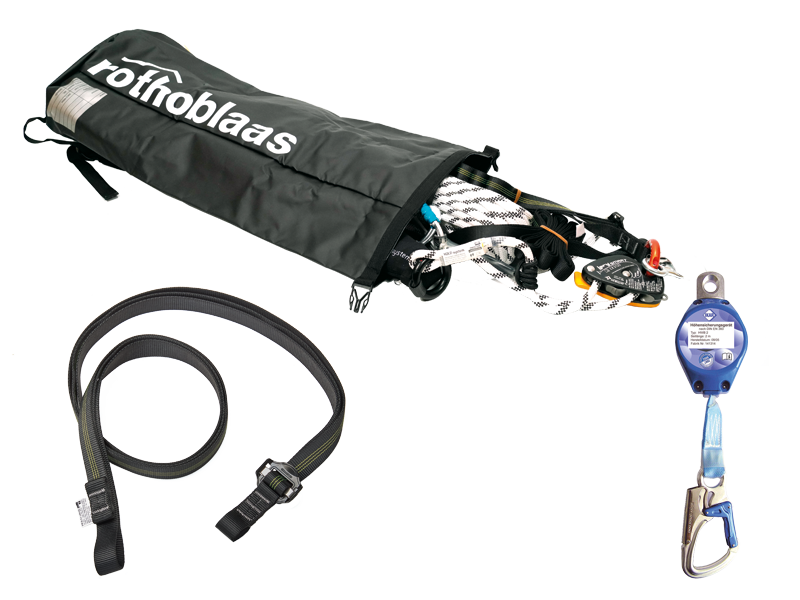

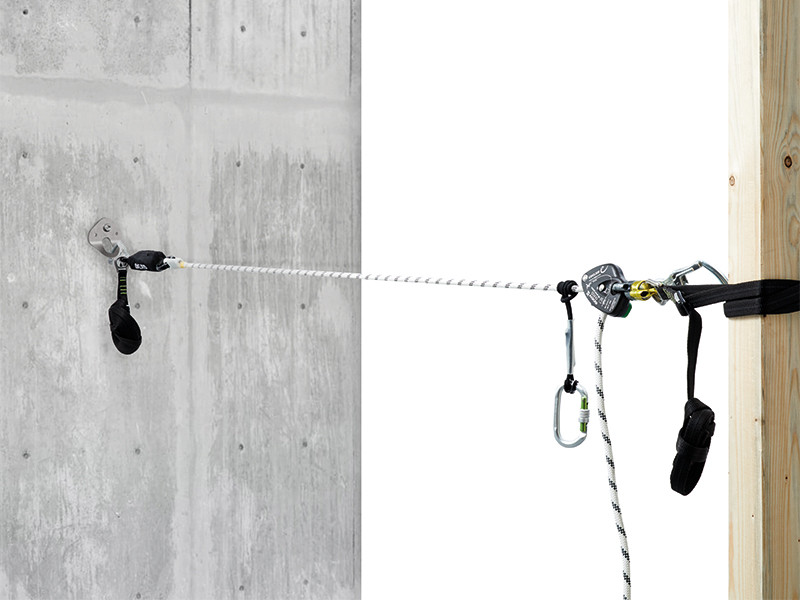

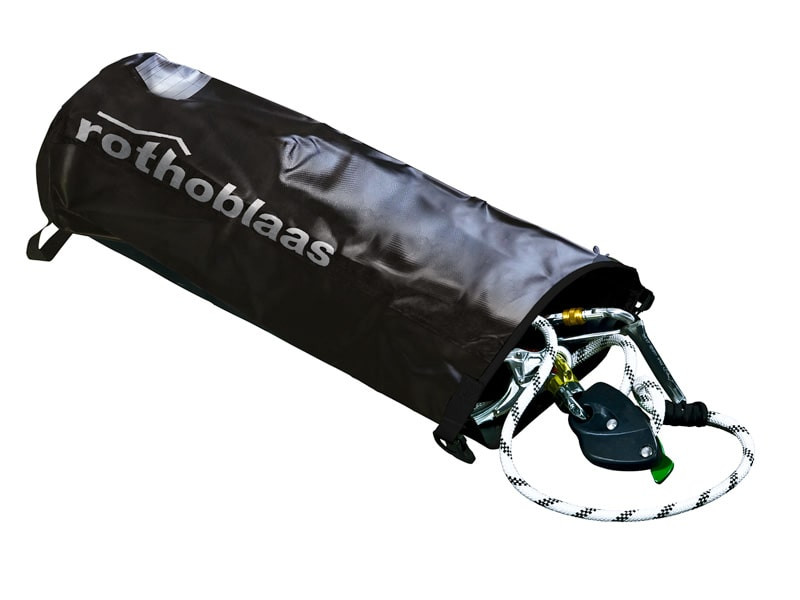

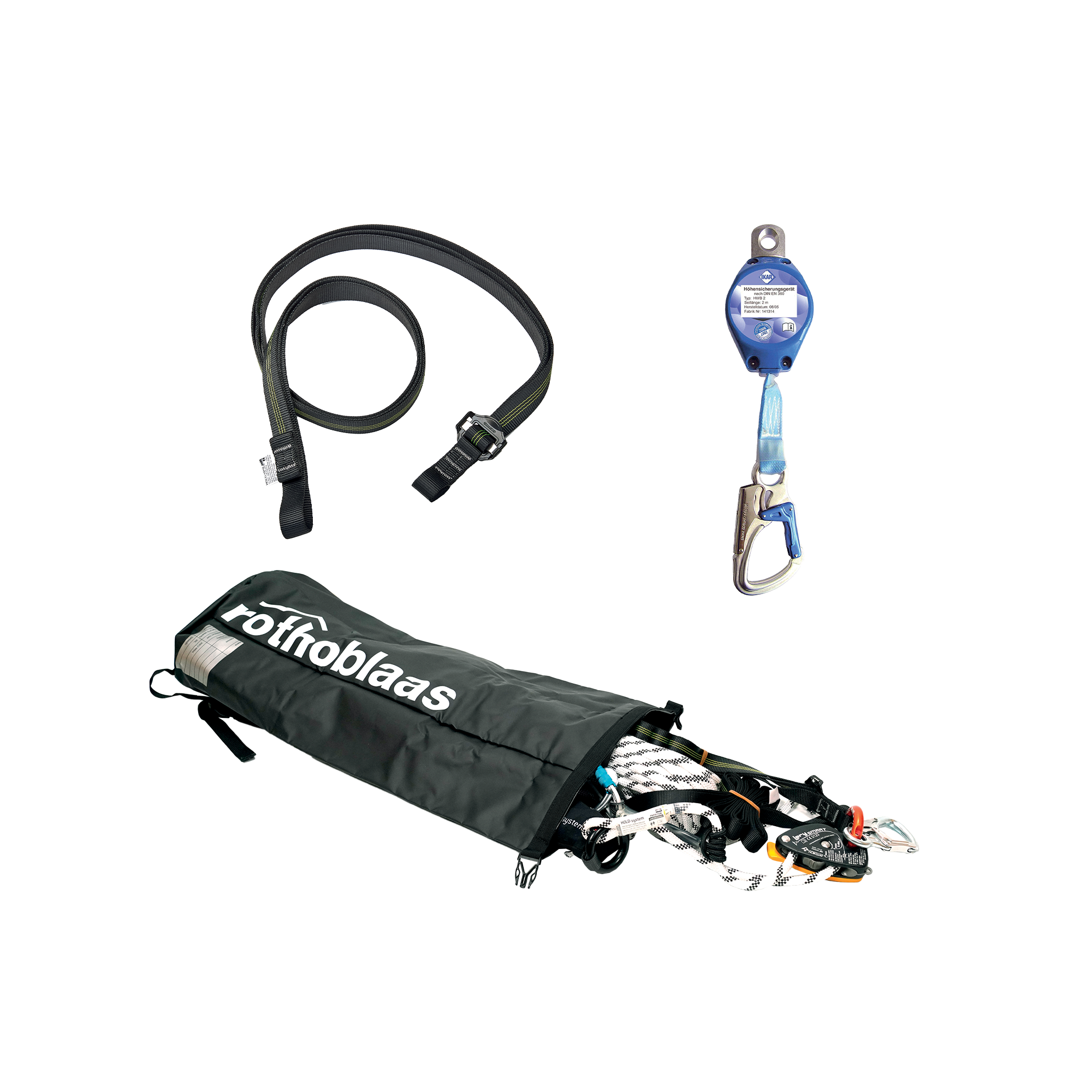

HOLD SYSTEM is the temporary lifeline that can be used during construction or in other special cases. Ideal for securing two operators, it has a maximum span of 12 metres. It can be tensioned quickly and easily by a single operator using a prusik knot system and a self-locking device; the system comes complete with a carabiner and webbing for fastening.
Videos
HOLD SYSTEM, the temporary roof lifeline system.

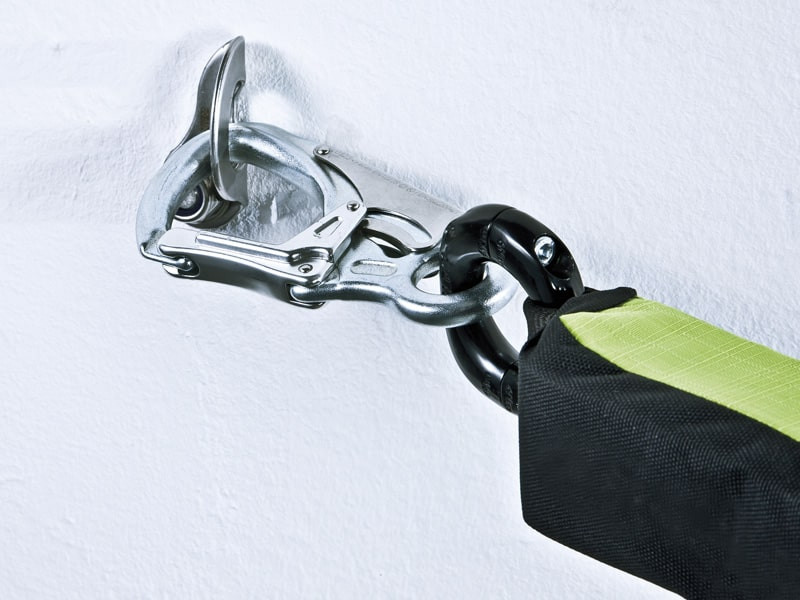

The HOLD SYSTEM temporary lifeline is certified according to EN 795:2012 C. Overhead installation is always recommended to reduce the fall. The anchor points must withstand a minimum stress of 9 kN. The same holds for the intermediate points, which must be placed every 12 meters, if the line extends along multiple spans.
Documents
Technical data sheets
|
|
---|---|
Declaration of Installation and inspection
|
HOLD-SYSTEM®
CODE | description | L
[m]
|
pcs. | |
---|---|---|---|---|
TEMPLUS20 | - | 20 | 1 | |
TEMPLUS30 | - | 30 | 1 | |
TEMPLUS40 | - | 40 | 1 | |
TEMPLUS60 | - | 60 | 1 | |
HSG2RB | - | - | 1 | |
TEMPLUSLAN | New | - | - | 1 |
