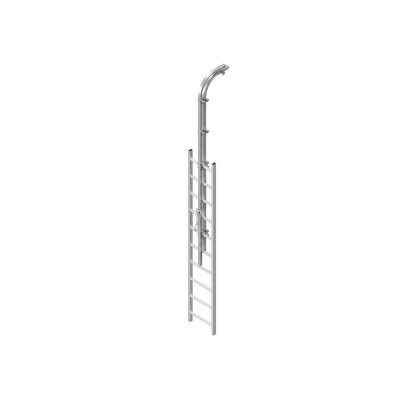

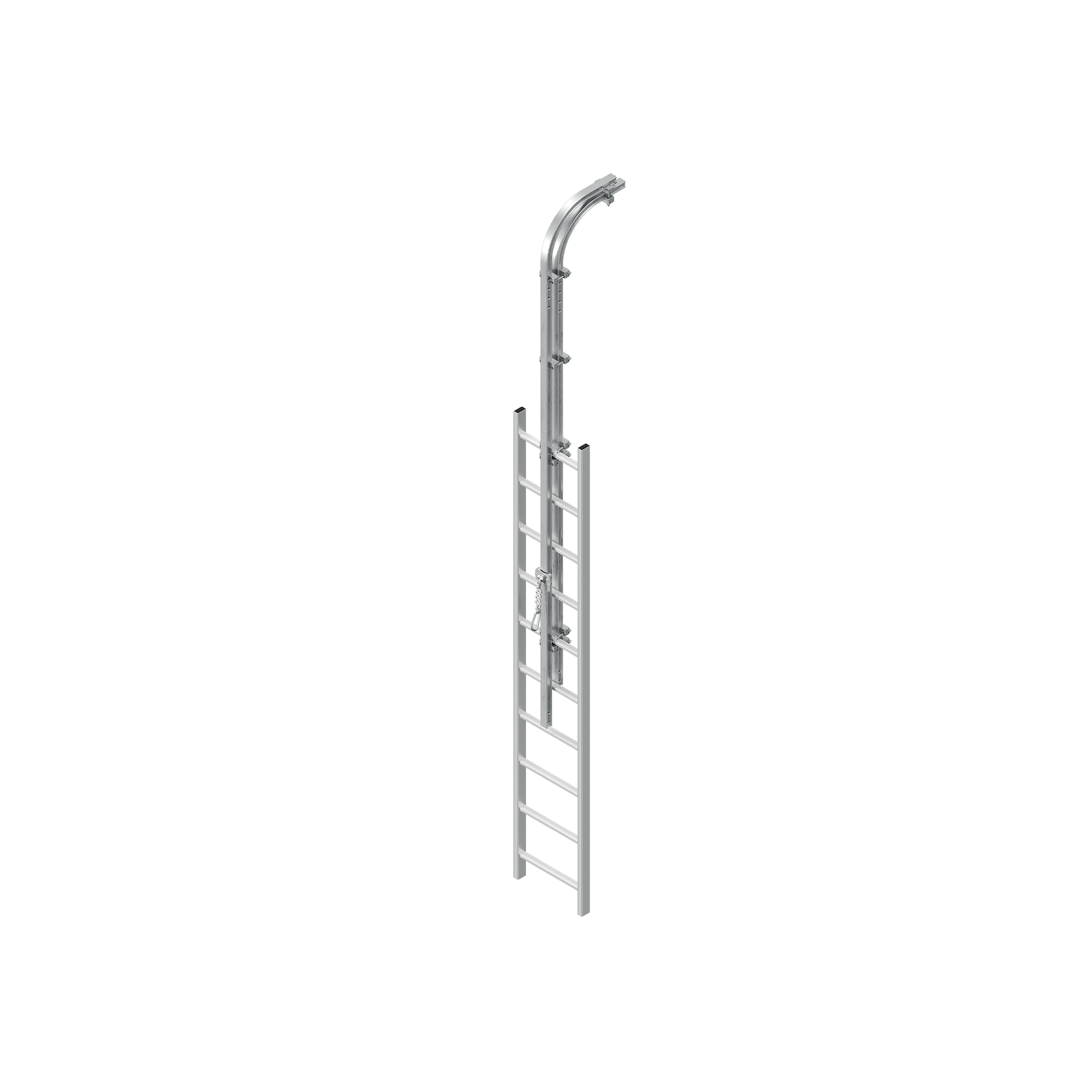

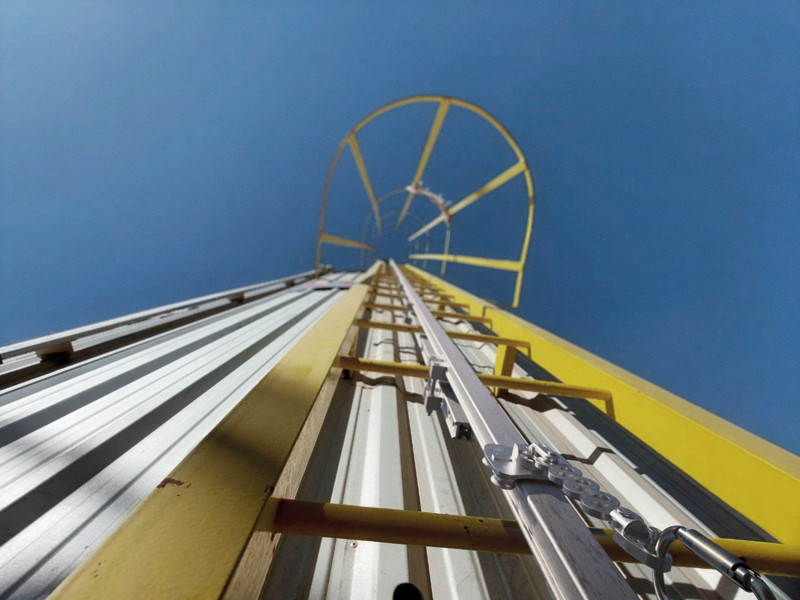

RAIL SYSTEM FOR VERTICAL USE ON LADDER
H-RAIL VERTICAL
Coming Soon
The sliding device with integrated energy absorber allows continuous ascent and descent in safe and comfortable conditions.
The elements in AISI 304 stainless steel and aluminium alloy provide excellent resistance to corrosion.
It is a user-friendly system comprised of few elements that are easy to install.
Documents
Technical data sheets
|
|---|
RAIL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAIL3000 | 3m aluminium rail | EN AW 6063 (T6) | 49 | 41 | 3000 | 1 |
| RAILC90 | 90° curved rail | EN AW 6063 (T6) | 475 | 41 | 475 | 1 |
| RAILC120 | 120° curved rail | EN AW 6063 (T6) | 336 | 41 | 538 | 1 |
| RAILC135 | 135° curved rail | EN AW 6063 (T6) | 257 | 41 | 536 | 1 |
| RAILC150 | 150° curved rail | EN AW 6063 (T6) | 178 | 41 | 512 | 1 |
TARGAVERTxy
| CODE | description | pcs. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
SUPPORTO
| CODE | description | pcs. | |
|---|---|---|---|
| RAILVBRA | New | - | 1 |
