HORIZONTAL OVERHEAD RAIL SYSTEM

H-RAIL OVERHEAD

New

Working at height requires a reliable anchoring method, but traditional solutions can often be aesthetically unattractive or restrict the use of the work area. The H-RAIL rail system is a flexible and safe solution with minimal visual impact. Thanks to its structure, H-RAIL requires few fastening points and allows the creation of rigid anchor lines in different configurations. H-RAIL is the ideal option for working at height, in both retention and suspension mode.

Videos

Working at height with H-RAIL OVERHEAD

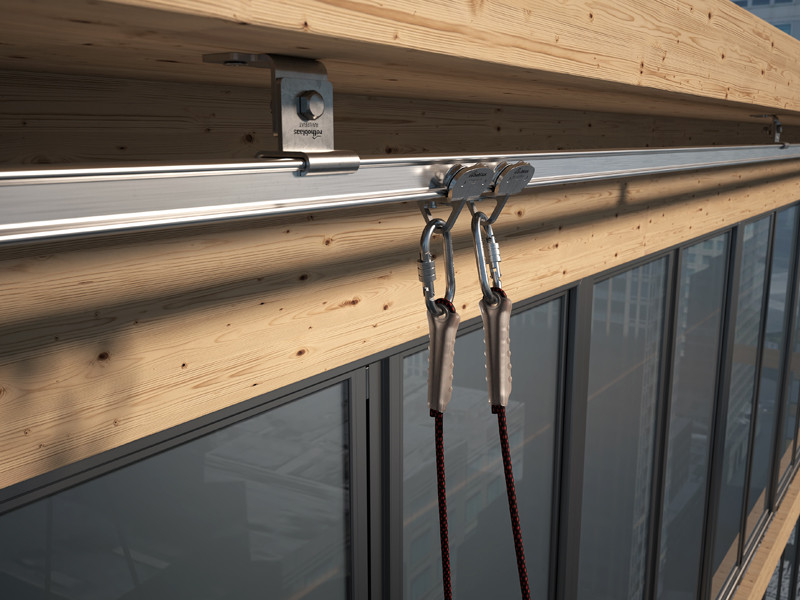

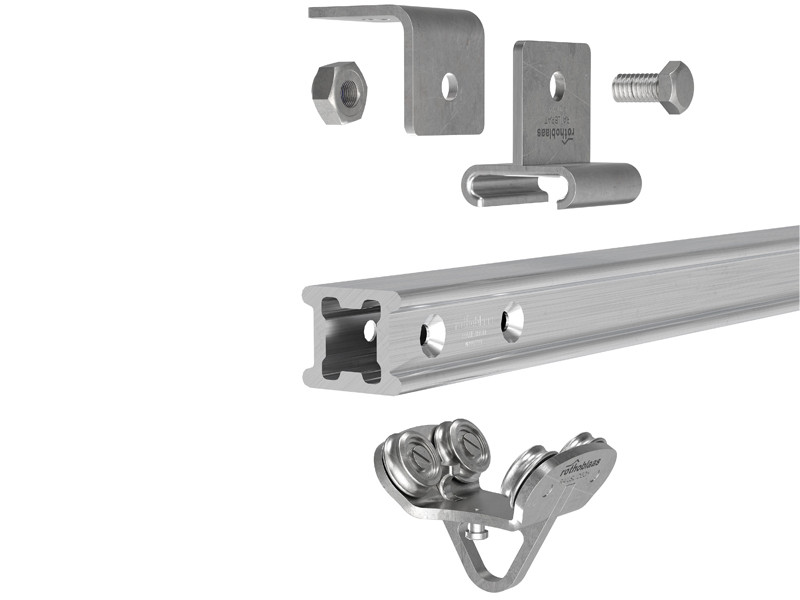

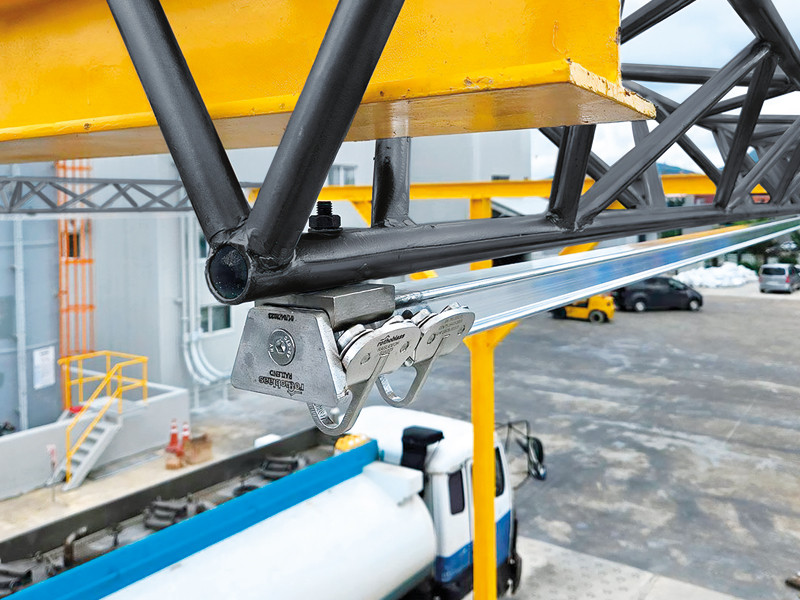

The H-RAIL system has been specially designed to be used with a sliding unit, equipped with four wheels, making it ideal for work at height, both in fall arrest and suspended mode.

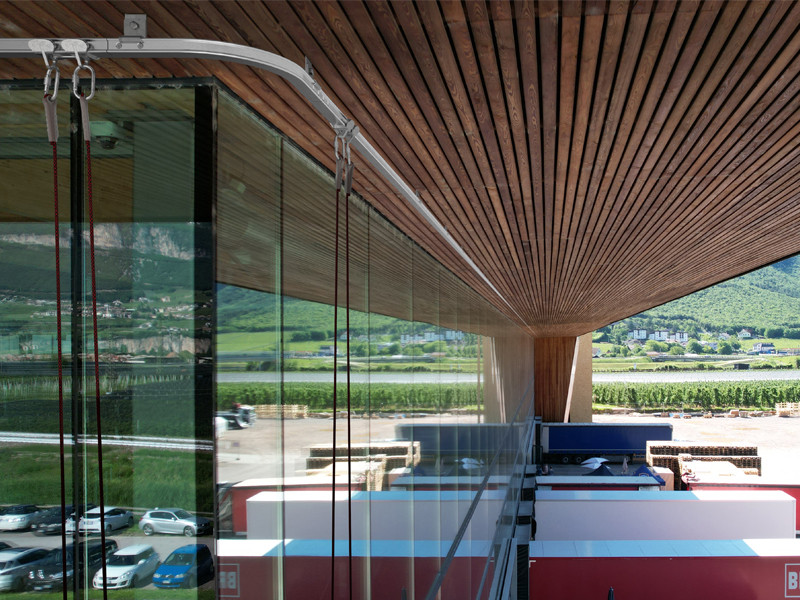

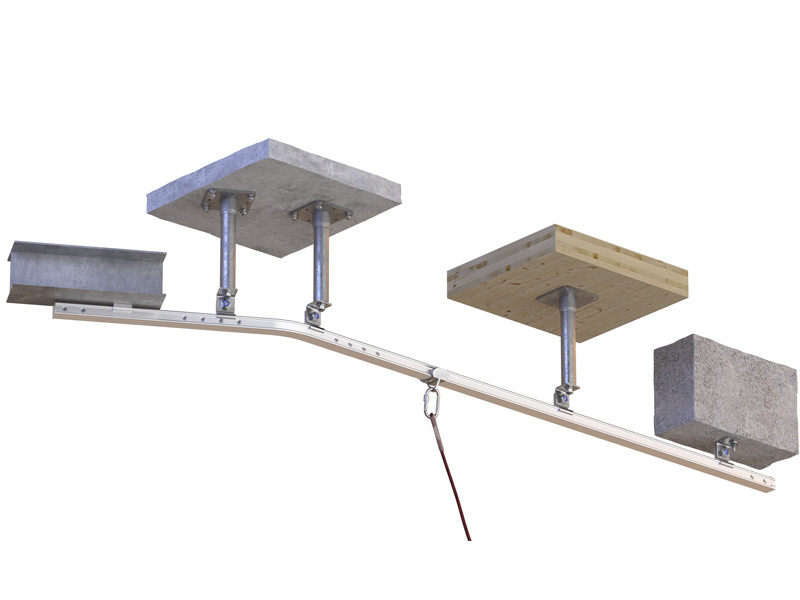

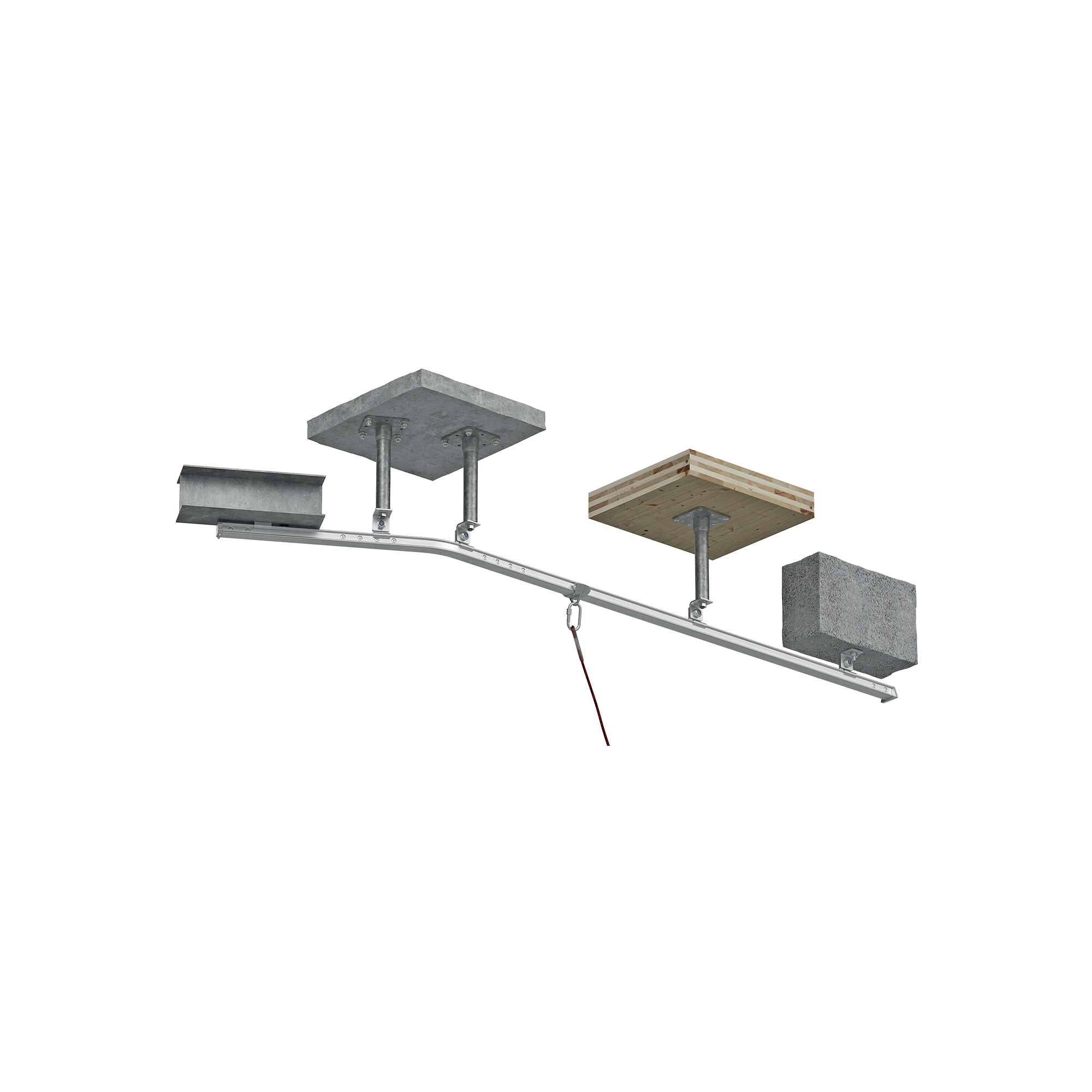

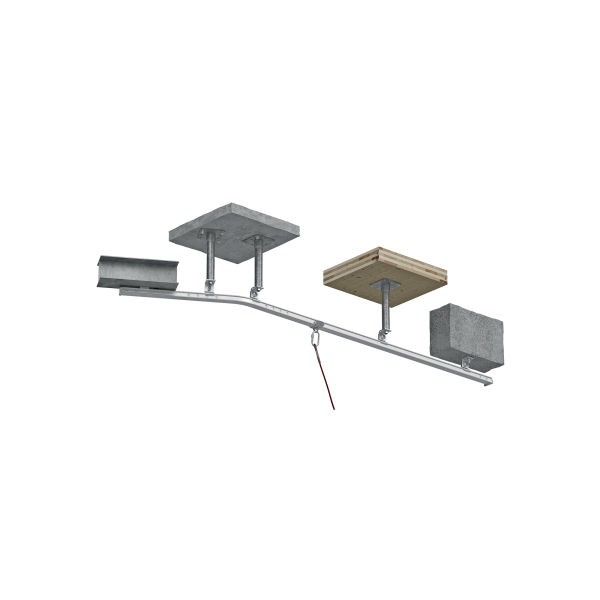

The versatility of H-RAIL allows it to be assembled on different types of structures, be they timber, concrete or steel, adapting perfectly to all installation requirements. Unlike the other available models, H-RAIL OVERHEAD is installed below the supporting structure, while H-RAIL ON WALL is installed on the wall and H-RAIL ON FLOOR on the roof.

With a spacing of up to 6 metres between supports, the H-RAIL assembly process requires only a few fastening points, simplifying installation.

What is meant by work at height

Work at height is defined as any type of work activity with a risk of falling from a height of more than 2 metres, which involves the need to ensure the safety of operators against falling at every step. Bulky solutions such as hanging baskets (BMUs) are often used to carry out work such as façade maintenance, especially on large buildings. However, these require large spaces and installation requirements, which must be taken into account right from the design phase of the building. H-RAIL offers an alternative solution with superior performance due to its simplicity and lightness.

H-RAIL OVERHEAD by Rothoblaas represents the ultimate in safety for work at height and maintenance of roofs and façades. Designed with the primary objective of ensuring maximum protection for operators, this innovative anchoring system provides a reliable and robust solution for any type of structure. Its installation is extremely simple and does not require complex masonry work, guaranteeing exceptional installation efficiency. The ergonomic and compact design blends harmoniously with the surrounding architecture, preserving the aesthetics of the location.

Made from the highest quality and most durable materials, H-RAIL provides long-lasting protection, offering peace of mind and safety to both operators and users of the facilities involved. Its versatility and reliability make it the ideal choice for a wide range of applications, from industrial maintenance to work on residential buildings, helping to raise safety standards and protecting the lives of those working at height.

Documents

Technical data sheets
Declaration of conformity
Safety regulations, instructions for installation and use
File BIM.ifc
File BIM.rfa
Declaration of Installation and inspection

Installation manual

Installation manual

RAIL

CODE description material B
[mm]
H
[mm]
L
[mm]
pcs.
RAIL3000 3m aluminium rail EN AW 6063 (T6) 49 41 3000 1
RAILC90 90° curved rail EN AW 6063 (T6) 475 41 475 1
RAILC120 120° curved rail EN AW 6063 (T6) 336 41 538 1
RAILC135 135° curved rail EN AW 6063 (T6) 257 41 536 1
RAILC150 150° curved rail EN AW 6063 (T6) 178 41 512 1

SUPPORT

CODE description material B
[mm]
H
[mm]
L
[mm]
pcs.
RAILBRAT rail bracket AISI 304 stainless steel grade 1.4301 60 74 60 1
RAILBRATA4 New rail bracket AISI 316 stainless steel grade 1.4401 60 74 60 1
RAILBRAT90 New rail bracket AISI 304 stainless steel grade 1.4301 60 74 60 1
RAILBRAT90A4 New rail bracket AISI 316 stainless steel grade 1.4401 60 74 60 1
RAILBRAT12 rail bracket AISI 304 stainless steel grade 1.4301 60 63 60 1
RAILBRAT12A4 New rail bracket - 60 63 60 1
RAILBRAT16 rail bracket AISI 304 stainless steel grade 1.4301 60 63 60 1
RAILBRAT16A4 New rail bracket AISI 316 stainless steel grade 1.4401 60 63 60 1
RAILBRATW rail bracket AISI 304 stainless steel grade 1.4301 103 63 60 1
RAILBRATWA4 New rail bracket AISI 316 stainless steel grade 1.4401 103 63 60 1
RAILBRAS rail bracket AISI 304 stainless steel grade 1.4301 60 22 60 1
RAILBRASA4 New rail bracket AISI 316 stainless steel grade 1.4401 60 22 60 1
RAILBRAW rail bracket AISI 304 stainless steel grade 1.4301 120 22 60 1
RAILBRAWA4 New rail bracket AISI 316 stainless steel grade 1.4401 120 22 60 1

TERMINAL ELEMENT

CODE description material B
[mm]
H
[mm]
L
[mm]
pcs.
RAILEND rail terminal element AISI 304 stainless steel grade 1.4301 84.5 48.6 55 1
RAILENDA4 New rail terminal element AISI 316 stainless steel grade 1.4401 - 48.6 55 1
RAILENDOPEN rail terminal element AISI 304 stainless steel grade 1.4301 49 49 60 1
RAILENDOPENA4 New rail terminal element AISI 316 stainless steel grade 1.4401 - 49 60 1

JOINT

CODE description material B
[mm]
H
[mm]
L
[mm]
pcs.
RAILJUN rail junction element EN AW 6082 28.7 32.7 340 1

SLIDING DEVICE

CODE description material B
[mm]
H
[mm]
L
[mm]
pcs.
RAILSLIDE sliding device AISI 304 stainless steel grade 1.4301 50 51 70 1
RAILSLIDEA4 New sliding device AISI 316 stainless steel grade 1.4401 50 51 70 1
RAILSLIDEOH sliding device AISI 304 stainless steel grade 1.4301 72 72 95 1
RAILSLIDEOHA4 New sliding device AISI 316 stainless steel grade 1.4401 72 72 95 1

TOOL

CODE description material B
[mm]
H
[mm]
L
[mm]
pcs.
RAILJUNTOOL rail tool EN AW 6082 - 1.1191 (C45E) aluminium 92 116 132 1
RAILPLATE rail id plate - - 40 140 1

FASTENING

CODE description material pcs.
RAILOCKSCREW lock screw A2-70 250
RAILSCREW DIN 7991 A2-70 A2-70 50
RAILSCREWA4 New DIN 7991 A4-70 A4-70 50

TARGAHORxy

CODE description pcs.
TARGAHORIT Label plate for PATROL and H-RAIL systems IT 1
TARGAHORDE Label plate for PATROL and H-RAIL systems DE 1
TARGAHOREN Label plate for PATROL and H-RAIL systems EN 1
TARGAHORES Label plate for PATROL and H-RAIL systems ES 1
TARGAHORFR Label plate for PATROL and H-RAIL systems FR 1
TARGAHORPT Label plate for PATROL and H-RAIL systems PT 1
TARGAHORRU Label plate for PATROL and H-RAIL systems RU 1
TARGAHORCS Label plate for PATROL and H-RAIL systems CS 1
TARGAHORDA Label plate for PATROL and H-RAIL systems DA 1
TARGAHOREL Label plate for PATROL and H-RAIL systems EL 1
TARGAHORET Label plate for PATROL and H-RAIL systems ET 1
TARGAHORFI Label plate for PATROL and H-RAIL systems FI 1
TARGAHORHR Label plate for PATROL and H-RAIL systems HR 1
TARGAHORHU Label plate for PATROL and H-RAIL systems HU 1
TARGAHORIS Label plate for PATROL and H-RAIL systems IS 1
TARGAHORJA Label plate for PATROL and H-RAIL systems JA 1
TARGAHORLT Label plate for PATROL and H-RAIL systems LT 1
TARGAHORLV Label plate for PATROL and H-RAIL systems LV 1
TARGAHORNL Label plate for PATROL and H-RAIL systems NL 1
TARGAHORNO Label plate for PATROL and H-RAIL systems NO 1
TARGAHORPL Label plate for PATROL and H-RAIL systems PL 1
TARGAHORRO Label plate for PATROL and H-RAIL systems RO 1
TARGAHORSK Label plate for PATROL and H-RAIL systems SK 1
TARGAHORSL Label plate for PATROL and H-RAIL systems SL 1
TARGAHORSV Label plate for PATROL and H-RAIL systems SV 1
TARGAHORTR Label plate for PATROL and H-RAIL systems TR 1
TARGAHORZH Label plate for PATROL and H-RAIL systems ZH 1
TARGAHORAR Label plate for PATROL and H-RAIL systems AR 1
