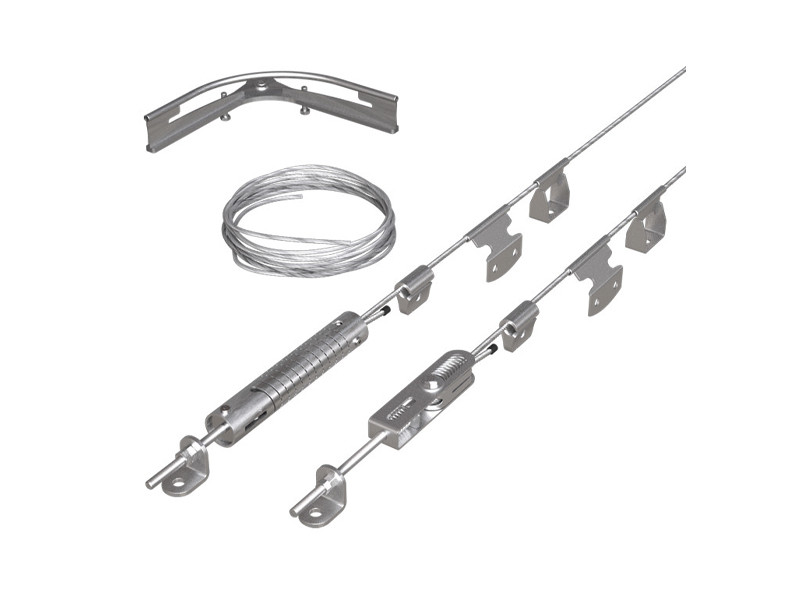

HORIZONTAL LIFELINE
PATROL
Videos
Documents
Technical data sheets
|
|
|---|---|
Declaration of conformity (SPEAR)
|
|
Declaration of conformity (SPEAREVO)
|
|
Calculator Spreadsheet LIFELINE CALCULATOR
|
|
Safety regulations, instructions for installation and use (SPEAREVO)
|
Installation manual
| Installation manual (SPEAR) | |
|---|---|
| User and installation manual (SPEAR) | |
| Installation manual (SPEAREVO) | |
| Installation manual (SPEAR 2) | |
| Installation manual (BENDTOOL) | |
| Installation manual (SLIDE-SLIDE2-OHSLIDE) |
TERMINALI
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|---|---|
| PATROLTERM | terminal element | AISI 304 stainless steel grade 1.4301 | 40 | 61 | 66 | 6 | 1 |
| PATROLEND | terminal element | AISI 304 stainless steel grade 1.4301 | 40 | 61 | 66 | 6 | 1 |
| PATROLTERML | long terminal | AISI 304 stainless steel grade 1.4301 | 40 | 61 | 180 | 6 | 1 |
| PAREND | terminal element with 4 feet per side | AISI 304 stainless steel grade 1.4301 | 300 | 150 | 300 | - | 1 |
| PATROLENDA4 | A4 stainless steel terminal element | AISI 316 stainless steel grade 1.4401 | 40 | 61 | 66 | 6 | 1 |
| PARENDA4 | terminal element with 4 feet per façade made of A4 stainless steel | AISI 316 stainless steel grade 1.4401 | 300 | 150 | 300 | - | 1 |
TENDITORI E ASSORBITORI DI ENERGIA
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| SPEAR | set of pair of tensioners with absorber | AISI 304 stainless steel grade 1.4301 EN AW 6082 aluminium | 50 | 33 | 201 | 1 |
| SPEAR2 | set of pair of tensioners with absorber for standing seam roofs | AISI 304 stainless steel grade 1.4301 EN AW 6082 aluminium | 50 | 33 | 293 | 1 |

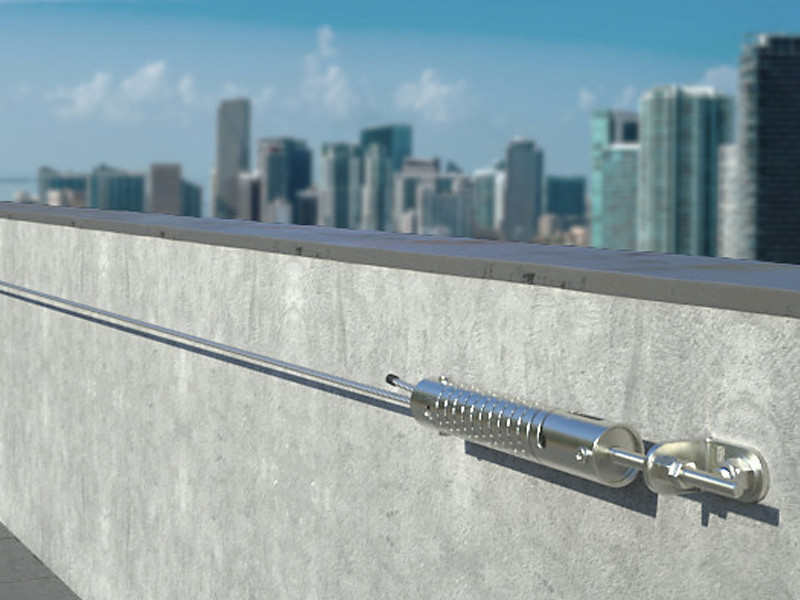

| SPEAREVO | - | AISI 304 stainless steel grade 1.4301 | 57 | 56 | 291 | 1 |
| SPEARA4 | set of pair of tensioners with A4 absorber | AISI 316 stainless steel grade 1.4401 EN AW 6082 aluminium | 50 | 33 | 201 | 1 |
| SPEAREVOA4 | - | AISI 316 stainless steel grade 1.4401 | 57 | 56 | 291 | 1 |
INTERMEDI
| CODE | description | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|---|
| PASINT | pass-through intermediate element | AISI 304 stainless steel grade 1.4301 | - | 35 | 86 | 100 | 1 |
| PARINTER | pass through intermediate element for façades | AISI 304 stainless steel grade 1.4301 | - | 100 | 88 | 120 | 1 |
| PATROLINT | Semi-pass-through intermediate element | AISI 304 stainless steel grade 1.4301 | - | 50 | 50 | 375 | 1 |
| PATROLMED | Non-pass-through intermediate element | AISI 304 stainless steel grade 1.4301 EN AW 6082 aluminium | 55 | 30 | 50 | - | 1 |
| OHINT | pass-through intermediate element for aerial application | AISI 304 stainless steel grade 1.4301 | - | 40 | 86 | 130 | 1 |
| PASINTA4 | pass-through intermediate element INOX A4 | AISI 316 stainless steel grade 1.4401 | - | 35 | 86 | 100 | 1 |
| PARINTERA4 | A4 stainless steel pass through intermediate element for façades | AISI 316 stainless steel grade 1.4401 | - | 100 | 88 | 120 | 1 |
| OHINTA4 | pass-through intermediate element for aerial application in A4 | AISI 316 stainless steel grade 1.4401 | - | 40 | 86 | 130 | 1 |
ANGOLARI
| CODE | description | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|---|
| PASANG | corner pass-through element | AISI 304 stainless steel grade 1.4301 | - | 300 | 69 | 300 | 1 |
| PASANGBEND | pass-through angle bracket for adjustable supports 105°-165° | AISI 304 stainless steel grade 1.4301 | - | 54.5 | 102 | 565 | 1 |
| PAREX | external pass through angle bracket for façades | AISI 304 stainless steel grade 1.4301 | - | 326 | 118 | 326 | 1 |
| PAREXBEND | external pass-through angle bracket for façades adjustable 105°-165° | AISI 304 stainless steel grade 1.4301 | - | 72 | 118 | 565 | 1 |
| PARIN | internal pass through angle bracket for façades | AISI 304 stainless steel grade 1.4301 | - | 356 | 87 | 356 | 1 |
| PATROLANG | non-pass-through angle bracket | stainless steel - AISI304 | alloy EN AW-6082 | 90 | - | 58 | 175 | 1 |
| OHANGINT | internal pass through angle bracket for overhead application | AISI 304 stainless steel grade 1.4301 | - | 354 | 86 | 354 | 1 |
| OHANGEXT | external pass-through angle bracket for overhead application | AISI 304 stainless steel grade 1.4301 | - | 326 | 86 | 326 | 1 |
| BENDTOOL | adjustable angle bracket bending tool | S235JR zinc plated steel | - | 199 | 435 | 200 | 1 |
| PASANGA4 | A4 pass through angle bracket | AISI 316 stainless steel grade 1.4401 | - | 300 | 69 | 300 | 1 |
| PASANGBENDA4 | pass-through angle bracket for adjustable A4 supports 105°-165° | AISI 316 stainless steel grade 1.4401 | - | 54.5 | 102 | 565 | 1 |
| PAREXA4 | external pass through angle bracket for A4 façades | AISI 316 stainless steel grade 1.4401 | - | 326 | 118 | 326 | 1 |
| PAREXBENDA4 | external pass-through angle bracket for A4 façades adjustable 105°-165° | AISI 316 stainless steel grade 1.4401 | - | 72 | 118 | 565 | 1 |
| PARINA4 | internal pass through angle bracket for A4 façades | AISI 316 stainless steel grade 1.4401 | - | 356 | 87 | 356 | 1 |
| PARINBENDA4 | internal pass-through angle bracket for A4 façades adjustable 105°-165° | AISI 316 stainless steel grade 1.4401 | - | 42 | 87 | 565 | 1 |
| OHANGINTA4 | inside pass-through angle bracket for aerial application in A4 | AISI 316 stainless steel grade 1.4401 | - | 354 | 86 | 354 | 1 |
| OHANGEXTA4 | outside pass-through angle bracket for aerial application in A4 | AISI 316 stainless steel grade 1.4401 | - | 326 | 86 | 326 | 1 |
| ANGSUP | Corner support | AISI 304 stainless steel grade 1.4301 | - | 275 | 16 | 275 | 1 |
| ANGSUPA4 | A4 corner support | AISI 316 stainless steel grade 1.4401 | - | 275 | 16 | 275 | 1 |
DISPOSITIVI SCORREVOLI
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| SLIDE1 | removable sliding device | AISI 304 stainless steel grade 1.4301 | 30 | 60 | 60 | 1 |
| SLIDE2 | fixed sliding device | AISI 304 stainless steel grade 1.4301 | 30 | 60 | 60 | 1 |
| OHSLIDE | removable sliding device for overhead lifeline | AISI 304 stainless steel grade 1.4301 | 93 | 47 | 98 | 1 |
| SLIDE2A4 | fixed A4 sliding device | AISI 316 stainless steel grade 1.4401 | 30 | 60 | 60 | 1 |
| OHSLIDEA4 | removable sliding device for overhead A4 lifeline | AISI 316 stainless steel grade 1.4401 | 93 | 47 | 98 | 1 |
FUNE
| CODE | description | material | pcs. |
|---|---|---|---|
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | 1 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
