SUPPORT FOR ROOFS WITH FAUX TILES
COPPO

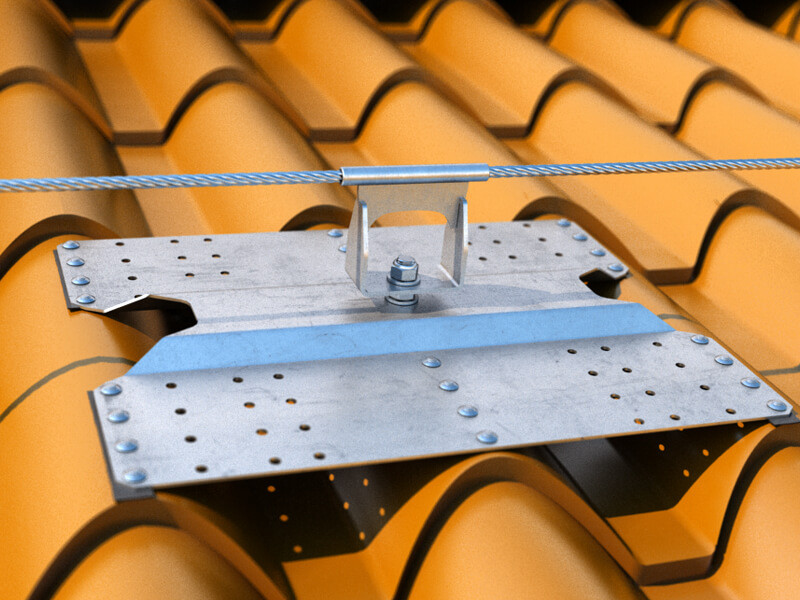

The COPPO safety device can be used both as support for an AOS01 anchor point single and as an element for an anchor line on roofs made with insulated rounded tile-effect panels.
COPPO, the discreet solution among fall protection systems for your faux-tile roof.
The COPPO ensures easy and quick installation, thanks to the configuration as a single plate and to the hole for fastening positioned so as to ensure the maximum adaptability to all roofs.

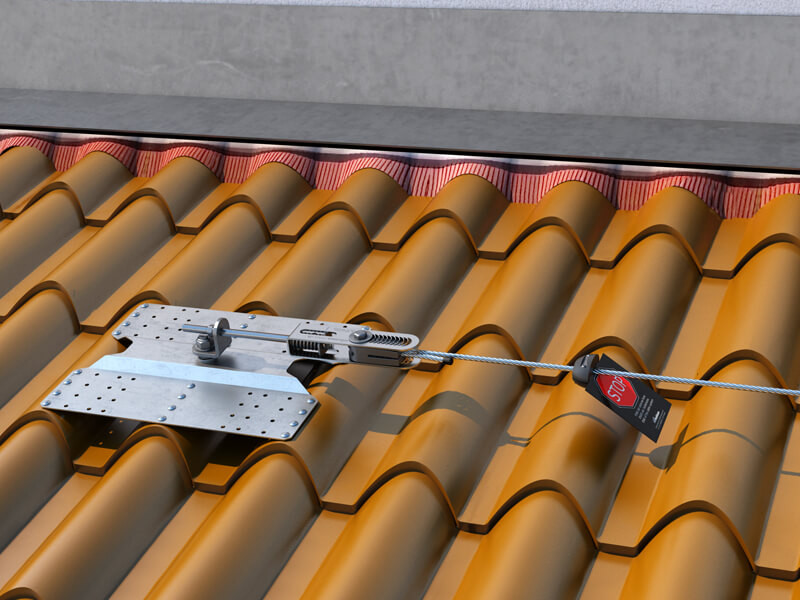

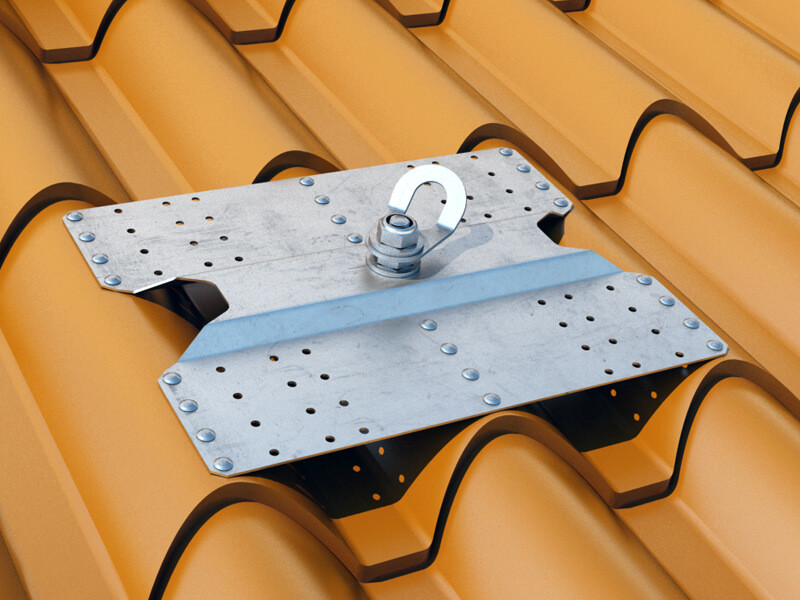

It is compatible with all the accessories of the pass-through anchor line system and of the non-pass-through anchor line system, as well as supporting the AOS01 single anchor point.

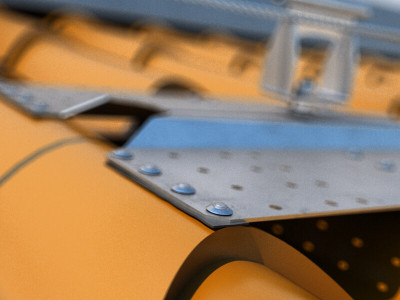

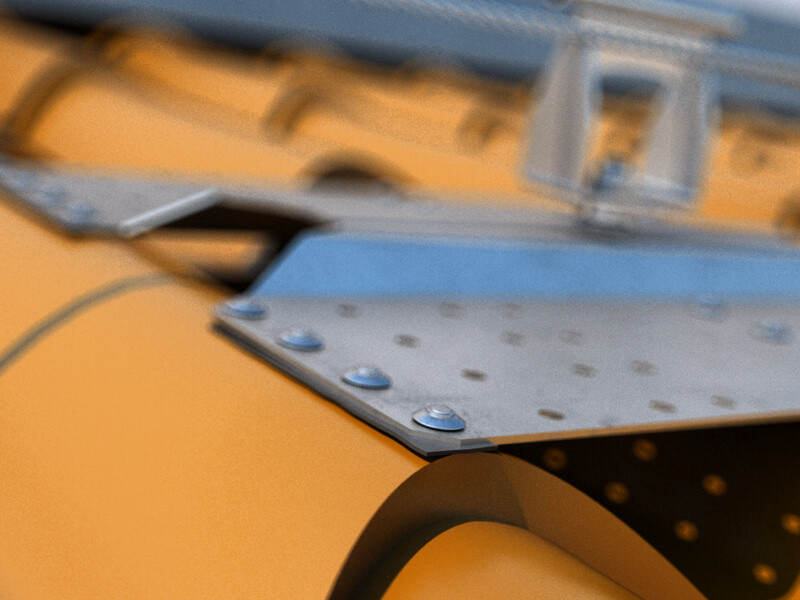

The package includes fasteners and cellular rubber seals, to ensure waterproofing of the substructure.
Maximum load: 2 users
Features
| Application | LIFE LINE, SINGLE POINT |
|---|---|
| Substructure | ROOFS WITH FAUX TILES |
| Field of use | MIN. STEEL 0,5MM - MIN. ALUMINIUM 0,7MM |
| Number of workers | 2 |
| Material | STAINLESS STEEL 1.4301 / AISI304 |
Documents
Declaration of conformity
|
|
|---|---|
Safety regulations, instructions for installation and use
|
Installation manual
| Installation manual |
|---|

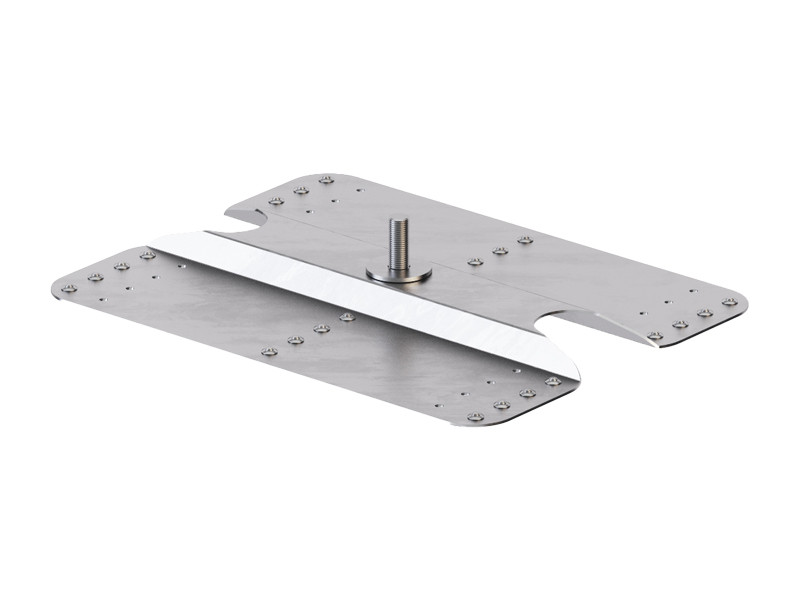

COPPO
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| COPPO | AISI 304 stainless steel grade 1.4301 | 420 | 65 | 322 | 1 |
