TIE BEAM SEALING PROFILE

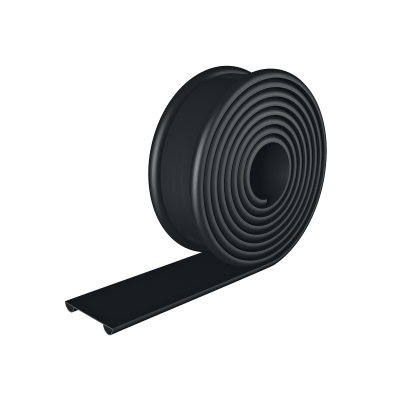

TIE-BEAM STRIPE
Ideal as wall soundproofing, TIE-BEAM STRIPE is flexible and easy to work with because of its soft, mouldable modified EPDM compound, which provides elasticity and resistance even when perforated and mechanically fastened.
APPLICATIONS

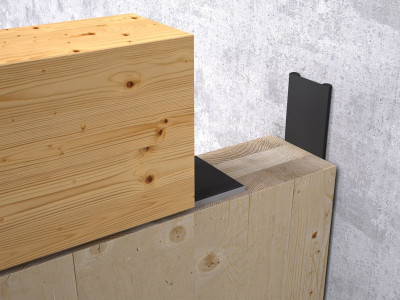

- TIE-BEAM STRIPE is the resilient profile to connect tie beam and brickwork/concrete.
- TIE BEAM STRIPE adapts well to surfaces, ensuring air and water tightness at all times. It can also be used vertically as a seal between walls.
The special EPDM compound composition ensures constant mechanical performance over time, even when subjected to cyclical loads, such as snow or other non-permanent loads. In addition, it improves the airtightness between the joints of the different elements, partially reducing the transmission of vibrations.
Documents
Technical data sheets
|
|---|
TIE-BEAM STRIPE
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| TIEBEAM71 | 71 | 9 | 50 | 2.8 | 354 | 164 | 1 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Shore A hardness | EN ISO 868 | 50 | - |
| Density | ASTM D297 | 1,1 g/cm³ | 0.64 oz/in³ |
| Compression deformation (22h + 100 °C) | EN ISO 815 | < 50 % | - |
| Breaking load | EN ISO 37 | ≥ 9 MPa | - |
| Elongation at failure | EN ISO 37 | ≥ 500 % | - |
| Application temperature | - | -40 / 90 °C | -40 / 194 °F |
| Thermal resistance | - | -40 / 100 °C | -40 / 212 °F |
| Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
| Solvents | - | no | - |
1. Store the product in a dry, covered location.
Composition
| SUPPORT | Extruded compact EPDM |
|---|
