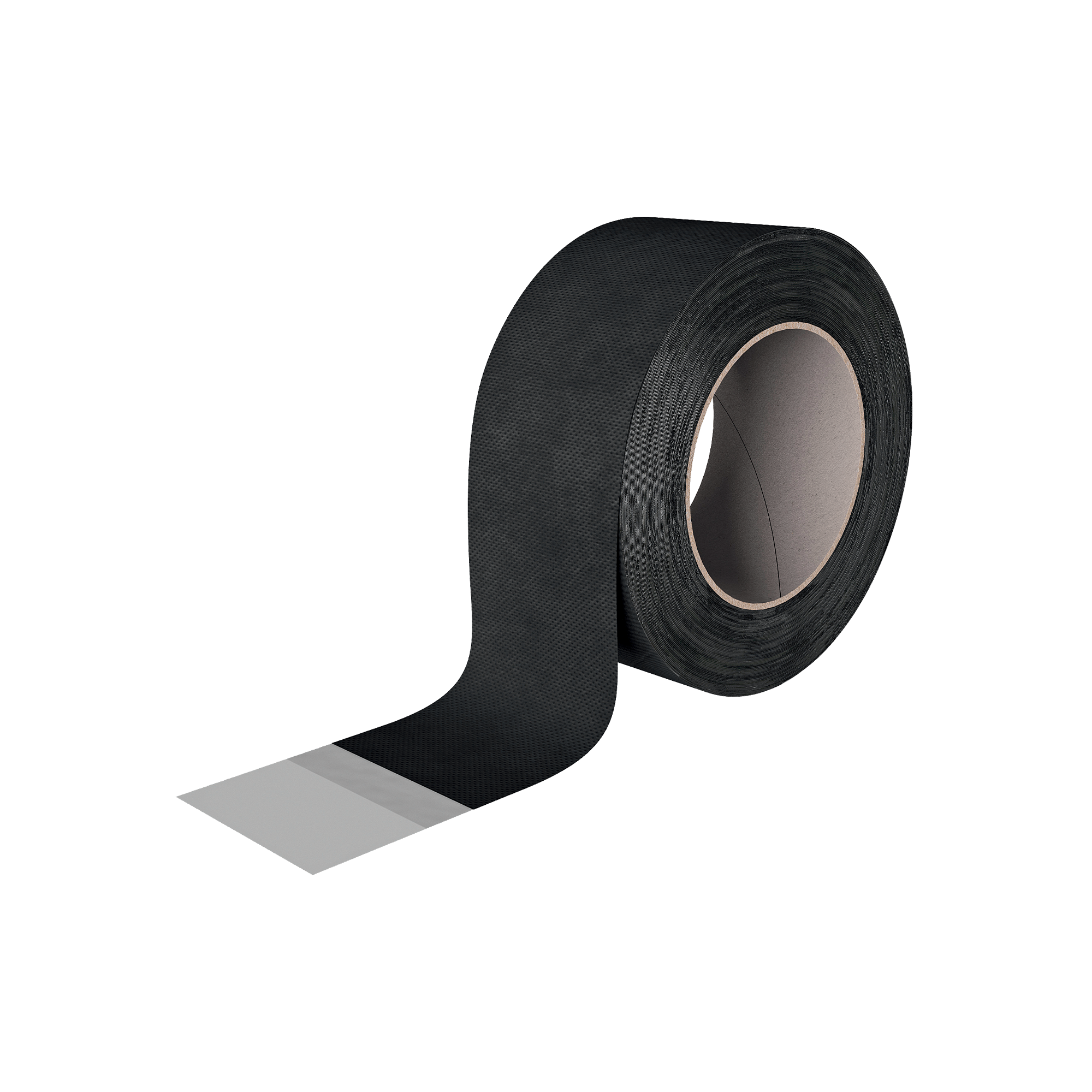

MULTI BAND
Its excellent adhesion makes it ideal for application on most surfaces, even at low temperatures.Technical fabric perfect for subsequent plastering, ensuring excellent
visual appeal by allowing the tape to be concealed behind claddings and plaster
Documents
-
Technical data sheets
MULTI BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| MULTI60 | 60 | 25 | 2.4 | 82 | 10 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,6 mm | 24 mil |
| Tensile strength | ISO 29864 | 44 N/10mm | 25.124657 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 5 N/10mm | 2.9 lbf/in |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 9 N/10mm | 5.1 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 15 N/50mm | 1.7 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1 ) | EN 12317-2 | 150 N/50mm | 17.1 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | < 1 m | < 3.497 US perm |
| Application temperature (2 ) | - | > -10 °C | > 14 °F |
| Resistance to temperature | - | -40 / 100 °C | -40 / 212 °F |
| Storage temperature (3 ) | - | 5 / 25 °C | 41 / 77 °F |
| Solvents | - | no | - |
Composition
| SUPPORT | breathable 2-layer PP membrane |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
Specifications
MULTI BAND
Supply and installation of special high-adhesion tape, also suitable for plastering, Type MULTI BAND.
Composition
From top layer to bottom layer:
-
breathable 2-layer PP membrane;
-
acrylic dispersion without solvents;
-
silicone coated paper.
Properties
-
Thickness [mm]: 0,6
-
Tensile strength [N/10 mm]: 44,0
-
Adhesion strength on OSB at 90° after 10 minutes [N/10 mm]: 5,0
-
Adhesion strength on OSB at 180° after 10 minutes [N/10 mm]: 9,0
-
Adhesion strength (average) on membrane in PP after 24 hours [N/50 mm]: 15,0
-
Shear adhesion strength of the joint on membrane in PP after 24 hours [N/50 mm]: 150,0
-
Water vapour transmission (Sd)[m]: < 1
-
Application temperature [°C]: > -10
-
Resistance to temperature [C°]: -40/+100
-
Storage temperature [C°]: +5/+25
-
Solvents: no
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.
Technical fabric perfect for subsequent plastering, ensuring excellent visual appeal by allowing the tape to be concealed behind claddings and plaster.

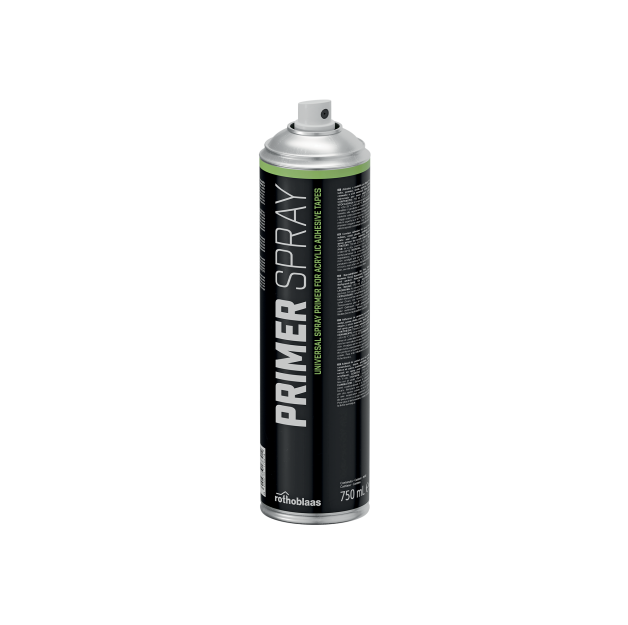

Recommended use: Suitable for application on various smooth building substrates, such as timber or OSB panels, without the need for additional surface treatment. If the tape is applied to brick or concrete surfaces, the use of a primer such as PRIMER SPRAY is recommended.
The complete list of approved application surfaces can be found in the specific instructions provided by the manufacturer.
Excellent for sealing the membranes overlapping both inside and outside. Due to the black non-woven fabric support, it is not visible behind discontinuous cladding.
Installation: Apply the tape with uniform pressure over the entire surface to ensure full contact with the support.
Once tape installation is complete, a pressure roller must be used to ensure perfect adhesion.
