UNIVERSAL SINGLE-SIDED ADHESIVE TAPE WITH HIGH UV STABILITY AND TEMPERATURE RESISTANCE

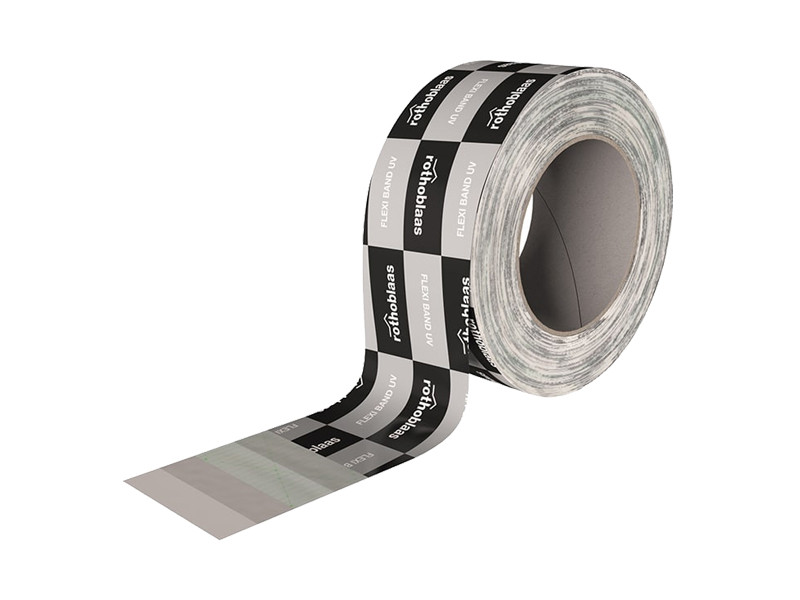

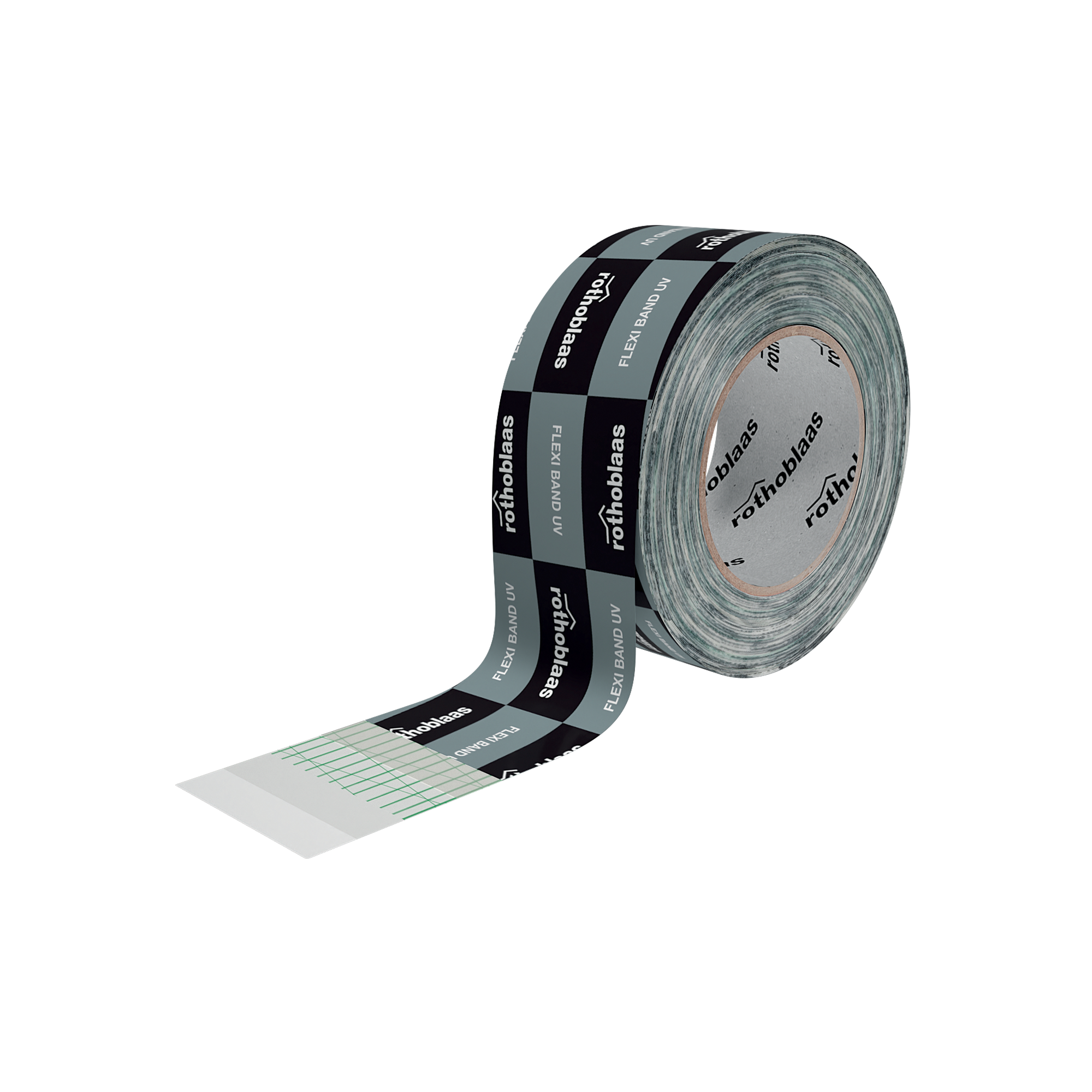

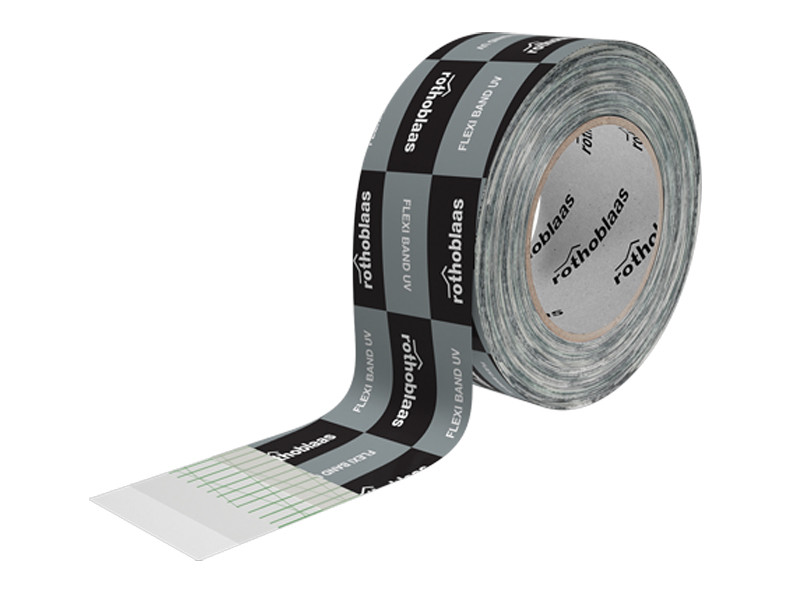

FLEXI BAND UV
FLEXI BAND UV universal tape provides a greater UV stability level and heat resistance up to 120°C: the combination of glue and polypropylene carrier provides very high thermal stability without compromising the adhesion and viscosity of the glue.
Universal tape flexi band uv: uv stability and heat resistance to your seals
The special carrier of FLEXI BAND UV universal tape is designed to offer excellent UV-rays stability, while maintaining mechanical and adhesion properties over time due to excellent ageing resistance.
The carrier is made of a special copolymer mix that ensures high elasticity and deformation capacity for the most difficult details without reducing mechanical strength.
The FLEXI BAND UV universal tape is extremely stable at high temperatures so that it does not extend at the tape edges and create problems during transport and installation.
Documents
Technical data sheets
|
|
---|---|
File BIM.rfa
|
FLEXI BAND UV
CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
---|---|---|---|---|---|
FLEXIUV60 | 60 | 25 | 2.4 | 82 | 10 |
FLEXIUV100 | 100 | 25 | 3.9 | 82 | 6 |
FLEXIUV7575 | 150 | 25 | 5.9 | 82 | 4 |
Technical Data
Property | Standard | Tested Values | USC Conversion |
---|---|---|---|
Thickness | - | 0,33 mm | 13 mil |
Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 20 m | 0.175 US perm |
Solvents | - | no | - |
Resistance to temperature | - | -40 / 120 °C | -40 / 248 °F |
Application temperature | - | ≥ -10 °C | ≥ 14 °F |
Storage temperature | - | 5 / 25 °C | 41 / 77 °F |
Tensile strength | ISO 29864 | 20 N/10mm | 11.420298 lbf/in |
Adhesion strength on steel at 180° | EN ISO 29862 | ≥ 35 N/25mm | ≥ 7.99 lbf/in |
Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 5 N/10mm | 2.9 lbf/in |
Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 28 N/50mm | 3.2 lbf/in |
Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 70 N/50mm | 8 lbf/in |
French VOC classification | ISO 16000 | A+ | - |
Exposure to weather | - | 24 month | - |
Composition
SUPPORT | PP film |
---|---|
GLUE | acrylic dispersion without solvents |
REINFORCING LAYER | polyester reinforcing grid |
GLUE | acrylic dispersion without solvents |
RELEASE LINER | silicone coated paper |
