UNIVERSAL SINGLE-SIDED HIGH-ADHESIVE TAPE

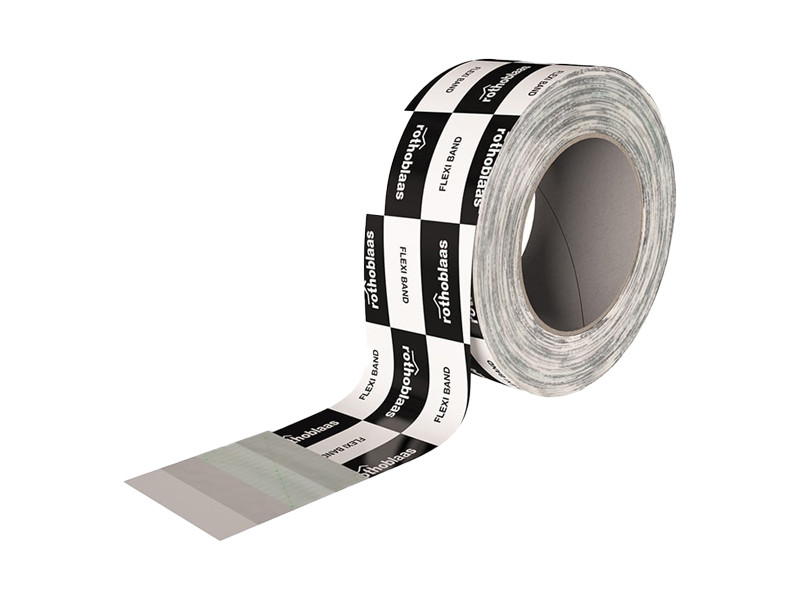

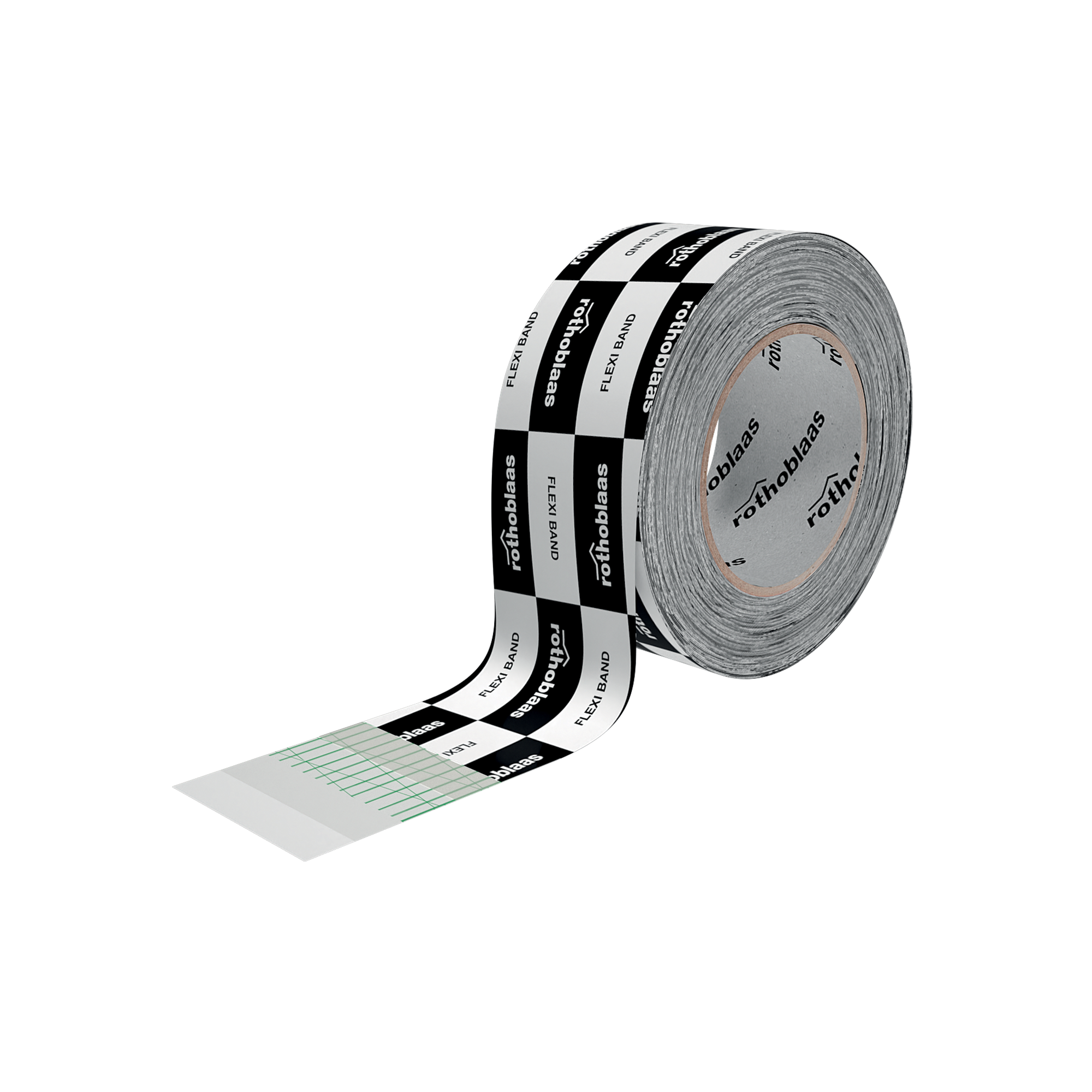

FLEXI BAND
FLEXI BAND universal tape provides excellent adhesion strength and resistance on all surfaces.
The special adhesive compound guarantees long-term functionality even under sub-optimal conditions, e.g. on dusty or damp surfaces.
Flexi band universal tape, the perfect tape for users looking for a versatile tape of outstanding quality.
The combination of carrier and acrylic dispersion glue is designed for good adhesion even in extremely cold temperatures. Thanks to the special formulation of the acrylic glue, the universal tape FLEXI BAND achieves the highest level of safety against harmful emissions.
It is among the Rothoblaas solutions tested by the PassiveHouse Institute as airtight certified components.
Documents
Technical data sheets
|
|
---|---|
Passive House Certificate
|
|
Item specification
|
|
File BIM.rfa
|
|
Fire test report
|
FLEXI BAND
CODE | liner | B
[mm]
|
L
[m]
|
liner
[in]
|
B
[in]
|
L
[ft]
|
pcs. |
---|---|---|---|---|---|---|---|
FLEXI60 | - | 60 | 25 | - | 2.4 | 82 | 10 |

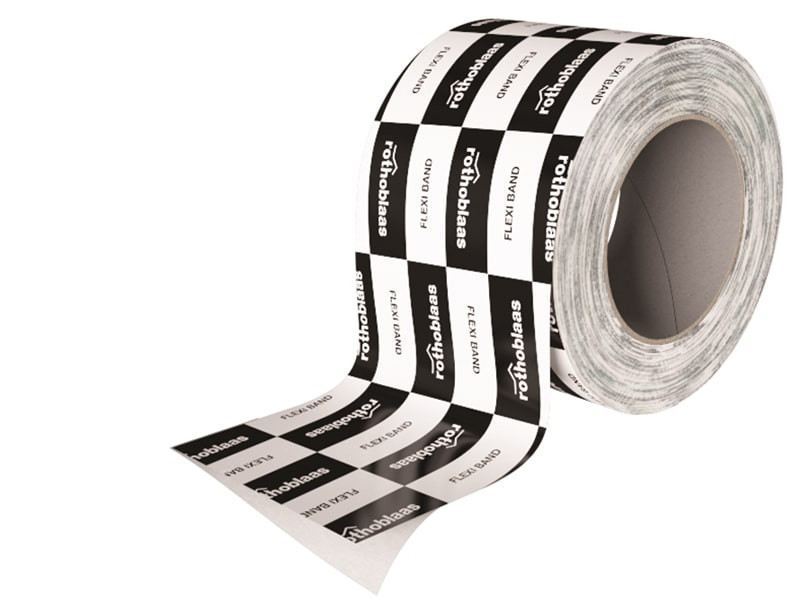

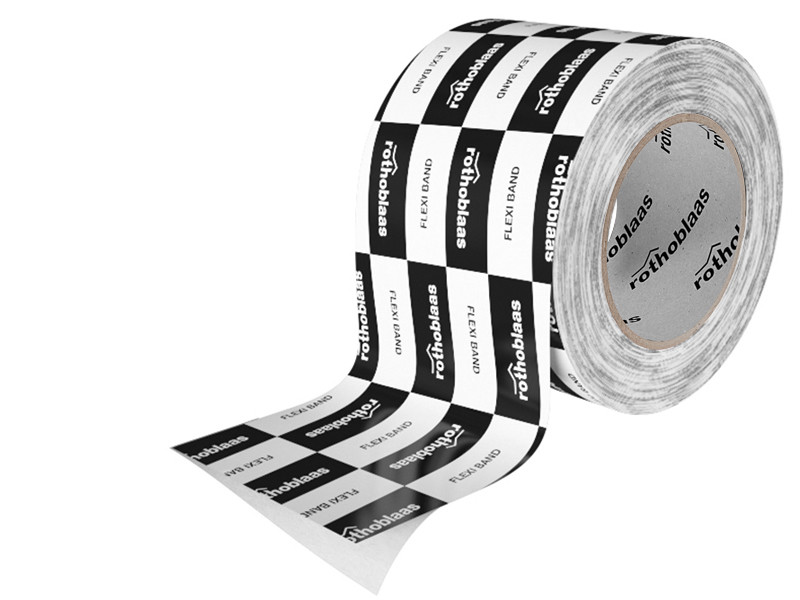

FLEXI100 | - | 100 | 25 | - | 3.9 | 82 | 6 |

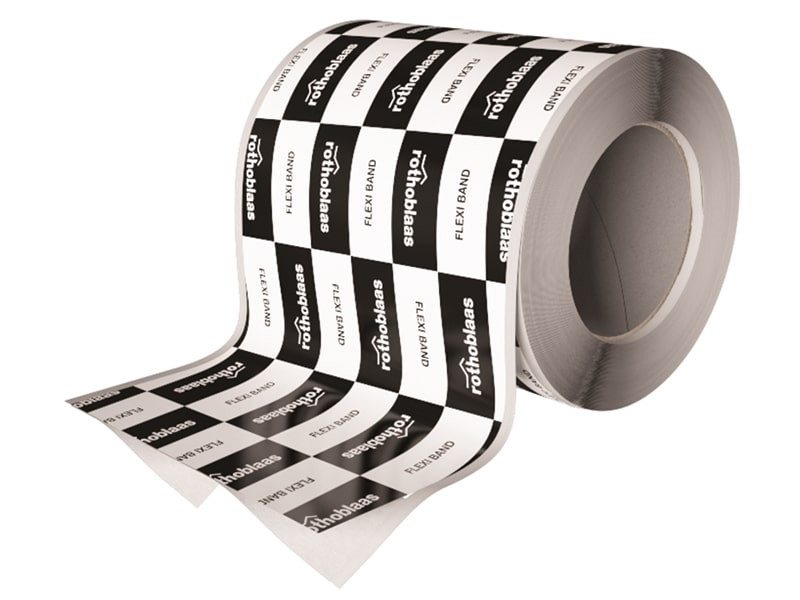

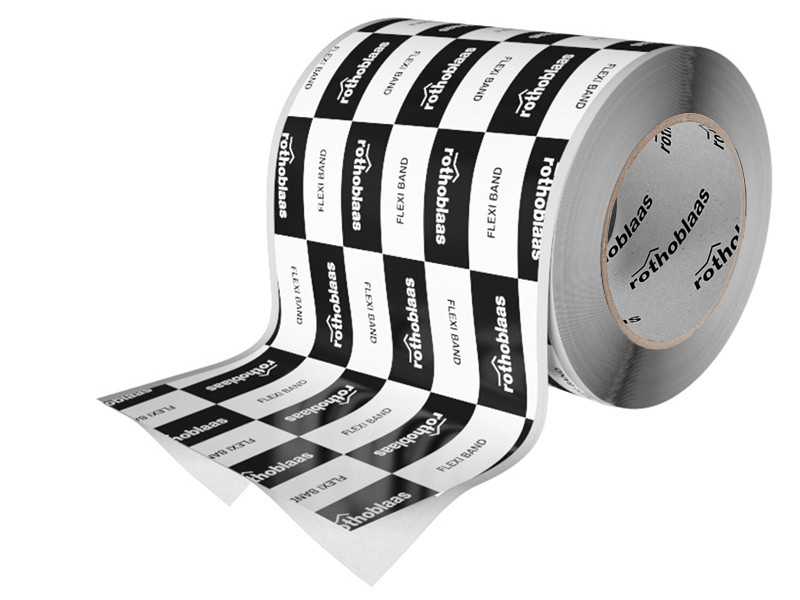

FLEXI5050 | 50/50 | 100 | 25 | 2/2 | 3.9 | 82 | 6 |
FLEXI7575 | 75/75 | 150 | 25 | 3/3 | 5.9 | 82 | 4 |
Technical Data
Property | Standard | Tested Values | USC Conversion |
---|---|---|---|
Thickness | DIN EN 1942 | 0,34 mm | 13.4 mil |
Tear strength | DIN EN 14410 | ≥ 50 N/25mm | ≥ 11.42 lbf/in |
Expansion capacity at | DIN EN 14410 | 20 % | - |
Adhesion | EN 1939 | ≥ 30 N/25mm | ≥ 6.85 lbf/in |
Water vapour transmission (Sd) | EN 1931 | ca. 45 m | ca. 0.078 US perm |
Water vapour transmission (Sd) | ASTM E96 (dry cup) | 0.11 US perm | - |
Water vapour transmission (Sd) | ASTM E96 (dry cup) | 6,27 ng/(m²·24h) | - |
UV resistance | - | 6 months | - |
VOC emissions | EN 16000 | 23 μg/m³ | - |
Emicode | procedura di prova GEV | EC1 plus | - |
Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
Application temperature | - | -10 / 40 °C | 14 / 104 °F |
Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
Composition
SUPPORT | PE film |
---|---|
GLUE | acrylic dispersion without solvents |
REINFORCING LAYER | polyester reinforcing grid |
GLUE | acrylic dispersion without solvents |
RELEASE LINER | silicone coated paper |
