HIGH-ADHESION NAIL POINT SEALANT TAPE

NAIL PLASTER | GEMINI

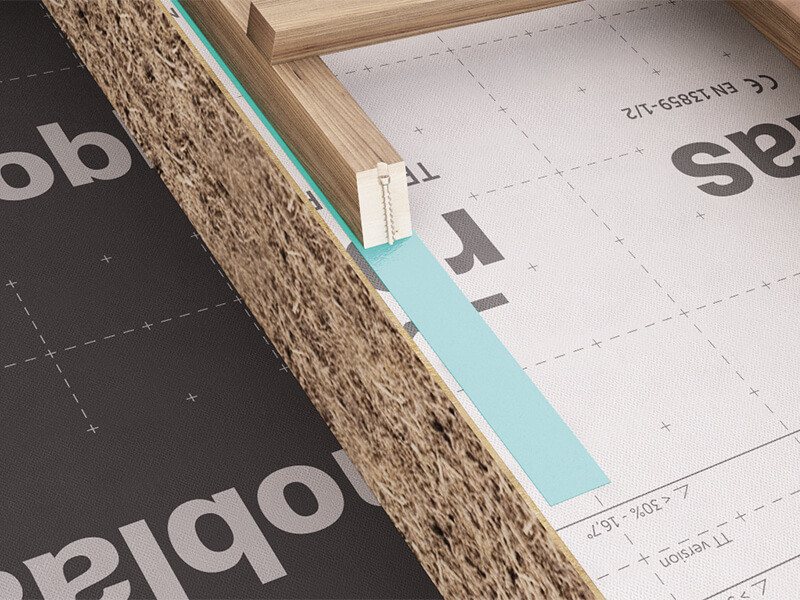

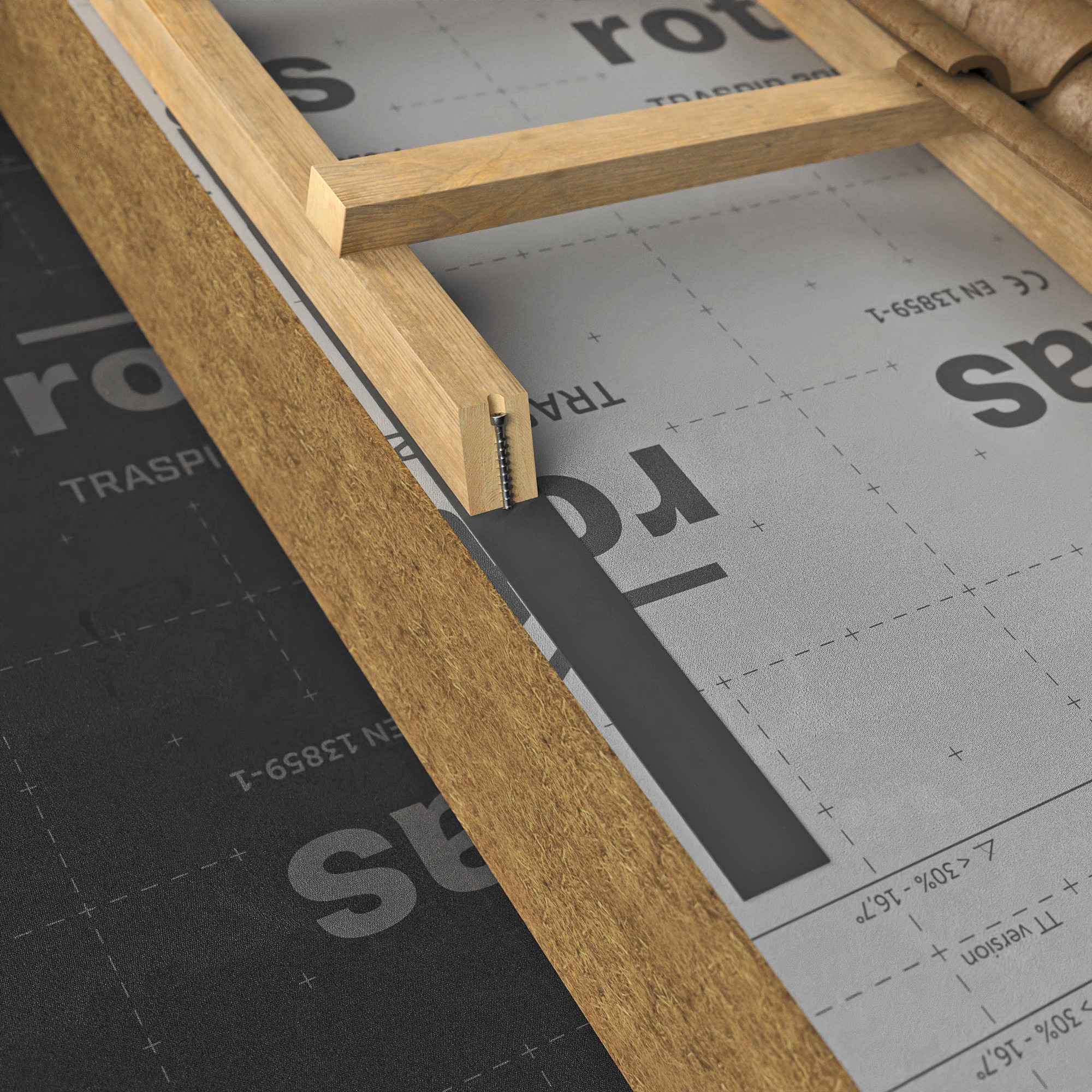

The NAIL PLASTER and GEMINI nail point sealant tapes ensure that the membranes are completely hermetically sealed at the points where the screws that secure the ventilation battens pass through.

NAIL PLASTER and GEMINI, the nail point sealant tapes for hermetic sealing of membranes

NAIL PLASTER | GEMINI
Description
Documents
Codes and dimensions
Technical Data
Composition

The closed-cell polyethylene structure of both types of high-adhesion nail sealant tapes ensures the impermeability of the hole created by the fastening systems. They are available in 5 mm thickness, 70 mm width and double-sided adhesive for more secure sealing.

The GEMINI version offers double adhesion and guarantees continuous adhesion between the membrane and batten, avoiding water accumulation in drilled points. With the help of LIZARD unwinder, installation is easy and fast, done directly on the ventilation battens.

Find the nearest agent Download the catalogue

Documents

Technical data sheets	Choose a Language

Find the nearest agent Download the catalogue

NAIL PLASTER

CODE	B [mm]	s [mm]	L [m]	B [in]	s [mil]	L [ft]	pcs.
NAILPLA350	50	3	30	2	118	98	10
NAILPLA370	70	3	30	2.8	118	98	7
NAILPLA550	50	5	10	2	197	33	6

NAIL PLASTER

CODE	B [mm]	H [mm]	s [mm]	B [in]	H [in]	s [mil]	pcs.
NAILPLA35050	50	50	3	2	2	118	6

GEMINI

CODE	B [mm]	s [mm]	L [m]	B [in]	s [mil]	L [ft]	pcs.
GEMINI60	60	3	30	2.4	118	98	8
GEMINI80	80	3	30	3.1	118	98	6

Technical Data NAIL PLASTER

Property	Standard	Tested Values	USC Conversion
Tensile strength	EN 1939	material failure	-
Solvents	-	no	-
Thermal resistance	-	-30 / 80 °C	-22 / 176 °F
Application temperature	-	≥ 5 °C	≥ 41 °F
Storage temperature ⁽¹⁾	-	5 / 25 °C	41 / 77 °F

1. Store the product in a cool, dry place for no more than 12 months.

Composition NAIL PLASTER

SUPPORT	PE foam
GLUE	synthetic rubber

Composition GEMINI

GLUE	synthetic rubber
SUPPORT	PE foam
GLUE	synthetic rubber
RELEASE LINER	silicone coated paper
