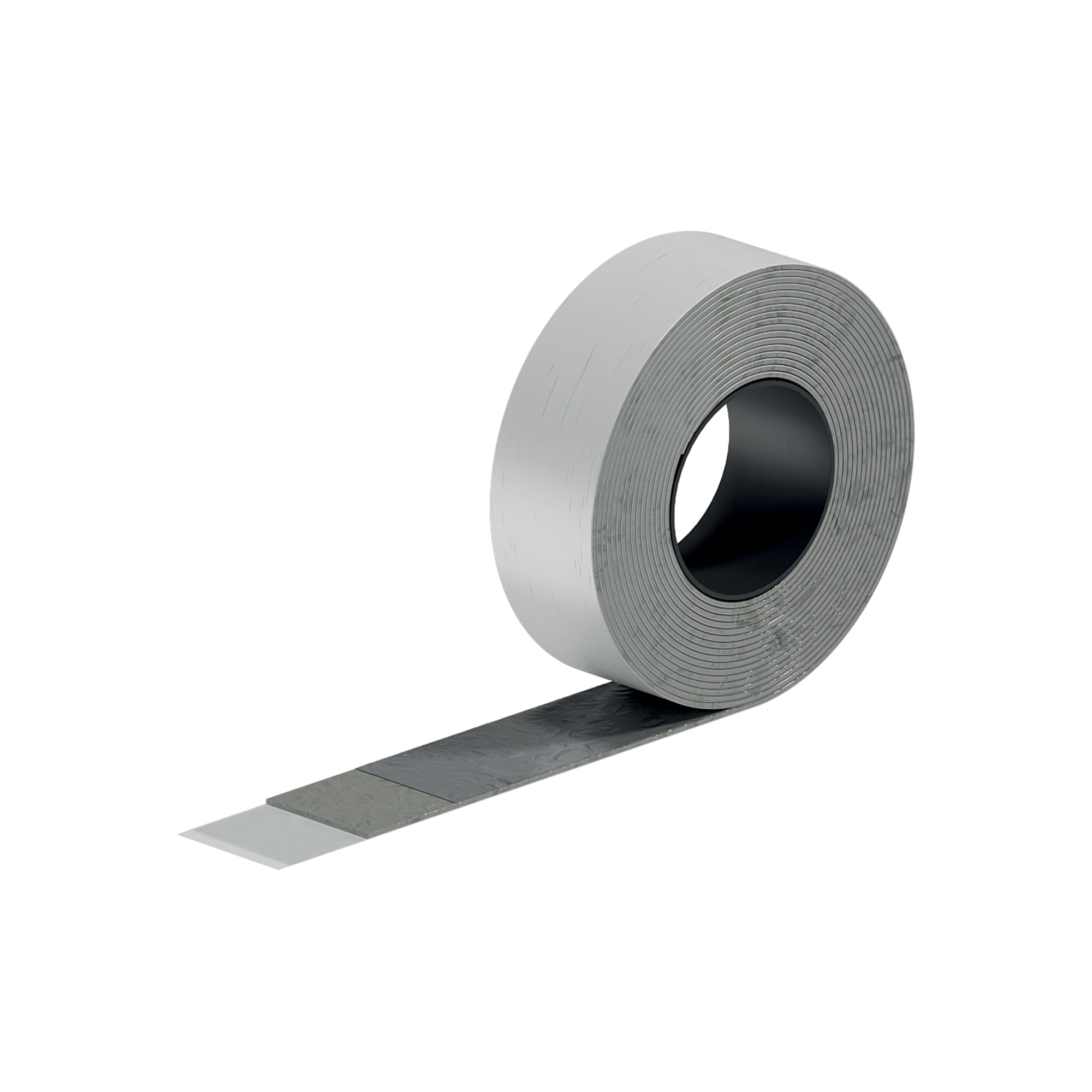

BUTYL NAIL POINT SEALANT TAPE
NAIL BAND
NAIL BAND butyl nail point sealant tape is a butyl sealant developed for sealing perforations in membranes caused by fastening ventilation battens. Thanks to its modified butyl formulation, it ensures excellent durability even when subjected to thermal stress.
Also suitable for installation at low temperatures.
NAIL BAND, the elastic and durable butyl nail point sealant tape.

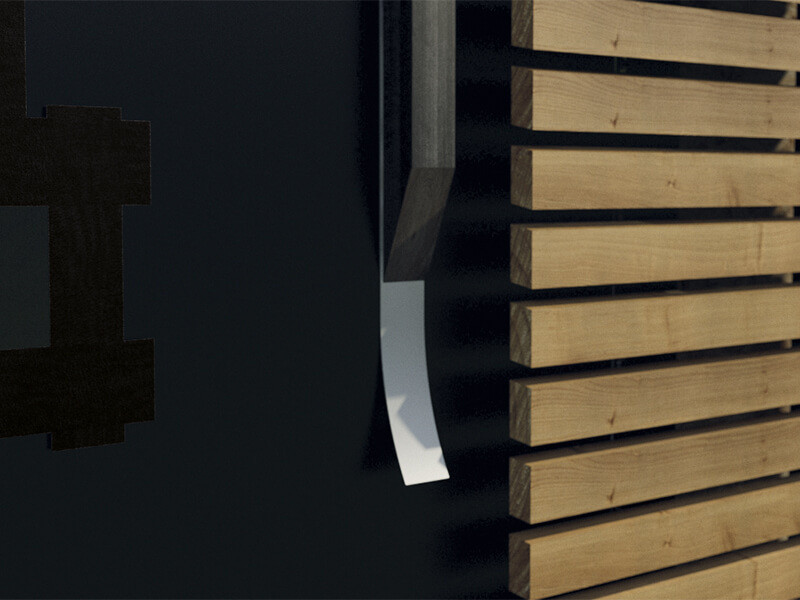

NAIL BAND is a self-sealing nail point tape: due to its elasticity, butyl tends to seal around the screw or nail used to fix the battens or elements on which it is installed.
Butyl ensures excellent adhesion to supports in harsh environmental conditions, and provides excellent durability even when subjected to thermal stress, maintaining elasticity and impermeability over time.
Documents
Technical data sheets
|
|---|
NAIL BAND
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| NAILBAND50 | 50 | 1 | 15 | 2 | 39 | 49 | 12 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,8 mm | 31.5 mil |
| Tensile strength MD/CD | EN 12311-1 | 40 / 40 N/50mm | 4.57 / 4.57 lbf/in |
| Elongation at break point MD/CD | EN 12311-1 | 600 / 600 % | - |
| Peel adhesion at 180° | ASTM D1000 | 20 N/cm | 11.42 lbf/in |
| Initial Tack | ASTM D2979 | 8 N | 1.8 lbf |
| Vertical sliding | ISO 7390 | 0 mm | - |
| VOC emissions | EN 16000 | 30 μg/m³ | - |
| Thermal resistance | - | -30 / 90 °C | -22 / 194 °F |
| Application temperature | - | 0 / 40 °C | 32 / 104 °F |
| Storage temperature (1) | - | 5 / 40 °C | 41 / 104 °F |
Composition
| SUPPORT | - |
|---|---|
| GLUE | grey adhesive butyl compound |
| RELEASE LINER | silicone coated paper |
