SEALING SLEEVE FOR CONDUIT AND CABLE PASSAGE
MANICA FLEX
MANICA FLEX sealing sleeve ensures airtightness and watertightness for cables and other pass through elements.

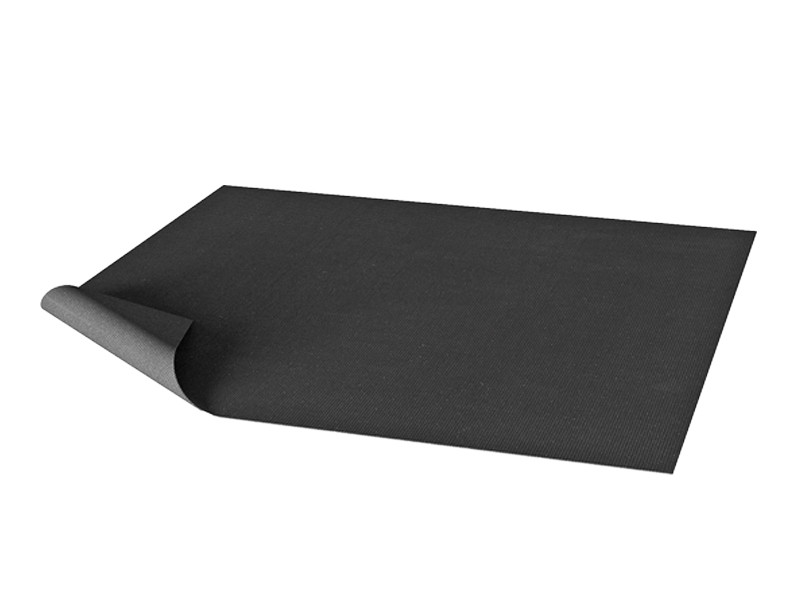

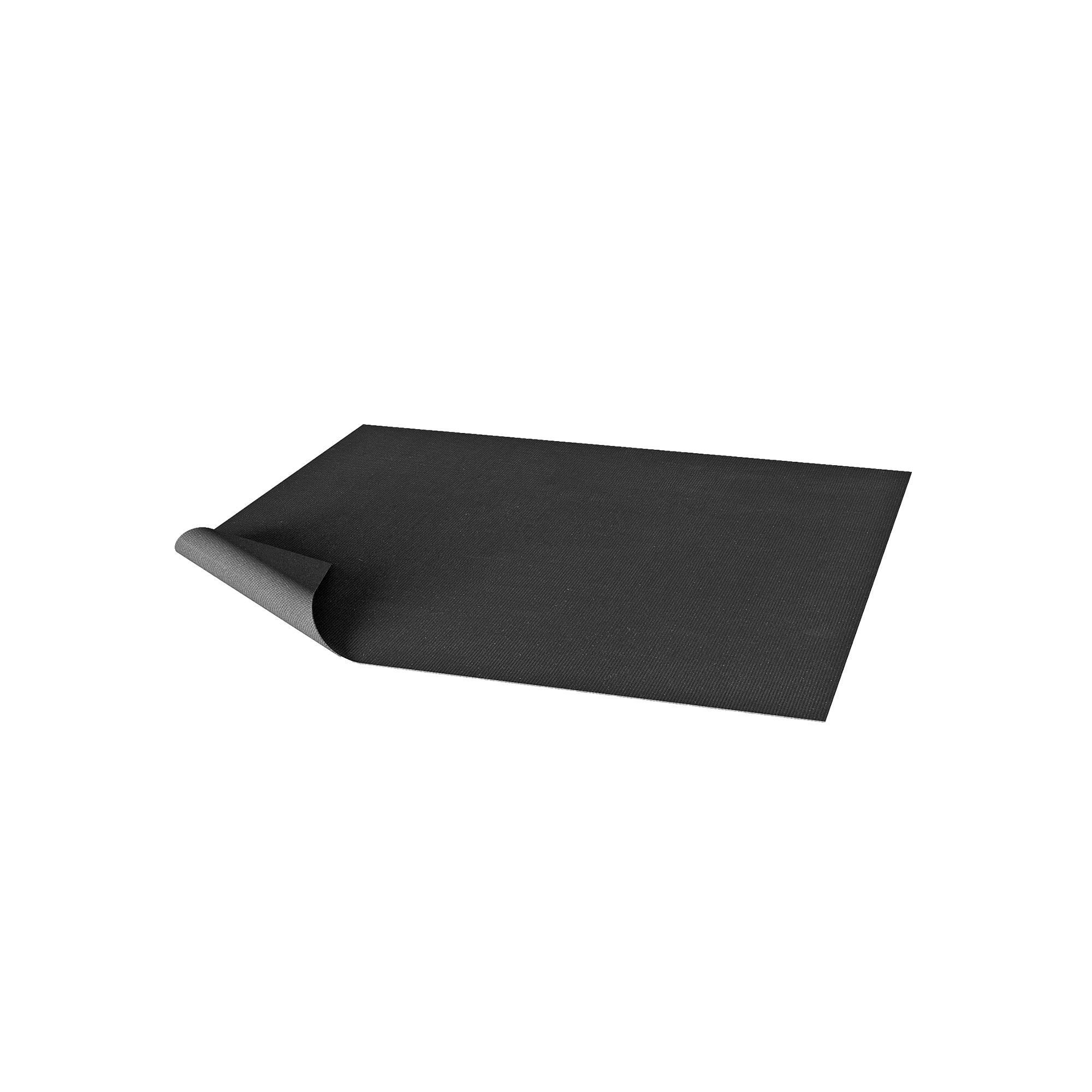

It is available in several variants in weldable TPU or EPDM to ensure tightness in different situations.

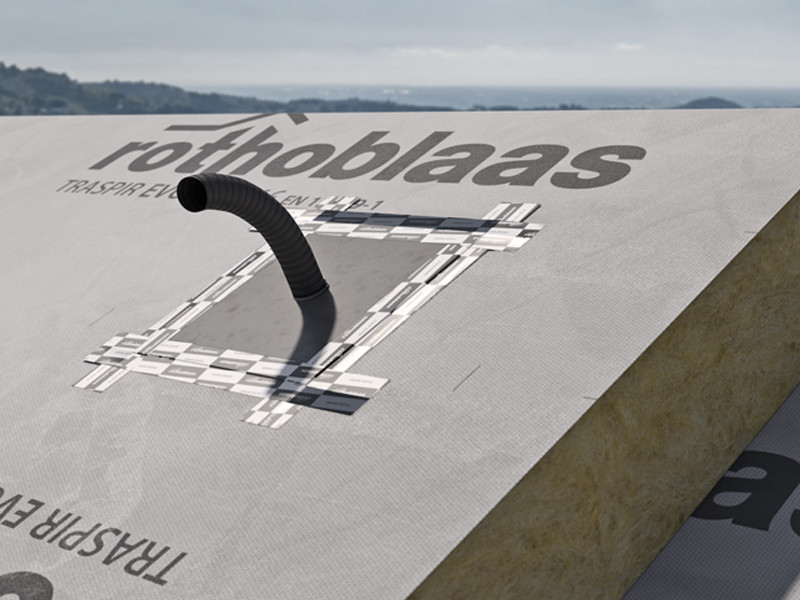

MANICA FLEX, the sealing sleeve that makes pipes and cables watertight
Both versions of MANICA FLEX sealing sleeve can be quickly sealed with a Rothoblaas tape and can be repositioned. The TPU version can be heat or chemically sealed.

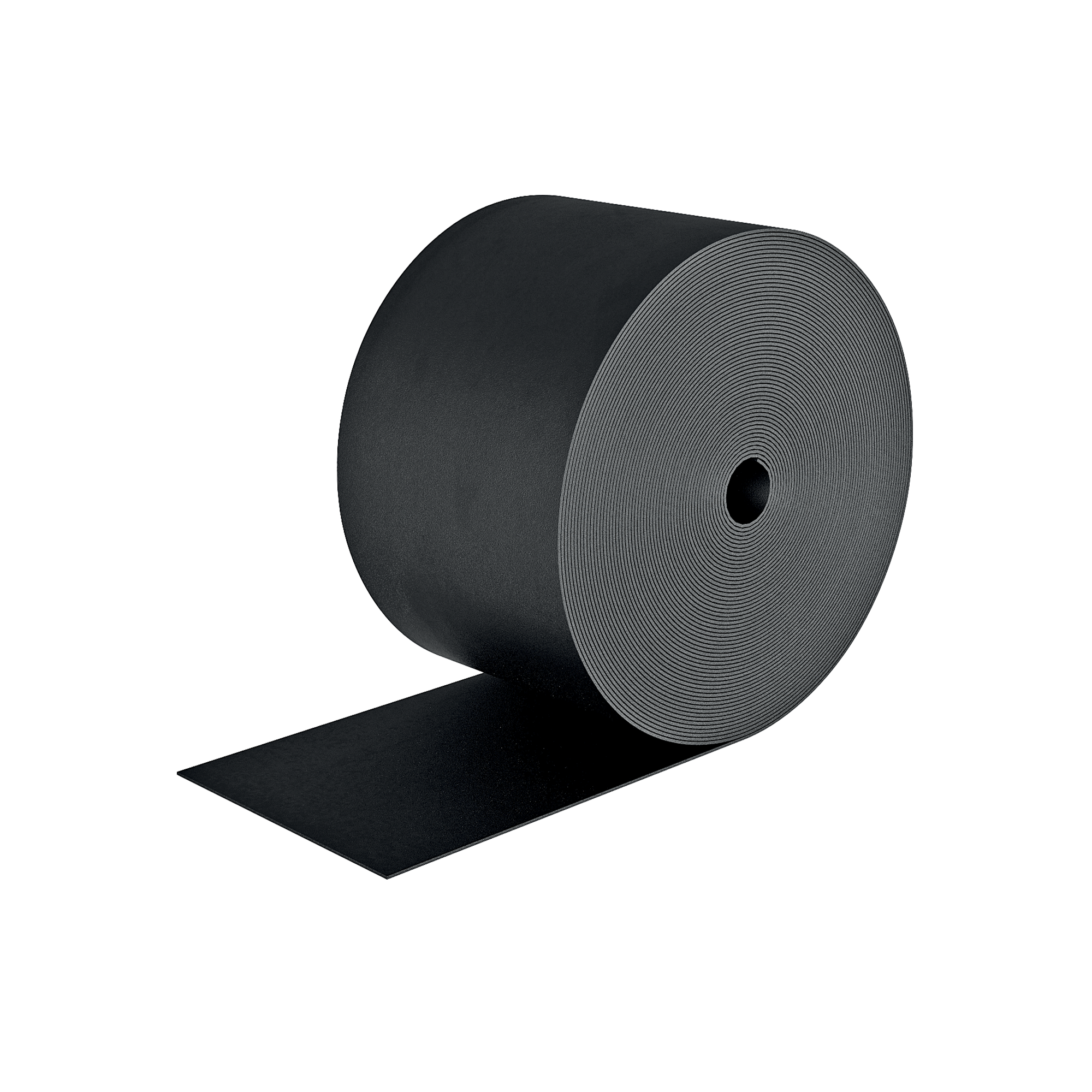

The EPDM version is supplied in handy rolls, so that you can cut it to the required size without having to order several sizes.
In addition, numerous through elements can be sealed with a single sleeve as it can be perforated at several points as required.
Documents
Technical data sheets
|
|---|
MANICA FLEX - EPDM
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| MANFEPDM100 | 100 | 1 | 10 | 3.9 | 39 | 33 | 1 |
| MANFEPDM150 | 150 | 1 | 10 | 5.9 | 39 | 33 | 1 |
MANIC FLEX - TPU
| CODE | B
[mm]
|
s
[mm]
|
H
[mm]
|
B
[in]
|
s
[mil]
|
H
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|
| MANFTPU300 | 300 | 0.4 | 300 | 11.8 | 16 | 11.8 | 10 |
| MANFTPU430 | 430 | 0.4 | 430 | 16.9 | 16 | 16.9 | 10 |
