SEALING SLEEVE WITH SHRINK TUBING AND CLAMP

MANICA

New

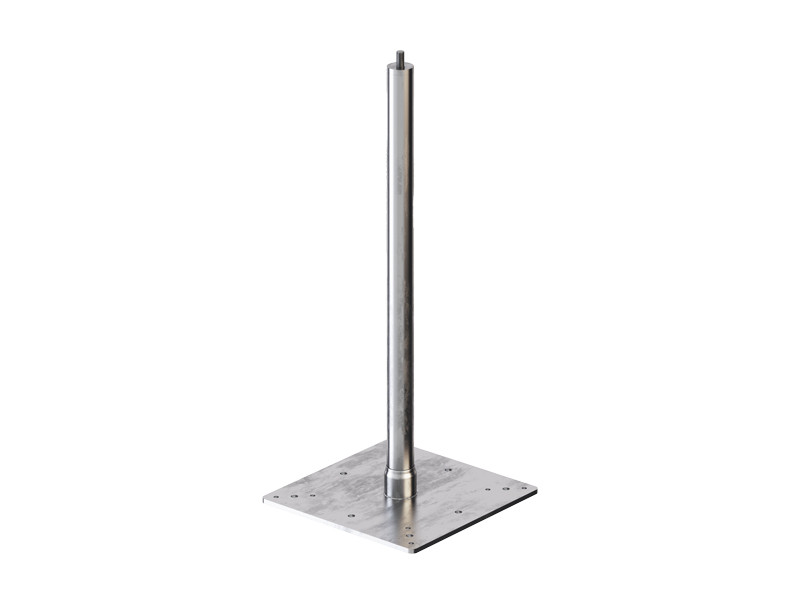

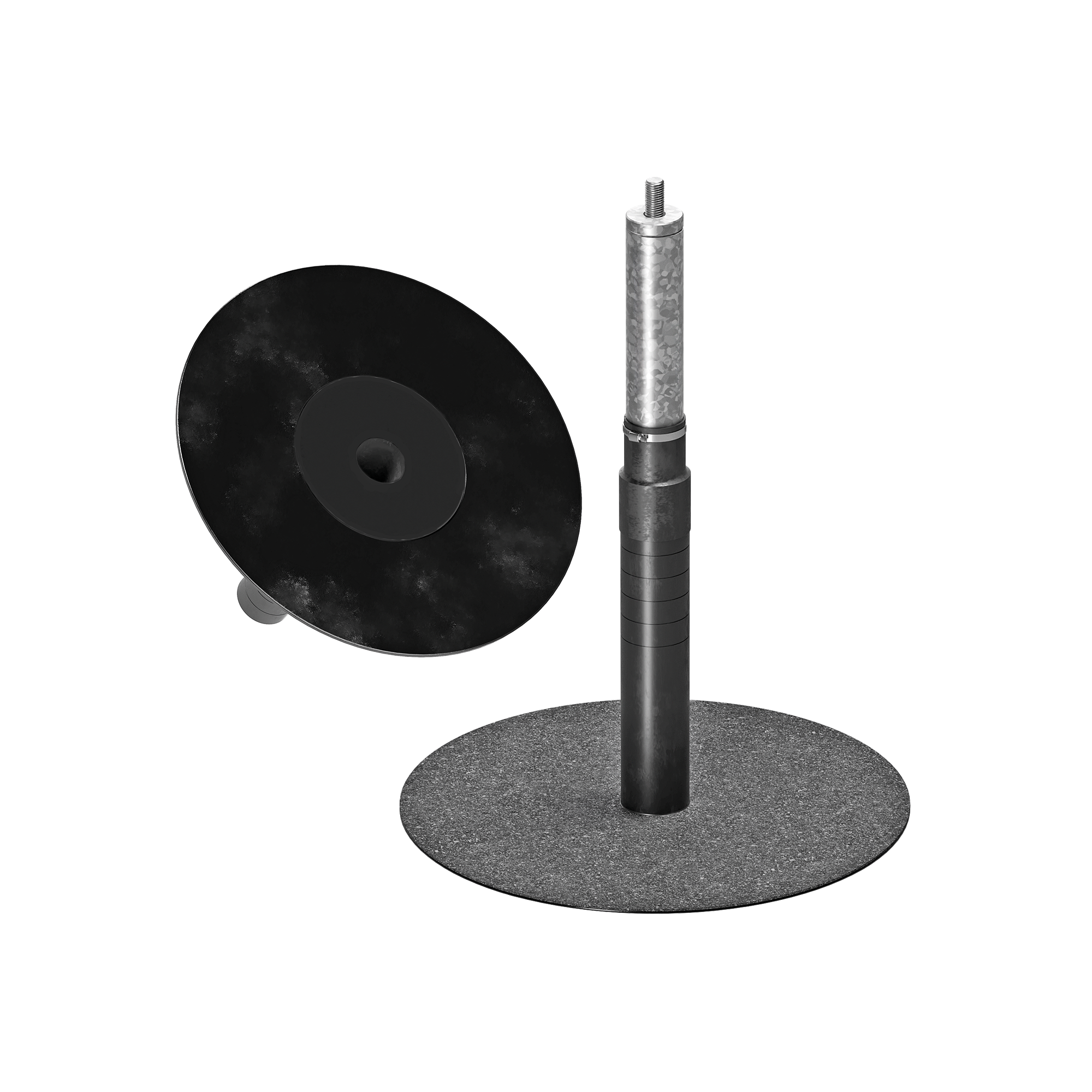

MANICA ensures the impermeability of the substructure, typically after the installation of lifeline supports such as TOWER.

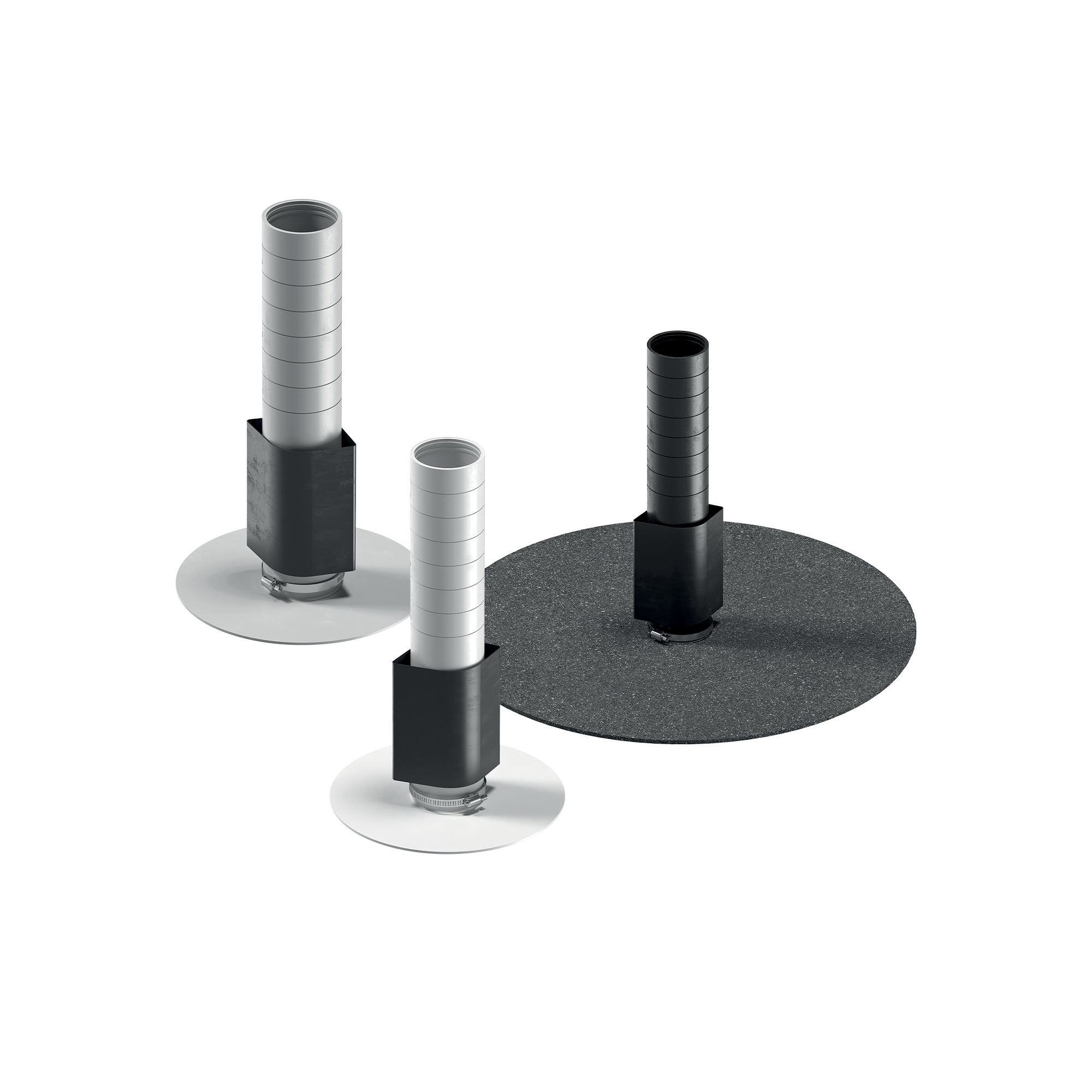

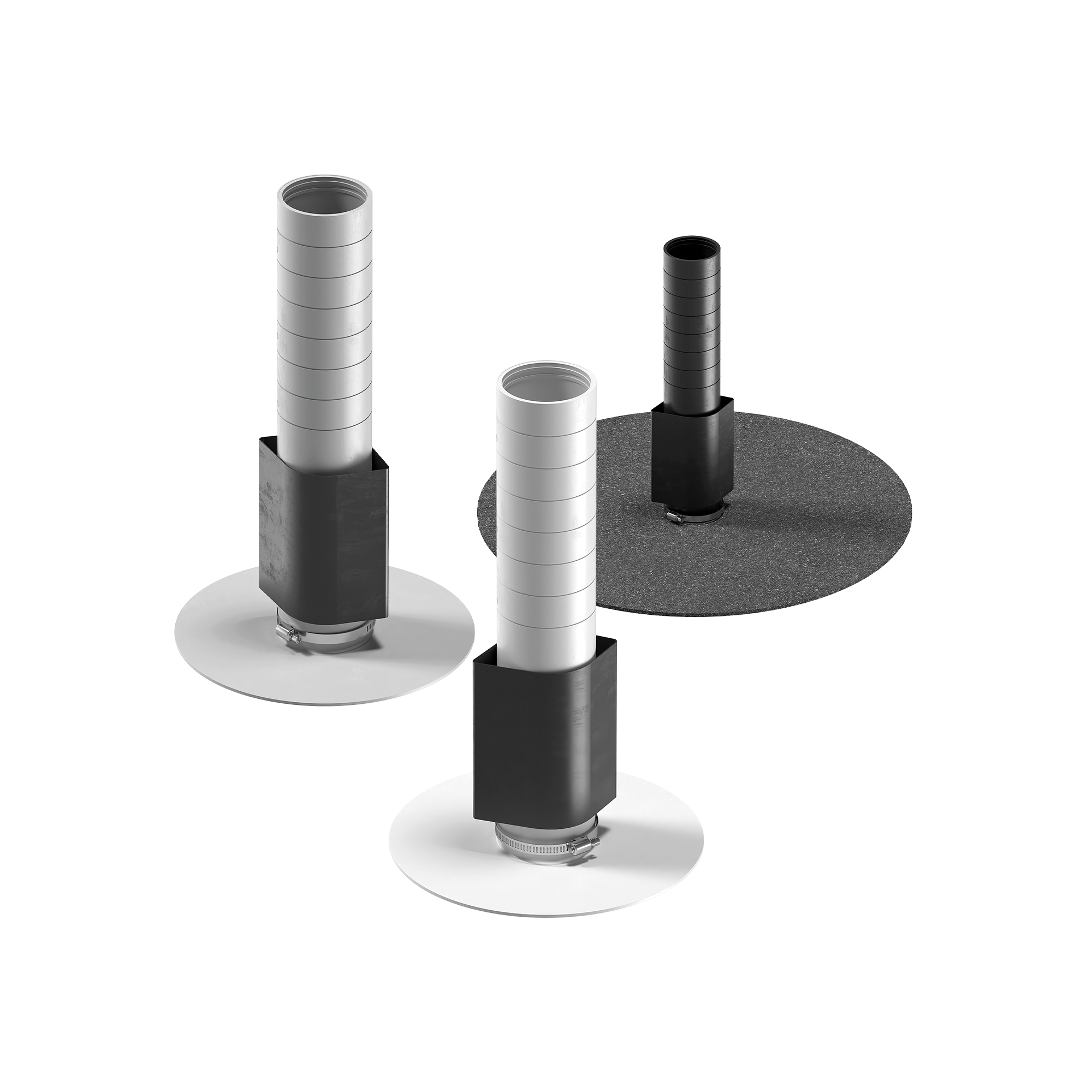

The three sleeve models, in slated bituminous concrete, PVC and FPO/PP make it possible to choose the most suitable material based on the pre-existing waterproofing sheath.

The materials that make up MANICA are weather-resistant, stabilised against UV radiation, resistant to high and low temperatures, oxidation and ageing.

CHARACTERISTICS

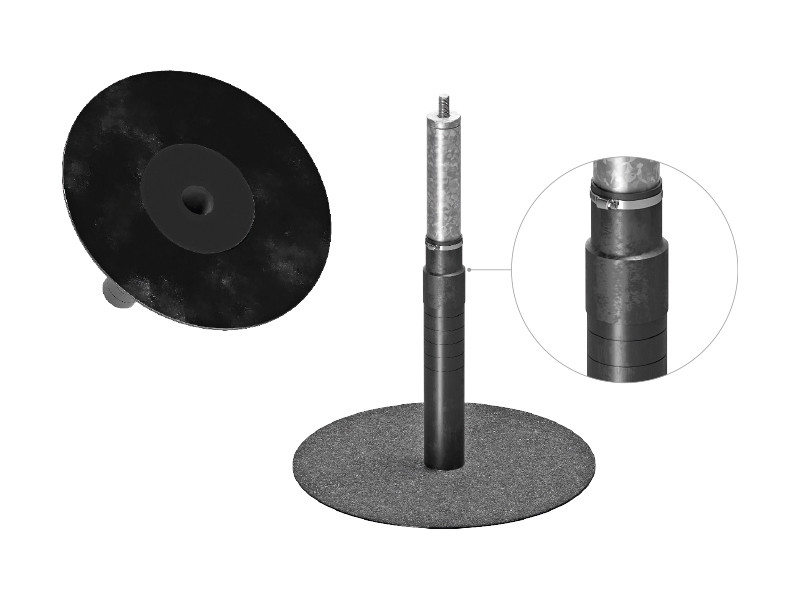

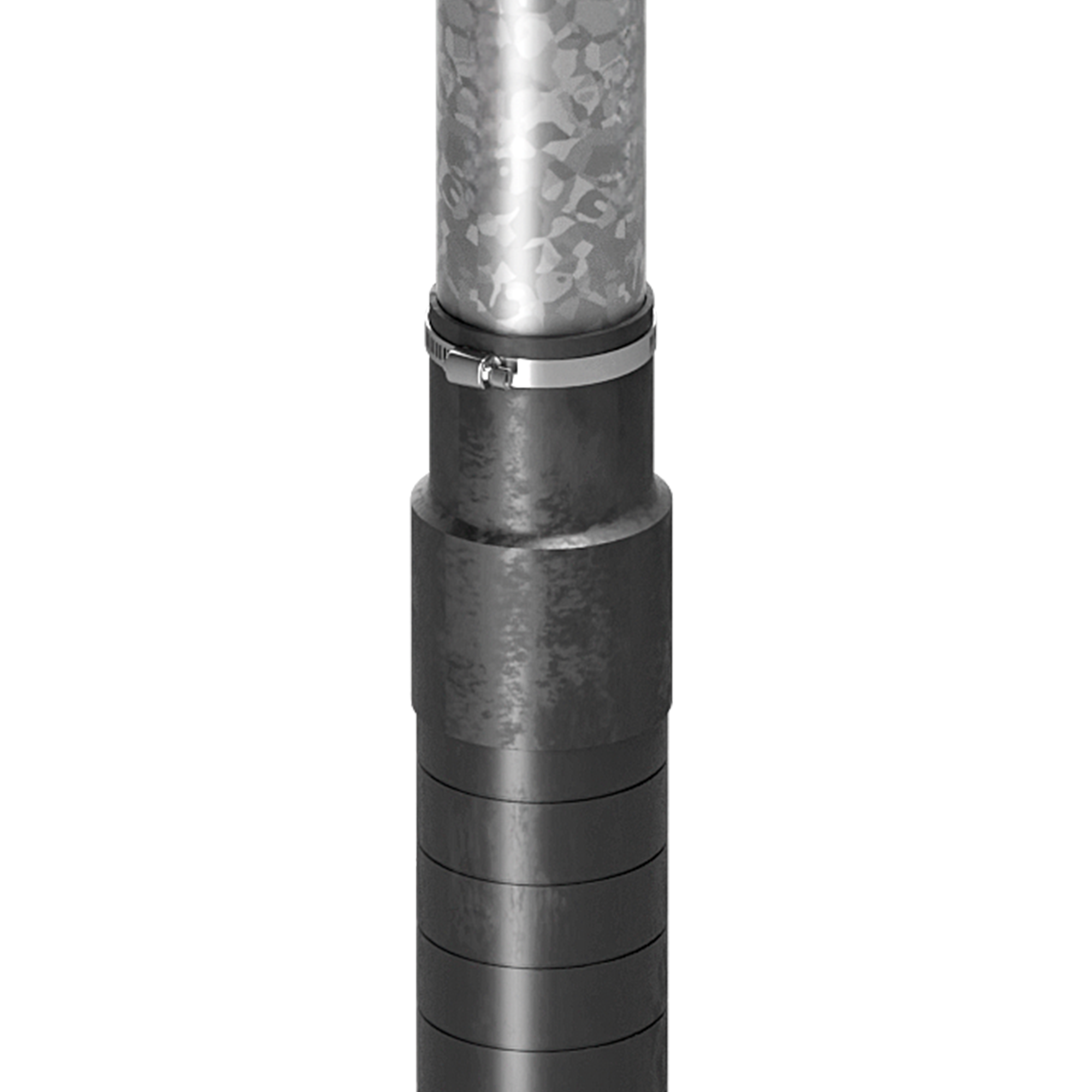

MANICA is the ultimate solution for sealing and protecting the substructure, typically after the installation of lifeline supports. Using heat-shrink technology, MANICA ensures a perfect fit and lasting protection against seepage and damage. Installation through heat application is simple and effective, and the integrated clamp provides an additional level of security against seepage.

MANICA has been tested in the laboratory and in the field and has consistently exceeded expectations in terms of durability and strength, proving its reliability even under extreme environmental conditions.

Documents

Technical data sheets

MANICA

CODE description material H
[mm]
d₁
[mm]
s
[mm]
minimo vendibile

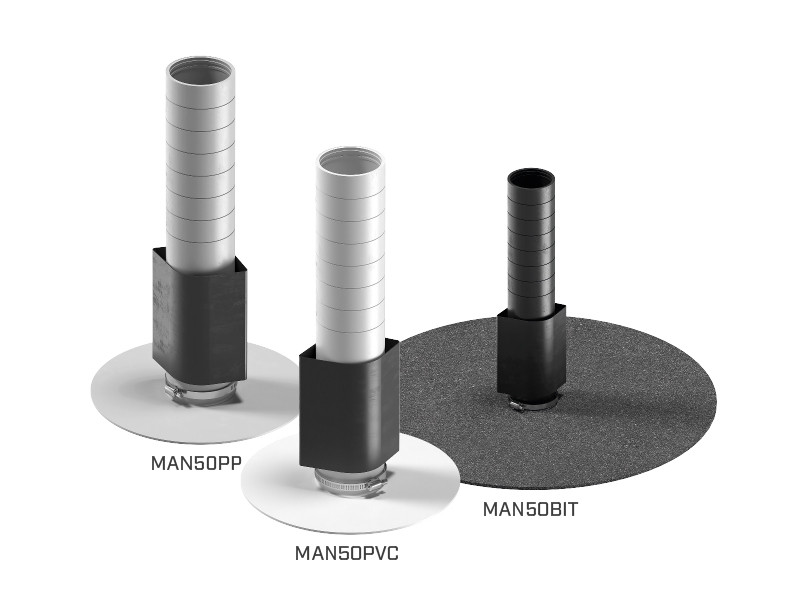

MAN50BIT sealing sleeve with shrink tubing and clamp PVC; slated bituminous 210 50 3 1
MAN50PVC sealing sleeve with shrink tubing and clamp PVC 300 50 2 1
MAN50PP sealing sleeve with shrink tubing and clamp FPO/PP 300 50 2 1
