DOUBLE-SIDED UNIVERSAL BUTYL TAPE
BUTYL BAND

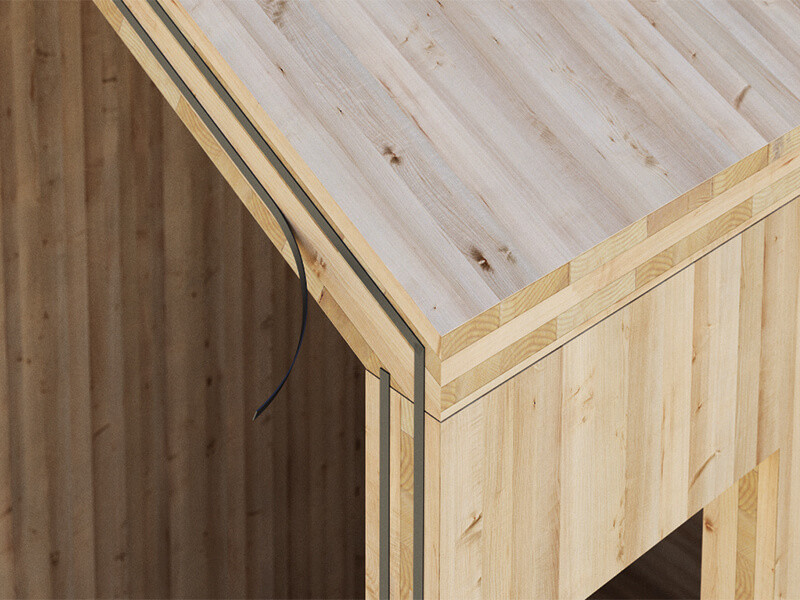

BUTYL BAND is a double-sided butyl tape for hermetically sealing timber-to-timber and/or timber-to-concrete joints, particularly suitable for sealing small gaps.
Available in 2 sizes, BUTYL BAND guarantees a high adhesive power on all the materials normally used in the building industry.
BUTYL BAND, the effective and durable universal double-sided butyl tape
BUTYL BAND, the universal double-sided butyl tape, is strong thanks to its polyester reinforcement mesh.
Thanks to its special modified butyl formulation, it ensures excellent durability even when subjected to thermal stress and UV radiation.
Butyl is also perfectly suited for installation in tight spaces and on irregular profiles without resistance.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
BUTYL BAND
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| BUTYLBAND1501 | 15 | 1 | 15 | 0.6 | 39 | 49 | 20 |
| BUTYLBAND1502 | 15 | 2 | 10 | 0.6 | 79 | 33 | 13 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Tensile strength MD/CD | EN 12311-1 | 115 / 140 N/50mm | 13 / 16 lbf/in |
| Elongation MD/CD | EN 12311-1 | 15 / 15 % | - |
| Adhesion strength on steel at 180° | ASTM D1000 | 31 N/10mm | 17.7 lbf/in |
| Initial Tack | ASTM D2979 | 9 N | 2 lbf |
| Reaction to fire | EN 13501-1 | class E | - |
| Solvents | - | no | - |
| French VOC classification | ISO 16000 | A+ | - |
| Resistance to temperature | - | -40 / 130 °C | -40 / 266 °F |
| Application temperature | - | 0 / 45 °C | 32 / 113 °F |
| Storage temperature | - | 0 / 50 °C | 32 / 122 °F |
| VOC emissions | EN 16516 | very low | - |
| Exposure to weather | - | 2 weeks | - |
