REFLECTING BUTYL ADHESIVE TAPE
ALU BUTYL BAND
ALU BUTYL BAND is the ideal reflective butyl adhesive tape for a wide variety of uses.

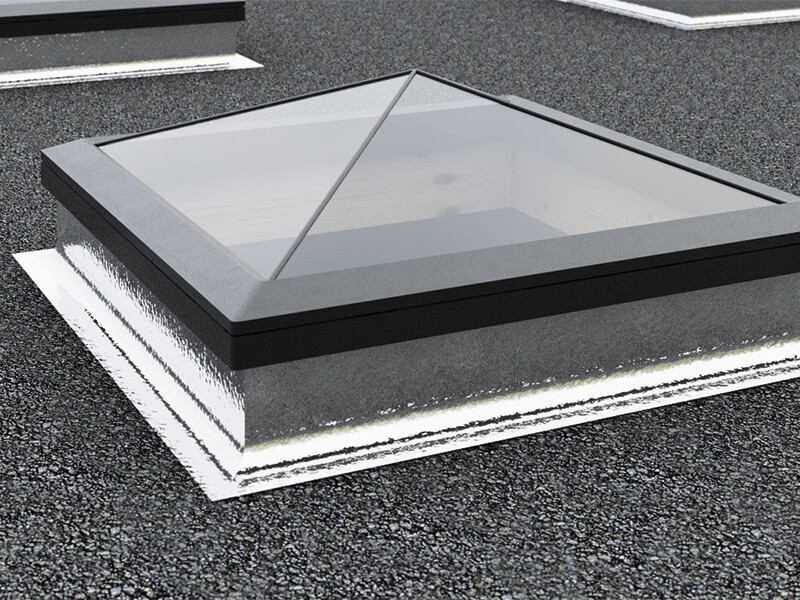

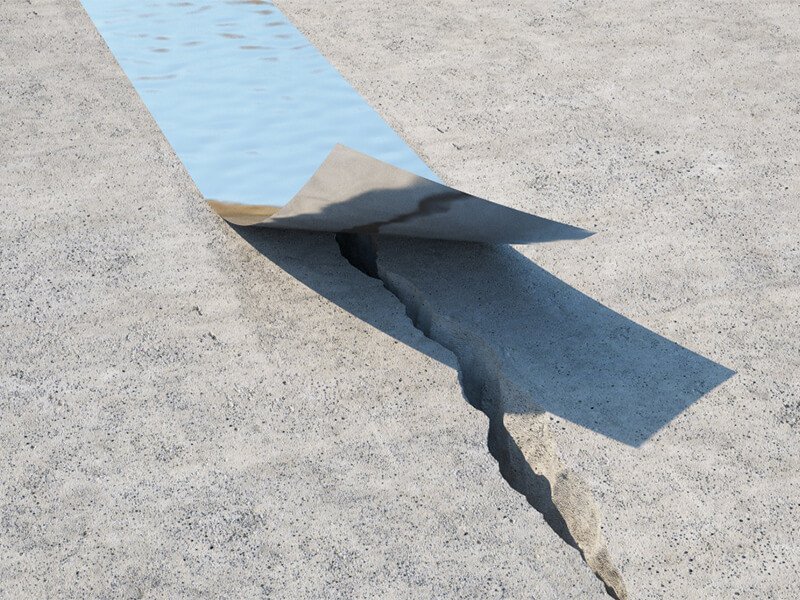

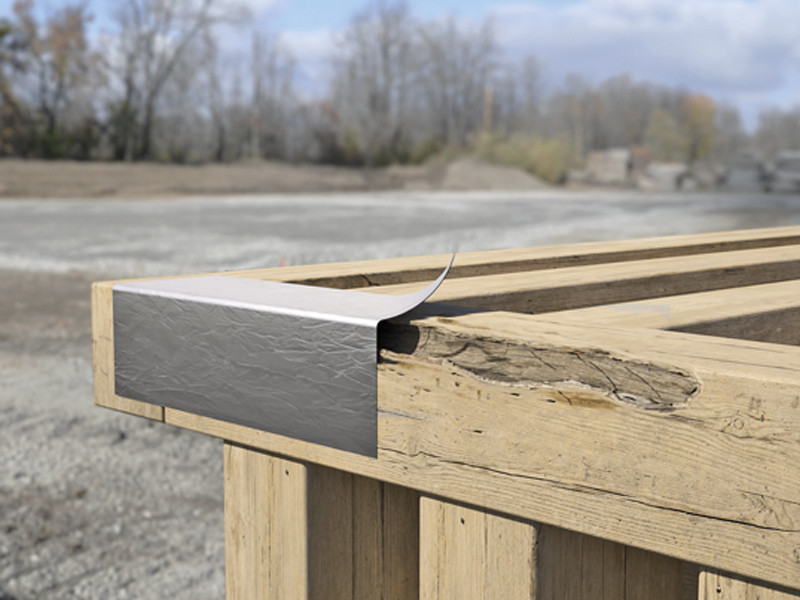

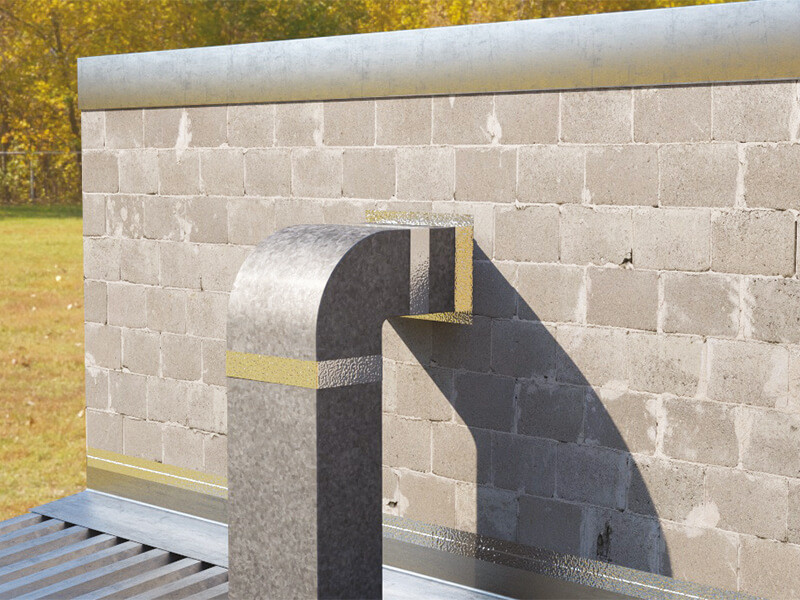

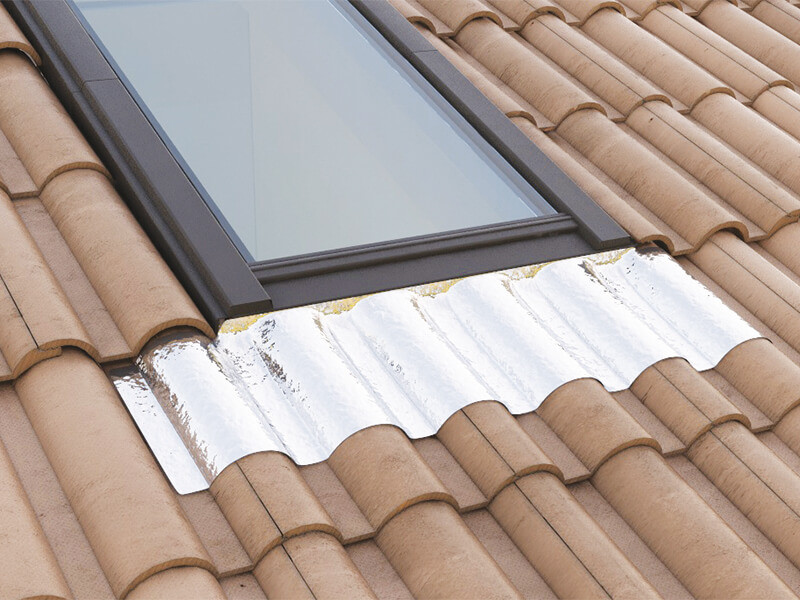

Widely used in building roofing, repair of surface cracks, repair of motor homes, windows, boat seals, glazing and roofing.

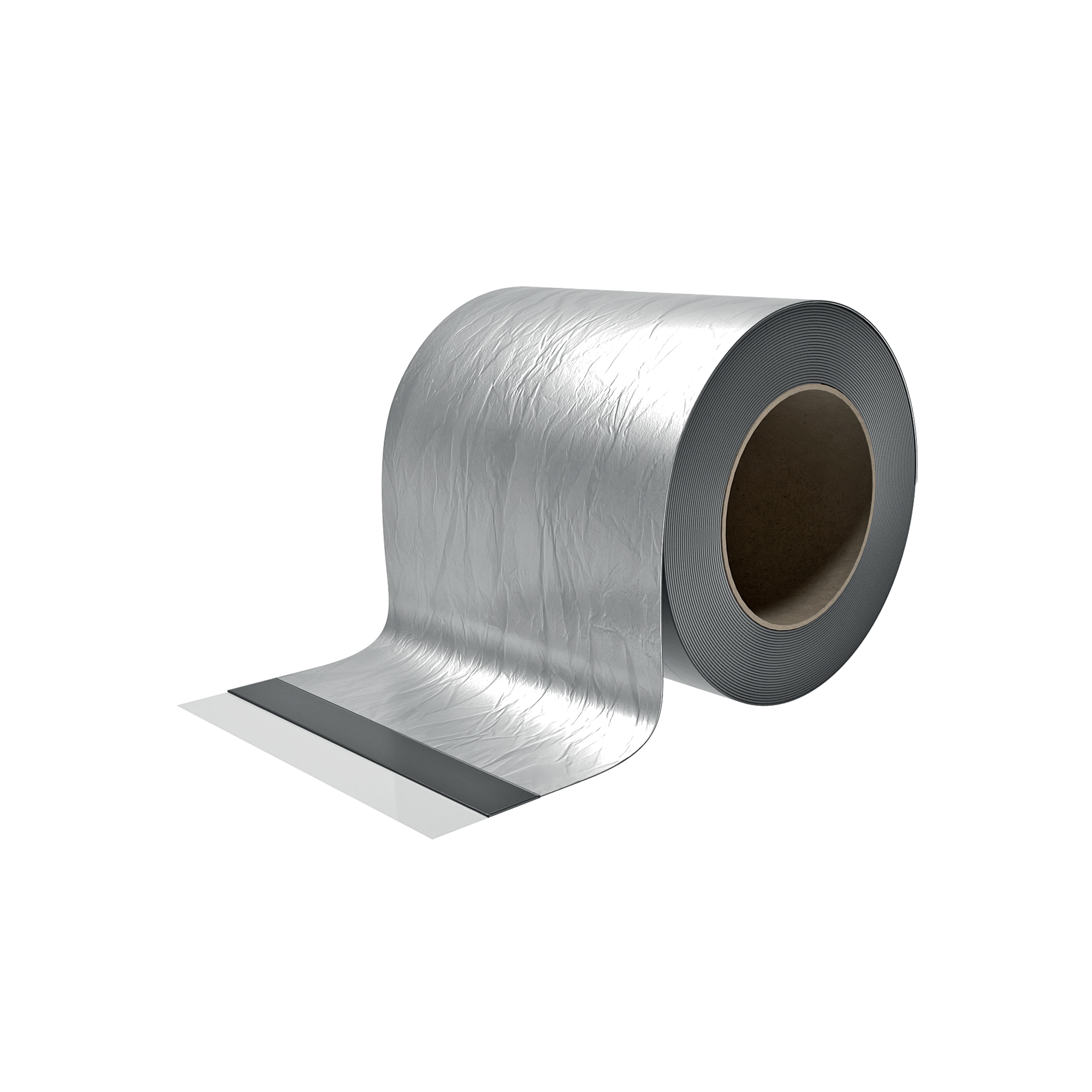

ALU BUTYL BAND, the versatile and durable reflective butyl tape
The butyl composition of reflecting adhesive tape offers excellent adhesion on the most common surfaces, even very porous ones. Its reinforced aluminium coating protects the butyl mixture, guaranteeing that the seal lasts.
Thanks to the reinforced aluminium film, it has outstanding mechanical properties and is tear-resistant.
Documents
Technical data sheets
|
|---|
ALU BUTYL BAND
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| ALUBUTYL75 | 75 | 1 | 10 | 3 | 39 | 33 | 8 |
| ALUBUTYL150 | 150 | 1 | 10 | 5.9 | 39 | 33 | 4 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Initial Tack | ASTM D2979 | 8 N | 1.8 lbf |
| Adhesion on steel at 180° | ASTM D1000 | 20 N/cm | 11.42 lbf/in |
| Vertical sliding | ISO 7390 | 0 mm | - |
| Tensile strength MD/CD | EN 12311-1 | 185 / 200 N/50mm | 21.13 / 22.84 lbf/in |
| Elongation at break point MD/CD | EN 12311-1 | 10 / 20 % | - |
| Water vapour resistance factor (μ) | UNI EN 1931 | 2720000 | - |
| Reaction to fire | EN 13501-1 | class E | - |
| Watertightness | - | compliant | - |
| UV resistance | - | permanent | - |
| Solvents | - | no | - |
| VOC emissions | EN 16000 | 30 μg/m³ | - |
| French VOC classification | ISO 16000 | A+ | - |
| Thermal resistance | - | -30 / 90 °C | -22 / 194 °F |
| Application temperature | - | 0 / 40 °C | 32 / 104 °F |
| Storage temperature (1) | - | 5 / 40 °C | 41 / 104 °F |
1. Store the product in a cool, dry place for no more than 12 months.
Composition
| SUPPORT | - |
|---|---|
| GLUE | grey adhesive butyl compound |
| RELEASE LINER | PE film |
