SELF-ADHESIVE REFLECTIVE VAPOUR BARRIER Sd > 1500 m

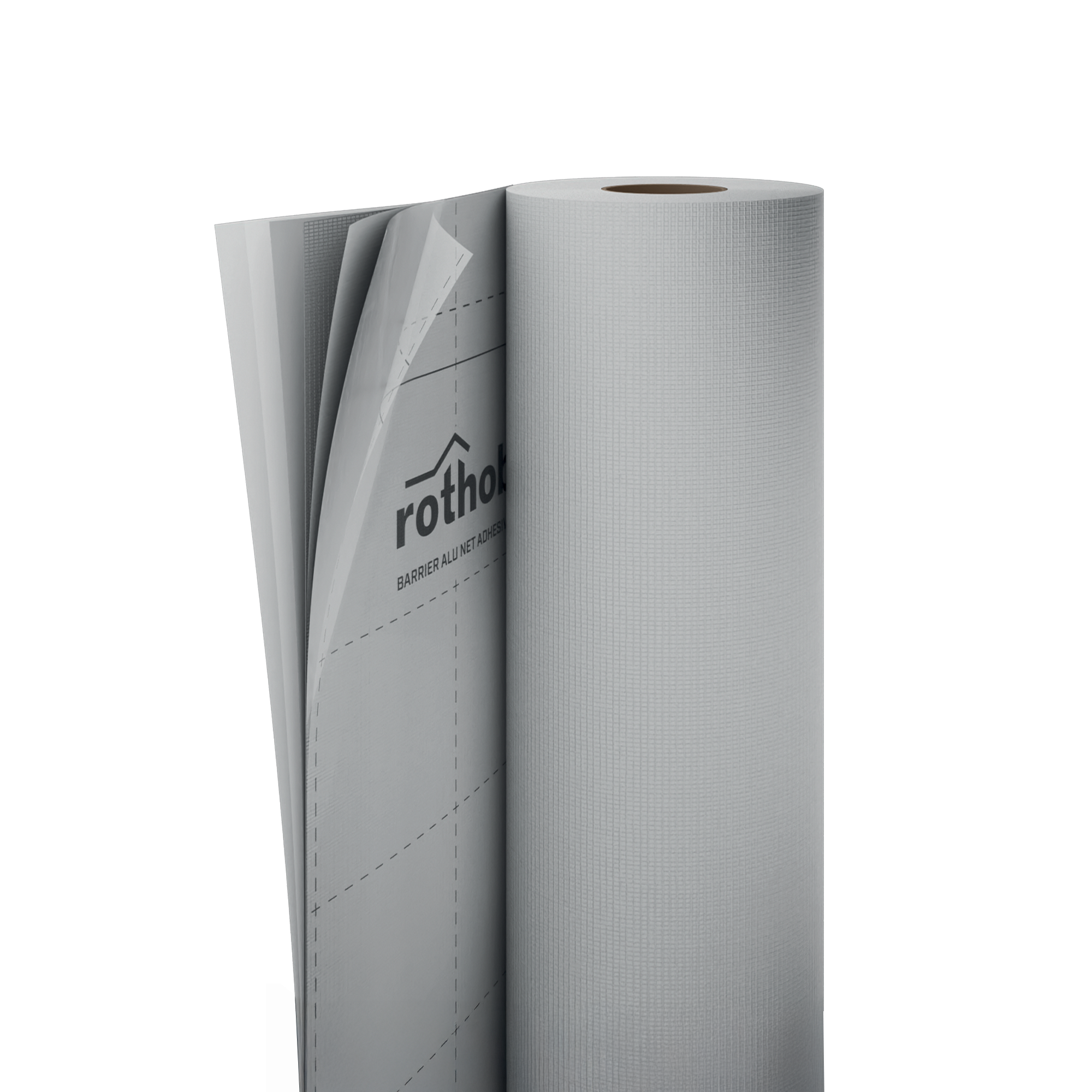

BARRIER ALU NET ADHESIVE 300

New

The reflecting BARRIER ALU NET ADHESIVE 300 vapour and radon gas barrier screen is equipped with a fully self-adhesive membrane, which allows for quick and safe installation without compromising performance.

Thanks to its composition, the membrane is not affected by mechanical stress or by staples and nails.

Composition
The top layer of this vapour barrier is a functional aluminised PE film. The middle layer consists of a PE reinforcement grid. The bottom layer is a PE film. The adhesive is a solvent-free acrylate dispersion. The separation layer is a pre-cut removable plastic film.

Performance
Water vapour transmission (Sd) = 4000 m (EN 1931 standard).

Thanks to its ability to reflect up to 70% of heat, the adhesive vapour control sheath improves the thermal performance of the construction panels.

The composition of this vapour barrier and the reinforcement grid guarantee excellent dimensional stability even under mechanical stresses.

Sealing

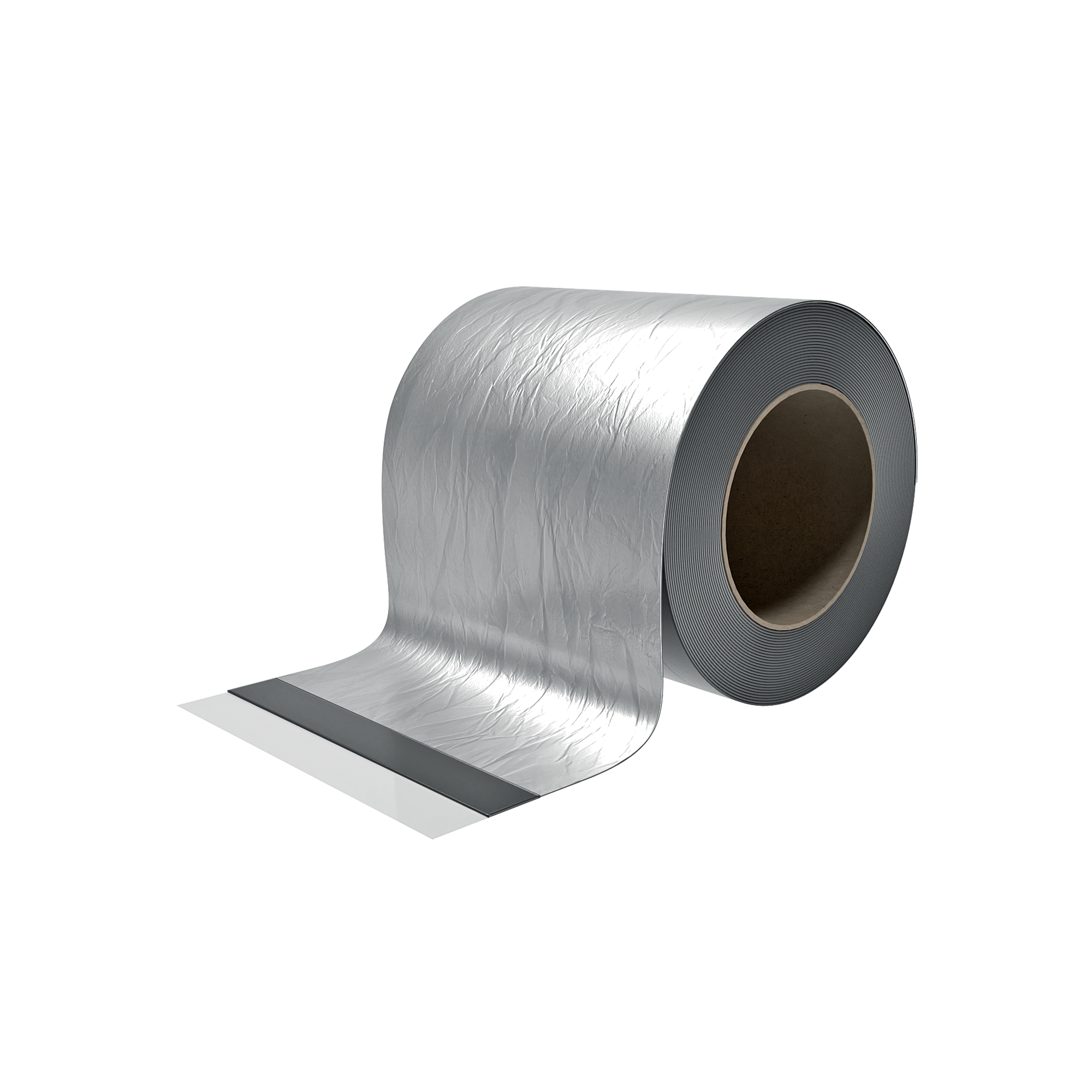

Maximum resistance to the passage of water vapour and radon gas thanks to its special composition; ideal in combination with TERRA BAND UV and ALU BUTYL BAND for the perfect sealing of joints on site. The membrane, tested according to ISO/TS 11665-13, protects the building's perimeter and foundation structures, while minimising the presence of radon and eliminating health risks.

Vapour barrier where it is put

This adhesive barrier is placed inside the walls, floor or roof of a building to reduce the transmission of moisture through the structure. Its main objective is to prevent moisture condensation inside the walls, which could cause structural damage and mould problems. The membrane is also used to prevent the passage of radon gas indoors and avoid its harmful effects on health.

The exact location of the vapour barrier may vary depending on the type of construction and project specifications, but in general, it is placed on the warm side of the structure. The warm side is closest to the interior spaces of the building, where a higher temperature is maintained than outside.

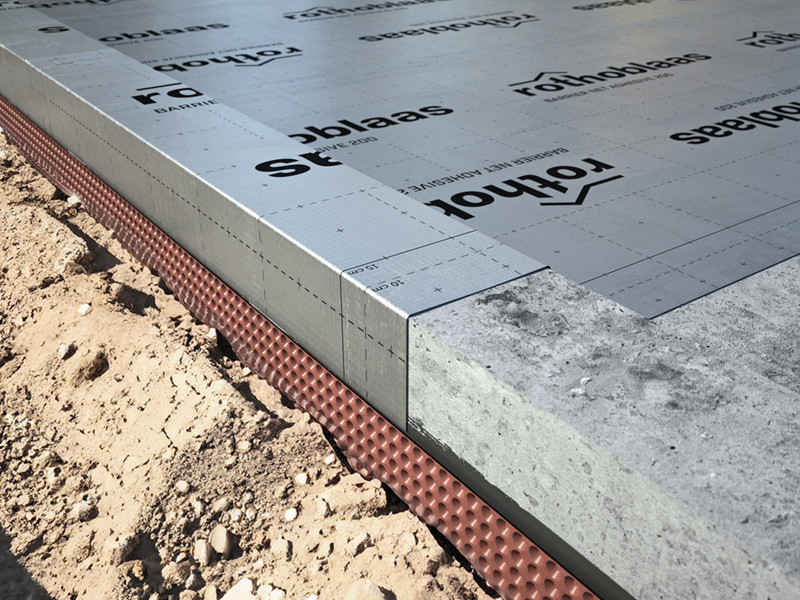

The underfloor vapour barrier generally serves to protect the screed from rising damp and condensation, and is therefore applied before the screed is constructed. In the case of foundation floors, it also offers protection against radon gas infiltration.

The vapour barrier on interior walls will be placed on the inner side of the wall, between the inner cladding (e.g. plaster or gypsum boards) and the outermost layer.

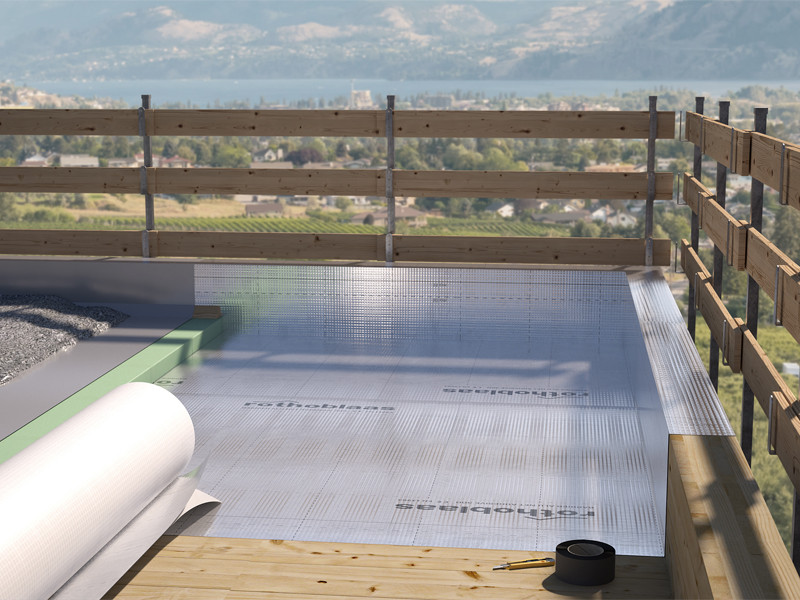

The roof vapour barrier will be placed on the inner side of the roof structure, under the insulation and close to the living spaces.

In addition, the vapour barrier must be placed so that it is continuous, avoiding cracks or breaks that could allow moisture to pass through. It is essential to follow the designer's instructions or manufacturer's specifications to ensure proper installation.

Documents

Technical data sheets
Declaration of performance (DOP) Download
File BIM.rfa
Xml-File WUFI
Recommendations for installation

BARRIER ALU NET ADHESIVE 300

CODE description liner H
[m]
L
[m]
A
[m²]
liner
[in]
H
[ft]
L
[ft]
A
[sft]
pcs./pallet
BARALUA300 BARRIER ALU NET ADHESIVE 300 150/1300 1.45 50 72.5 5.9/51.2 4' 9 1/8'' 164 780 20
BARALUAS300 BARRIER ALU NET ADHESIVE 300 STRIPE 175/175 0.35 50 17.5 6.9/6.9 - 164 188 -

Technical Data
EN 13984
national-classifications AT Önorm B3667 DS dd
national-classifications CH SIA 232 V.v.u
national-classifications DE ZVDH Dd
national-classifications FR DTU 31.2 pare-vapeur E1 Sd3 TR3
national-classifications IT UNI 11470 A/R3
national-classifications AUS AS/NZS 4200.1 Class 1
national-classifications USA IRC Class 1
EN 13505-1 B-s1, d0

Property Standard Tested Values USC Conversion
Mass per unit area EN 1849-2 300 g/m² 0.98 oz/ft²
Thickness EN 1849-2 0,15 mm 6 mil
Water vapour transmission (Sd) EN 1931 4000 m 0.001 US perm
Tensile strength MD/CD EN 12311-2 > 400 / 400 N/50mm > 46 / 46 lbf/in
Elongation MD/CD EN 12311-2 > 10 / 10 % -
Resistance to nail tearing MD/CD EN 12310-1 > 300 / 300 N > 67 / 67 lbf
Watertightness EN 1928 compliant -
Reaction to fire EN 13501-1 class B-s1,d0 -
Resistance to penetration of air EN 12114 0,02 m³/(m²·h·50Pa) 0.001 cfm/ft² at 50Pa
Resistenza al vapore d'acqua dopo invecchimento artificiale EN 1296 / EN 1931 compliant -
Thermal conductivity (λ) - ca. 0,39 W/(m·K) ca. 0.23 BTU/(h·ft·°F)
Specific heat - ca. 1700 J/(kg·K) -
Density - ca. 600 kg/m³ -
Water vapour resistance factor (μ) - 10000000 -
Reflectivity EN 15976 70 % -
UV stability - 336h (3 months) -
Exposure to weather - 4 weeks -
Equivalent thermal resistance with 50mm air gap (ε 0,025-0,88) ISO 6946 0,801 / 0,406 (m²·K)/W 4.55 / 2.31 (h·ft²·°F)/BTU
Adhesion strength on OSB at 180° after 10 minutes EN ISO 29862 4,5 N/10mm 2.6 lbf/in
Adhesion strength on OSB at 90° after 10 minutes EN ISO 29862 2 N/10mm 1.1 lbf/in
Forza di adesione a taglio del sormonto dopo 24 ore EN 12317-2 180 N/50mm 20.6 lbf/in
Forza di adesione (media) del sormonto dopo 24 ore EN 12316-2 25 N/50mm 2.9 lbf/in
Storage temperature - 5 / 25 °C 41 / 77 °F
Application temperature - -5 / 35 °C 23 / 95 °F
Solvents - no -

Composition

TOP LAYER functional aluminised PE film
middle layer PE reinforcing grid
BOTTOM LAYER PE functional film
GLUE acrylic dispersion without solvents
RELEASE LINER removable plastic film
