FLEXIBLE VENTILATED UNDER-RIDGE

STANDARD ROLL

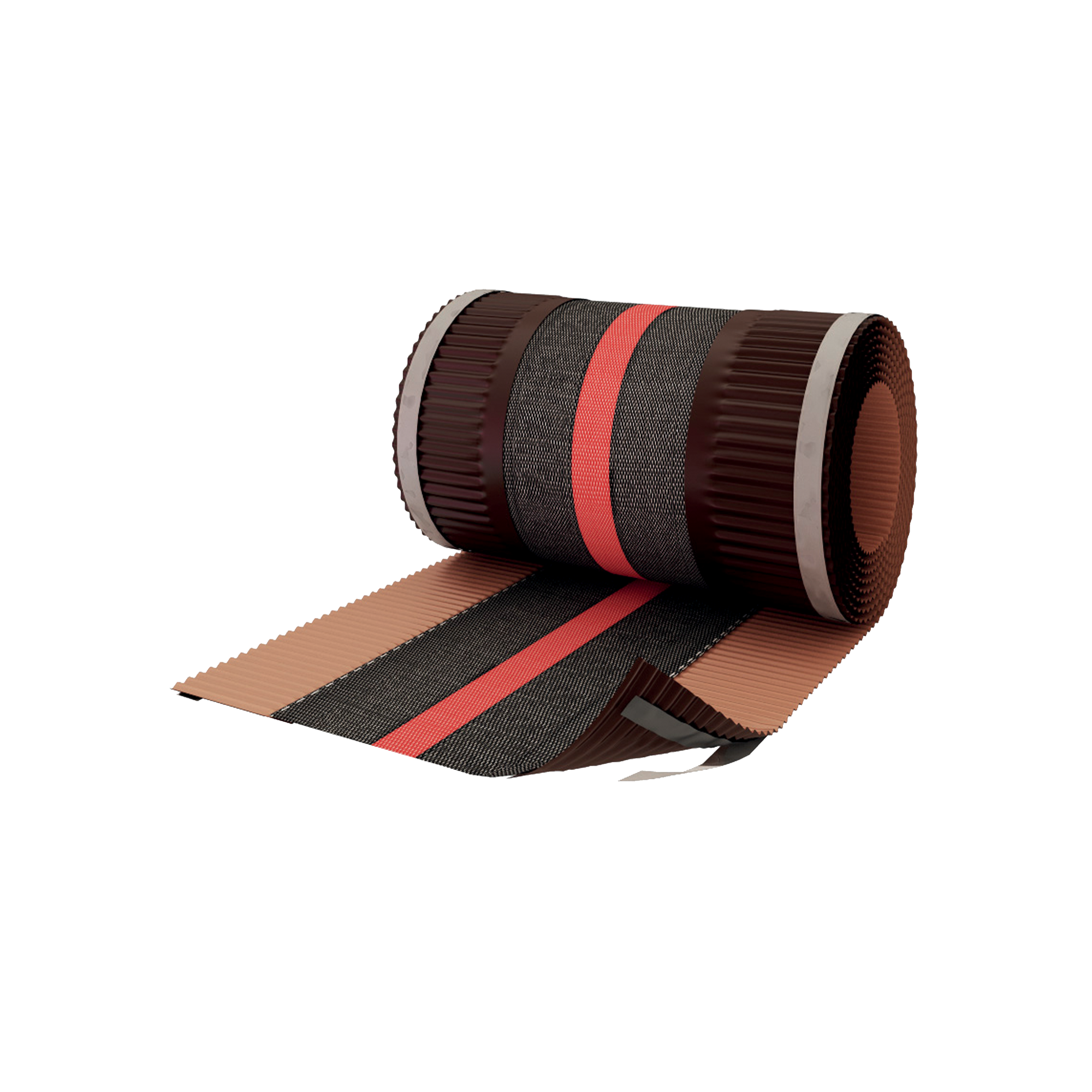

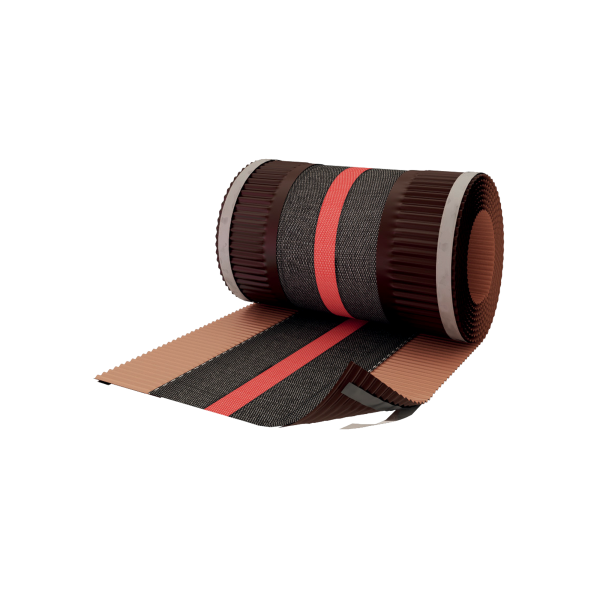

STANDARD ROLL is the flexible ventilated under-ridge that acts as a connection between the tiles and the ridge, ensuring the release of air and preventing water infiltration.

STANDARD ROLL, the flexible under-ridge for your ventilated roofs.

The polypropylene fabric ensures excellent flexibility during installation and a high aeration surface. The adhesive butyl tape offers excellent adhesion on ridge tiles and tiles. The pleated aluminium side strips and the central part made of a polypropylene fabric allow the passage of air, and therefore the roof ventilation. The flexible under-ridges are supplied rolled up, for better storage management.

Thanks to the flexible polypropylene part they can adapt to the batten-holder and thus properly cover the ventilation space. The pleated aluminium strips can be modelled to fit the various types of tiles or ridge tiles and adhere to them thanks to a 1.5 cm butyl band. Available in three different colours, brick red, brown and black.

Documents

Technical data sheets

STANDARD ROLL

CODE B
[mm]
L
[m]
B
[in]
L
[ft]
material colour RAL pcs.
STANDRED390 390 5 15.4 16 aluminium, PP, butyl BRICK RED 8004 4
STANDBRO390 390 5 15.4 16 aluminium, PP, butyl BROWN 8019 4
STANDANT390 390 5 15.4 16 aluminium, PP, butyl ANTHRACITE 7021 4
