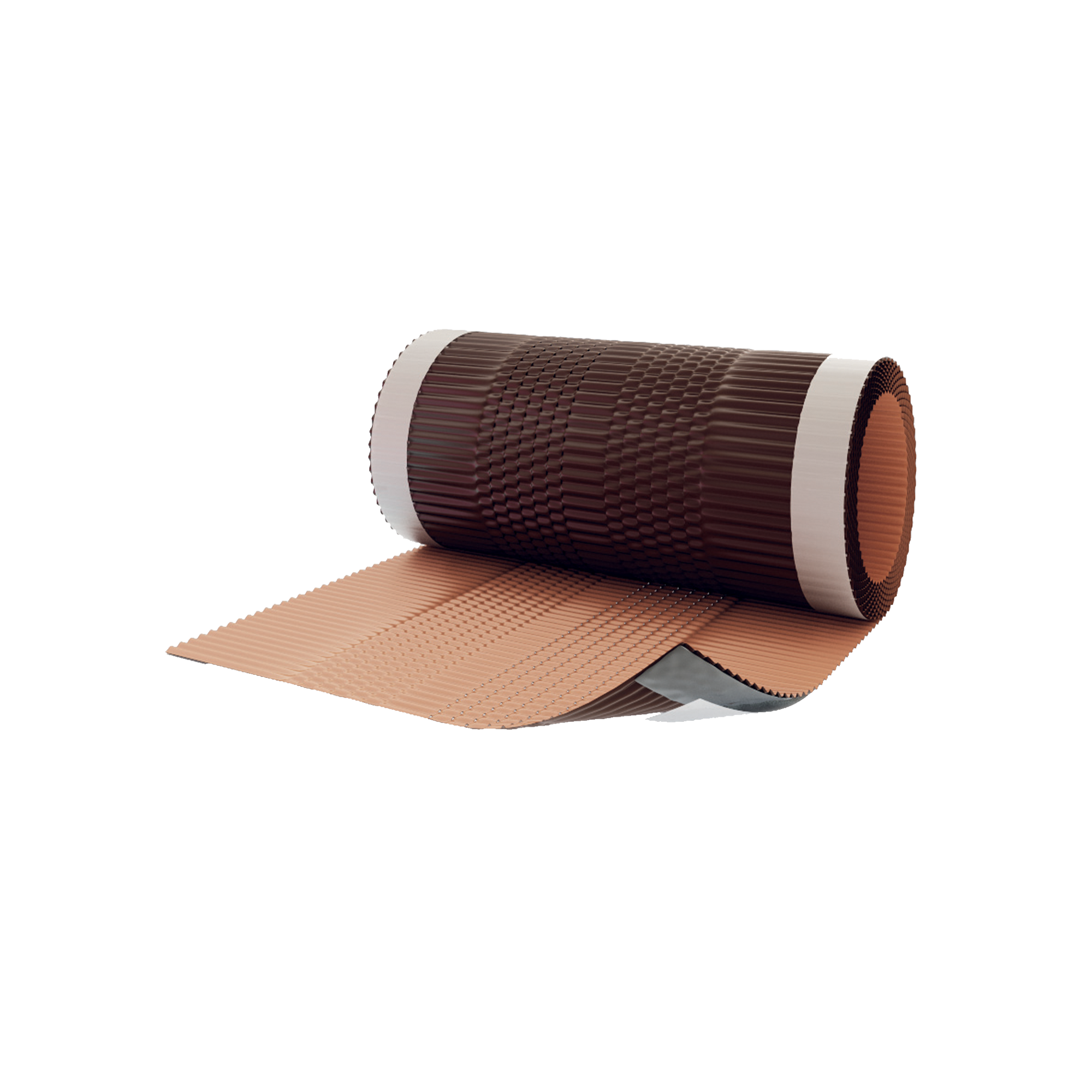

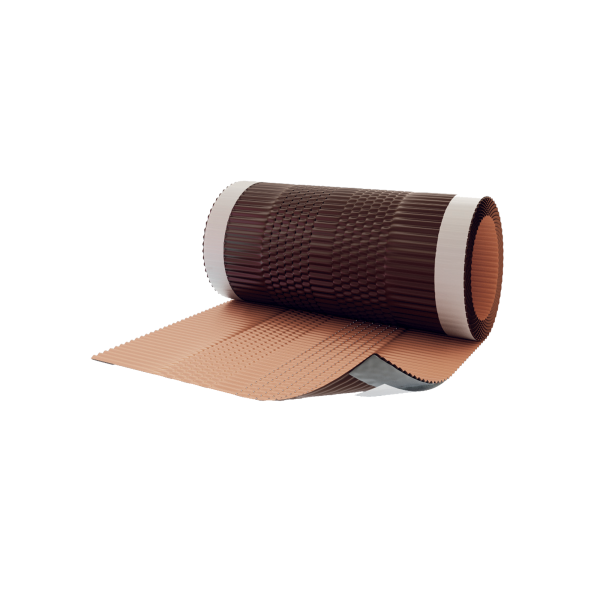

FLEXIBLE VENTILATED ALUMINIUM UNDER-RIDGE
METAL ROLL
METAL ROLL, the flexible aluminium ventilated under-ridge, acts as a connection between the tiles and the ridge, ensuring the outflow of air and preventing water infiltration into the roof.
METAL ROLL, the aluminium ventilated under-ridge that ensures stability and durability.
The METAL ROLL ventilated under-ridge is provided with holes on its side to allow ventilation of the roof, giving it greater weather resistance.
The butyl adhesive underneath measures 4 cm, ensuring a strong and immediate adhesion to the underneath tiles or ridge tiles and greater safety for the carpenter installing the under-ridge.
The choice of metal material ensures excellent UV stability even in harsh climate zones. METAL ROLL is composed of aluminium and butyl.
Documents
Technical data sheets
|
|---|
METAL ROLL
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|
| METRED400 | 400 | 5 | 15.7 | 16 | aluminium, butyl | BRICK RED | 8004 | 4 |
| METBRO400 | 400 | 5 | 15.7 | 16 | aluminium, butyl | BROWN | 8017 | 4 |
| METANT400 | 400 | 5 | 15.7 | 16 | aluminium, butyl | ANTHRACITE | 7021 | 4 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Butyl tape width | - | 40 mm | 1.6 in |
| Butyl tape adhesion property | - | > 19 N/cm | > 10.85 lbf/in |
| UV resistance (aluminium straps) | - | permanent | - |
| Application temperature | - | 5 / 30 °C | 41 / 86 °F |
| Thermal resistance | - | -30 / 90 °C | -22 / 194 °F |
| Storage temperature | - | 0 / 25 °C | 32 / 77 °F |
