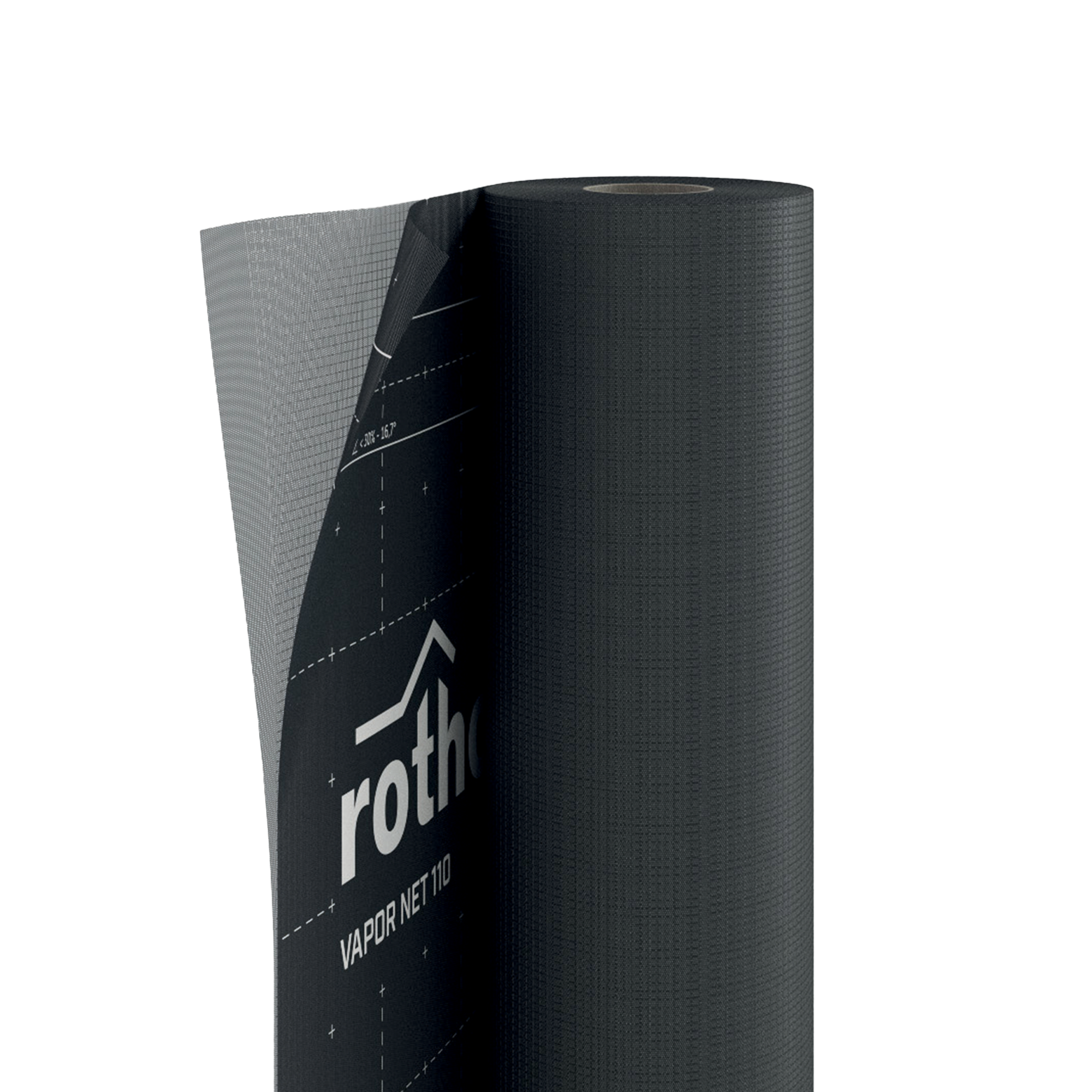

VAPOUR CONTROL MEMBRANE WITH REINFORCING GRID
VAPOR NET 110
The VAPOR NET 110 vapour control membrane regulates the passage of moisture preventing the formation of interstitial condensation within the insulation package.
VAPOR NET, the light and resistant vapour control membrane.
VAPOR NET 110 is a lightweight vapour control membrane with high mechanical performance thanks to the reinforcing grid. It can also be used on the top of beam as UV stability during construction is ensured.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
Recommendations for installation
|
VAPOR NET 110
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| V110 | VAPOR NET 110 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 36 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 110 g/m² | 0.36 oz/ft² |
| Thickness | EN 1849-2 | 0,3 mm | 12 mil |
| Water vapour transmission (Sd) | EN 1931 | 5 m | 0.699 PERM |
| Tensile strength MD/CD | EN 12311-2 | > 200 / 250 N/50mm | > 23 / 29 lb/in |
| Elongation MD/CD | EN 12311-2 | 25 / 25 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | > 170 / 170 N | > 38 / 38 lbf |
| Watertightness | EN 1928 | compliant | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Water vapour resistance - after artificial ageing | EN 1296 / EN 1931 | compliant | - |
| Water vapour resistance - in the presence of alkalis | EN 1847 / EN 12311-2 | npd | - |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 370 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 16700 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 2 months | - |
| Exposure to weather | - | 2 weeks | - |
| Water column | ISO 811 | > 250 cm | > 98.4252 in |
Specifications
Supply and installation of vapour barrier screen with reinforcing mesh, type VAPOR NET 110
CE marking according to : EN 13984
Property:
– Mass per unit area : 110
– Water vapour trasmission (Sd) (m) : 5
– Maximum tensile force MD/CD (N/50mm) : >200/250
– Elongation MD/CD (%) : 25/25
– Resistance to tearing MD/CD (N) : 170/170
– Watertightness (class) : conforme
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+80
– Reaction to fire (class) : classe E
Indicazioni di posa per: PARETE
VAPOR NET 110 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 225 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .
Indicazioni di posa per: TETTO
VAPOR NET 110 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 225.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Composition
| TOP LAYER | PE vapour control film |
|---|---|
| REINFORCING LAYER | PE reinforcing grid |
| BOTTOM LAYER | non-woven PP fabric |
