BITUMINOUS UNDERLAY CONTROL LAYER
BYTUM 400

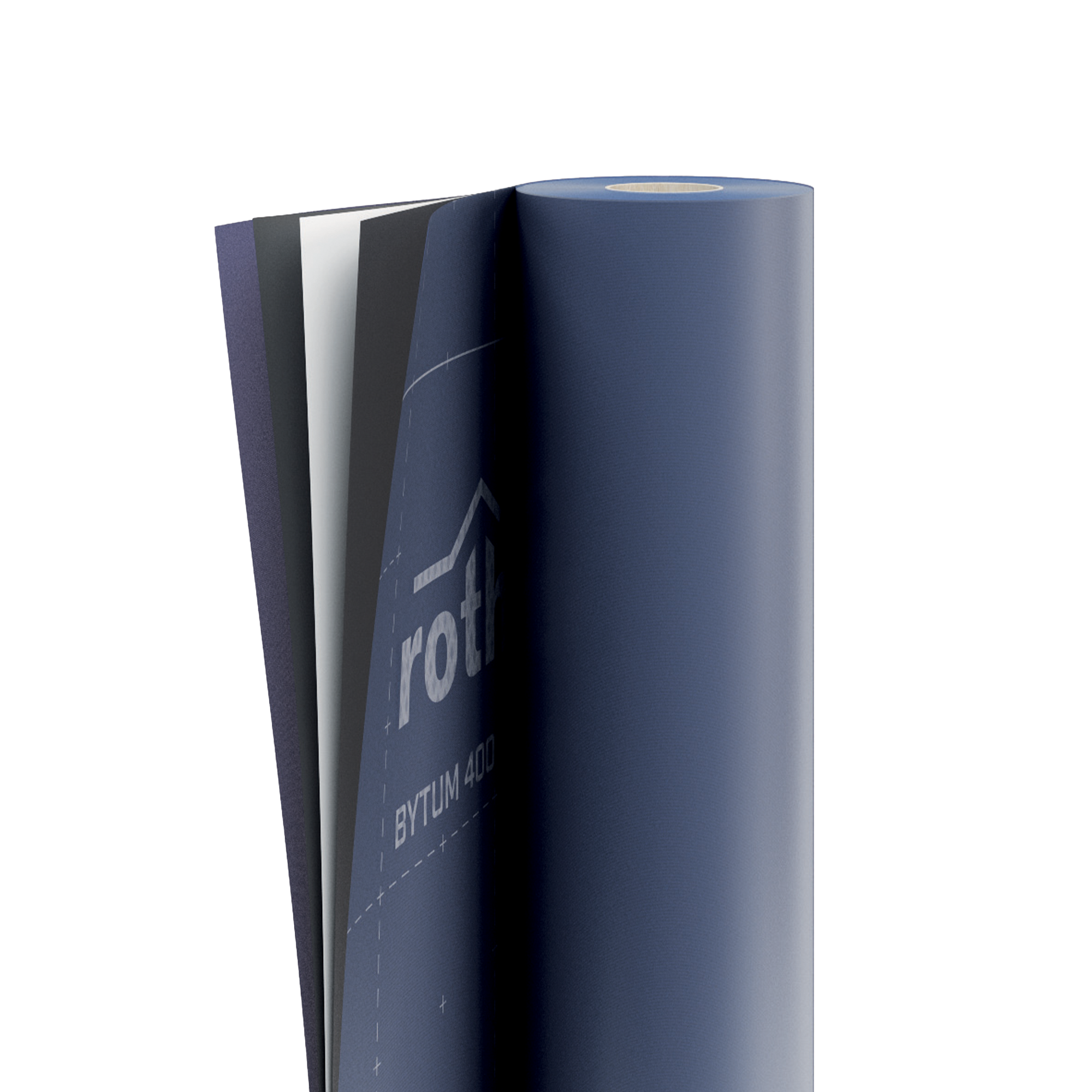

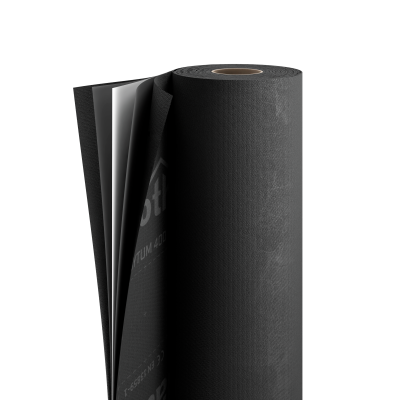

BYTUM 400 bituminous underlay control layer is the lightest bitumen-based membrane in our range. Despite its limited thickness, it ensures great mechanical strength and durability thanks to the reinforcing layer.
BYTUM 400, the bituminous underlay control layer that ensures manageability and flexibility.
This bituminous underlay control layer is designed for installation on the outer side of the roof. It can also be used as a vapour control membrane, especially on uneven surfaces such as concrete floors and similar.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
Recommendations for installation
|
BYTUM 400
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| BYT400 | BYTUM 400 | - | 1 | 50 | 50 | 3' 3 3/8'' | 164 | 538 | 20 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-1 | 400 g/m² | 1.31 oz/ft² |
| Thickness | EN 1849-2 | 0,6 mm | 24 mil |
| Water vapour transmission (Sd) | EN 1931 | 22 m | 0.159 PERM |
| Tensile strength MD/CD | EN 12311-1 | 500 / 400 N/50mm | 57 / 46 lb/in |
| Elongation MD/CD | EN 12311-1 | 45 / 50 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 200 / 200 N | 45 / 45 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -45 / 100 °C | -49 / 212 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,2 W/(m·K) | 1.39 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 120 J/(kg·K) | - |
| Density | - | ca. 600 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 36000 | - |
| UV stability | EN 13859-2 | 4 months | - |
| Exposure to weather | - | 3 weeks | - |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 450 / 350 N/50mm | 51 / 40 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 35 / 40 % | - |
| Flexibility at low temperatures | EN 1109 | -45 / °C | -49 / °F |
Specifications
Supply and installation of bituminous undertile screen, type BYTUM 400
CE marking according to : EN 13859-1
Property:
– Mass per unit area : 400
– Water vapour trasmission (Sd) (m) : 22
– Maximum tensile force MD/CD (N/50mm) : 500/400
– Elongation MD/CD (%) : 45/50
– Resistance to tearing MD/CD (N) : 200/200
– Watertightness (class) : classe W1
– VOC emission (COV) (%(class A+)) : 0
– Temperature resistance (°C) : -40/+100
– Reaction to fire (class) : classe E
Indicazioni di posa per: PARETE
BYTUM 400 is laid parallel to the dock beam or the floor if laid on a wall. The second layer must be overlapped by at least 15 centimetres. Each layer must be fixed to the substrate with a mechanical fastener. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). It is also advisable to overlap the sheets by at least 30 centimetres at the butt joints. In order to achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 229 or in the case of rough surfaces (such as rough OSB) FLEXI BAND, PRIMER SPAY, PRIMER .
Indicazioni di posa per: TETTO
BYTUM 400 is placed parallel to the eaves line, starting from the lower edge of the roof. The second layer must be overlapped by at least 10-20 centimetres to the previous one (depending on the slope of the roof), as indicated on the layout according to UNI 11470:2013. The sheet must be applied on a continuous support with a mechanical fastening device. (ex: HAMMER STAPLER, HAND STAPLER o PNEU STAPLER). Once at the top of the roof, it is advisable for the membrane to protrude beyond the ridge line by at least 30 centimetres to ensure a perfect overlap with the strips of sheet that will overlap on the other side of the roof. It is also recommended that the sheets overlap by at least 30 cm even at the end joints. To achieve correct air and water sealing, we recommend the use of ALU BAND, SEAL BAND, EASY BAND, SPEEDY BAND, SOLID BAND, FLEXY BAND, SMART BAND, PLASTER BAND, DOUBLE BAND, SUPRA BAND, BUTYL BAND, MEMBRANE GLUE, SUPERB GLUE, ECO GLUE, FIRE SEALING, FIRE FOAM, FIRE STRIPE, FRONT BAND UV 229.If there is an integrated double adhesive strip, it can replace the correct air and water sealing.
Composition
| TOP LAYER | non-woven PP fabric |
|---|---|
| compound | bituminous mixture |
| REINFORCING LAYER | PL fabric |
| compound | bituminous mixture |
| BOTTOM LAYER | non-woven PP fabric |
