COMPLETE AND INTUITIVE SOFTWARE FOR THE DESIGN OF CONNECTIONS
MyProject is the practical and reliable software for the design and the verification of metallic connections in wooden structures. A tool that simplifies your job, in just a few steps, to generate the complete notes of the calculation.Available for Windows only.
Discover all the functions of MyProject:
Calculation and verification
of the metallic connections
for structural elements
Note of the calculation
customizable with the logo
of your own studio
Thermohygrometrical checks of the opaque building
components in static
and dynamic conditions.
Constantly up to date
regulations
Declarations of performance directly accessible from
the software interface
Possibility of data export
in CAD format

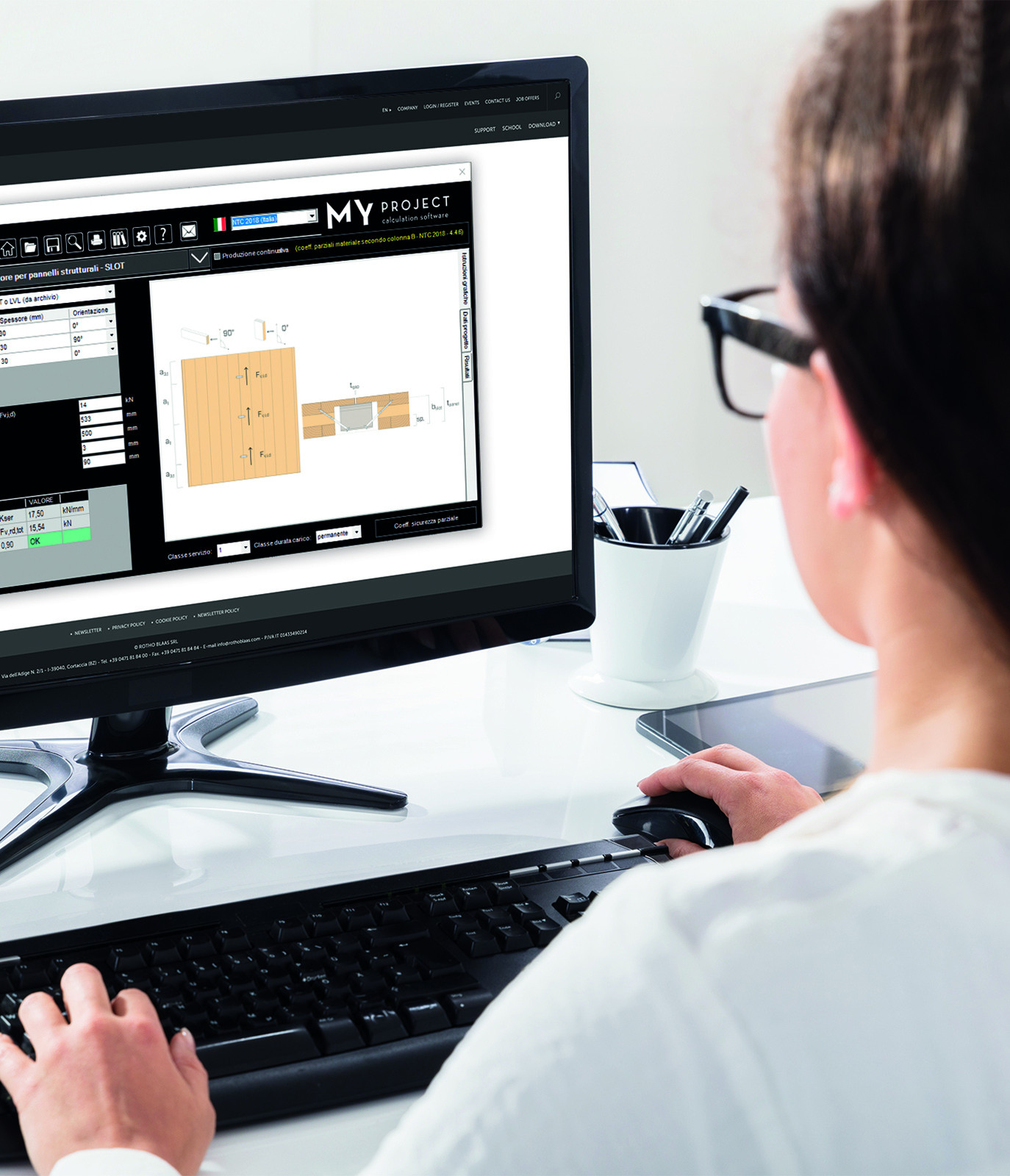

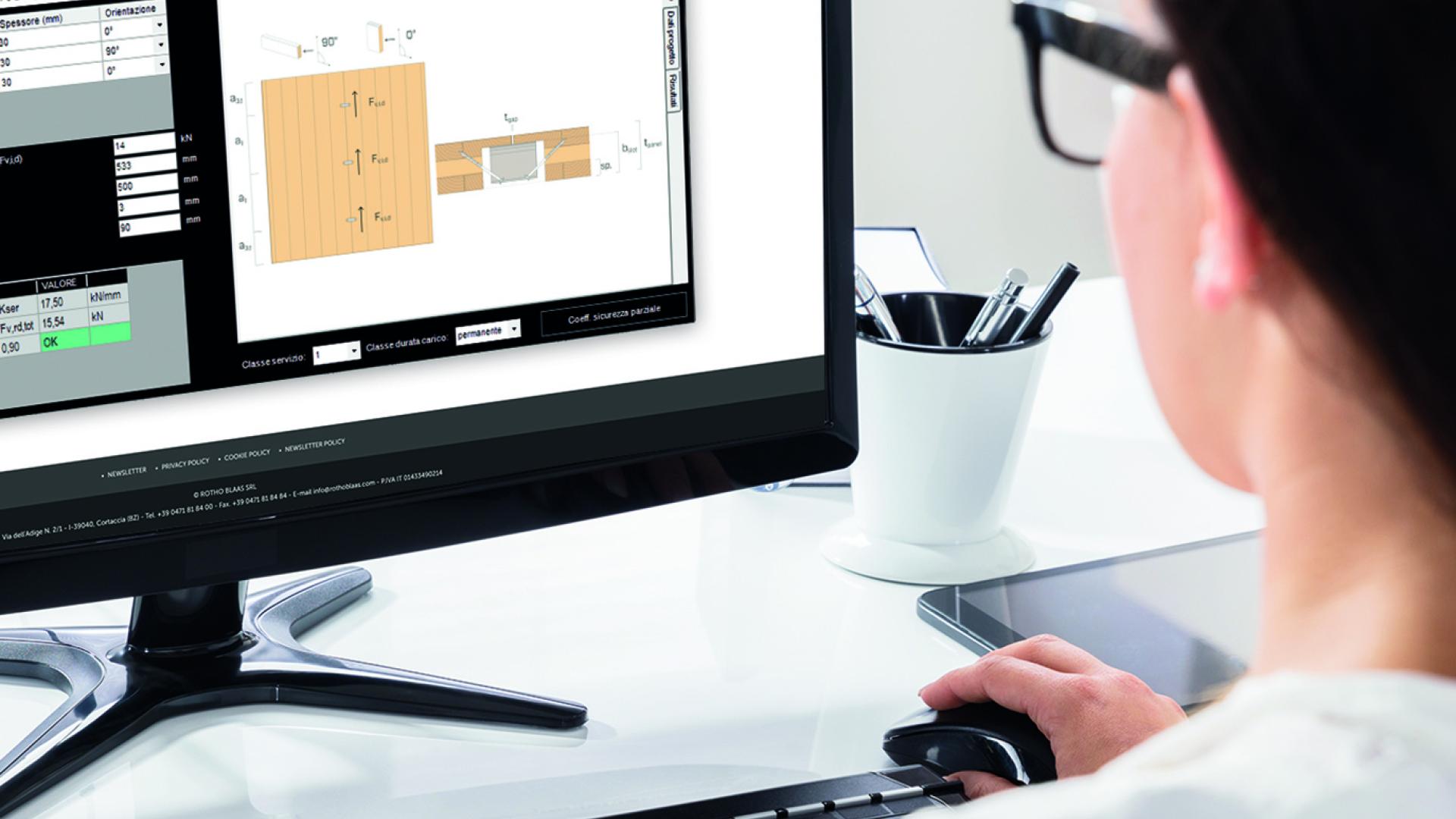

SLOT CONNECTOR FOR CLT PANELS
Calculation and verification of the shear connection between timber panels by using SLOT connector, according to ETA-19/0167. Possibility to perform verifications both of the group of connectors (wall calculation) and of the single connector. The calculation can be performed on CLT panels, laminated timber panels, LVL softwood or LVL hardwood. The preset archive allows the user to choose from the most common CLT stratigraphies.
TIMBER-TO-CONCRETE FLOOR MODULE WITH CTC CONNECTOR
Sizing and verification of timber-to-concrete composite floors. The verification is conducted in accordance with the European Technical Assessment ETA 19/0244. Verification with crossed and parallel arrangement of the connectors, at 45° and 30°, with and without planking, even in the presence of a steam brake cloth or soundproofing foil. With this module it is possible to insert several types of variable load at the same time and to export the 3d-dwg of the project.
Soundproofing: resilient profiles and lateral transmission
Designing of the soundproofing solutions within different project frequencies. Calculation of the vibration reduction index to the standard and the certifications EN ISO 12354 ETA-23/0061 for XYLOFON and ETA-23/0193 for PIANO. Calculation of the resilient profile (XYLOFON, PIANO and ALADIN STRIPE) and ist projection on a printable plan to allow correct installation. Possibility for calculation of both timber frame and CLT structures. Import of .dxf files with automatic retrievement of wall and dimension Data. Print of complete technical computation report and performance graphs.
Dear user, considering the importance of the update package foreseen by the new MyProject 5.30 release, it is necessary to download the software by clicking the button “Download MyProject” and reinstall MyProject. For a better functioning it is advisable to uninstall the previous version.
Dear user, considering the importance of the update package foreseen by the new MyProject 5.30 release, it is necessary to download the software by clicking the button “Download MyProject” and reinstall MyProject. For a better functioning it is advisable to uninstall the previous version.
ALU CONCEALED BRACKETS
Calculation and verification of shear connections between structural timber elements using concealed ALU brackets. The module contains all sizes of ALUMINI, ALUMIDI and ALUMAXI with STA smooth dowels and SBD self-drilling dowels with various fastening configurations. Possibility of using two different methods of calculation (according to ETA 09/0361 and experimental model).
X-ONE connection for CLT panels
Design and verification of connections between CLT panel and X-ONE connector. The verification is according to the European Technical Assessment ETA 15/0632 for actions in all directions according to the connection's resistance domain.
It is possible to insert many different deriving forces i.e. from numerical modelling with simultaneous verification of the load conditions.
It is possible to insert many different deriving forces i.e. from numerical modelling with simultaneous verification of the load conditions.
Connections primary-secondary beams with VGS and VGZ connectors
Calculation and verification of timber to timber connection with fully threaded screws inserted in a cross configuration or parallel inclination, according to construction requirements. Possibility of different schemes with modification of secondary beam inclination in horizontal or vertical direction.
Structural reinforcements with fully threaded VGS and VGZ connectors
Calculation and verification of structural reinforcement realized with fully threaded screws with cylindrical head or countersunk head. Typical application regard reinforcements of tension parallel to the grain in notched beam, reinforcements of grain perpendicular compression in lateral and intermediate support and reinforcement of perpendicular tension in hanged loads.
Fixing of continuous insulation using DGZ connector
Dimensioning and verification of twin-threaded DGZ connector for the fastening of continuous insulation on roofs. Design either with rigid or soft insulation, creating a database of customized computations.
Shear connections using
HBS - HBS PLATE – TBS screws
Calculation and verification of shear connections using screws for wood to wood, steel to wood and wood to panel connections. Single and double slanted connections, with possibility of customizing geometry and material variety.

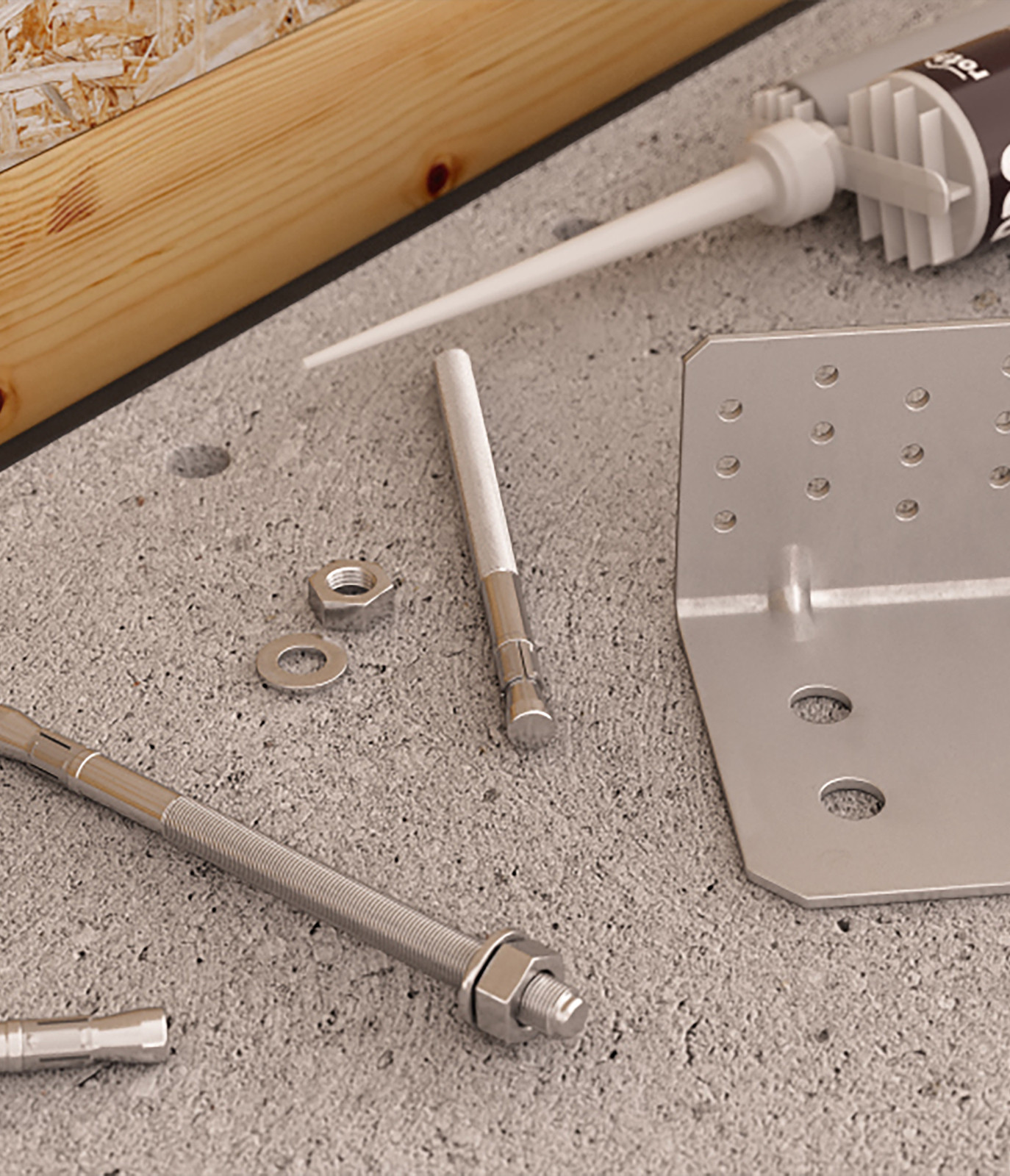

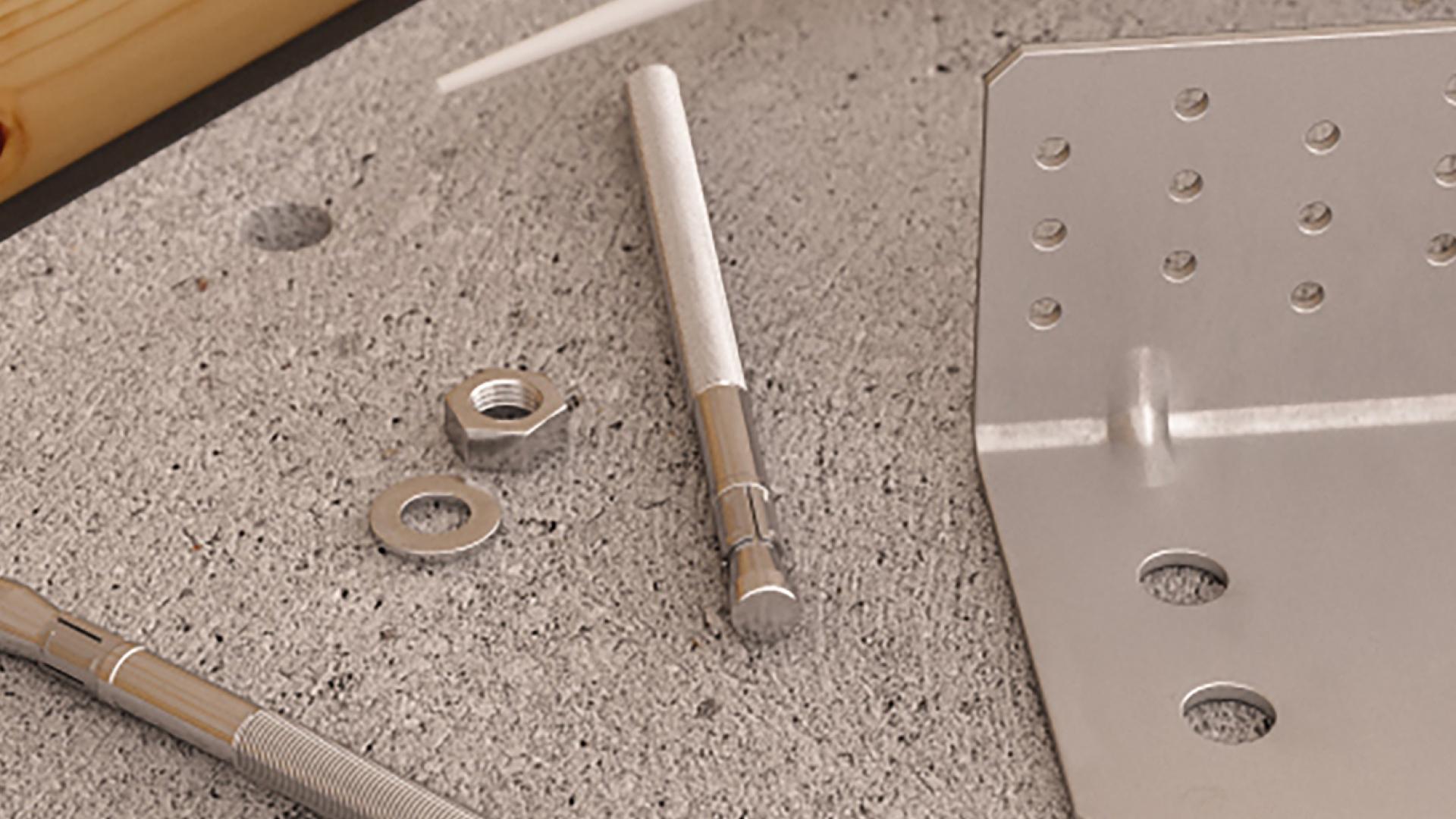

CERTIFIED MECHANICAL AND CHEMICAL ANCHORS ON CONCRETE SLABS
Calculation and verification of certified mechanical and chemical anchors on concrete slabs. Standard or customised-geometry configurations with filter for anchor selection
according to various criteria. Earthquake and fire design options.
MYPROJECT
Choose the application that best suits you and simplify your life right away! Download the MyProject package for connections calculation, thermal, hygrometric and acoustic performance analysis of your timber structure or select the package for concrete anchors calculation and verification.
TIMBER CONNECTIONS
SOUNDPROOFING
DOWNLOAD MYPROJECT
CONCRETE ANCHORS
DOWNLOAD CONCRETE ANCHORS
